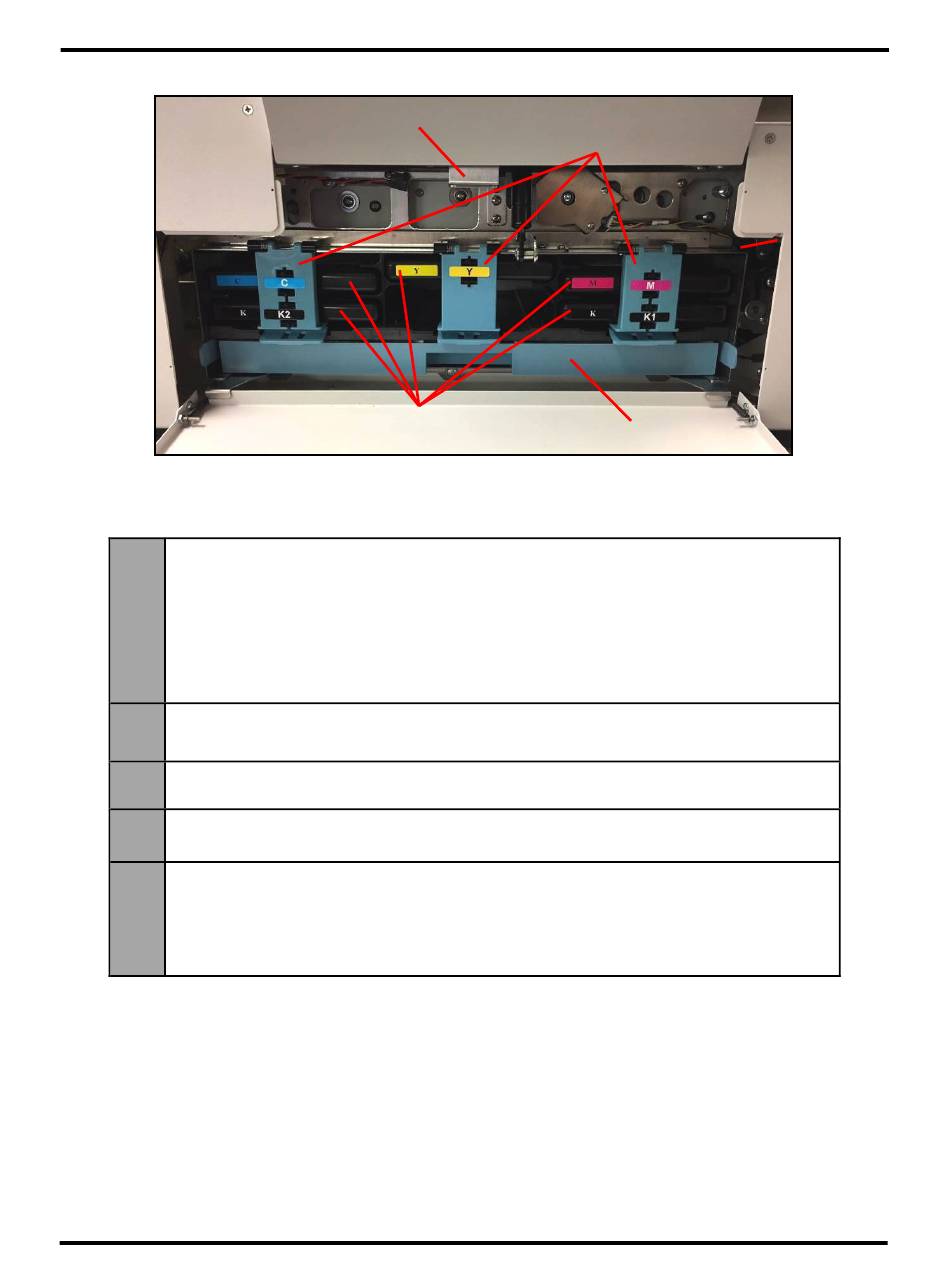

Ink Tank View (Behind Ink Tank Door)

Clamshell Latch – Used to release and open Clamshell to clear media jams,
install/exchange Print Platen & Drip Tray and cleaning. Pull Latch out to release.
Open Clamshell slowly to allow "Sump Pump" to remove waste ink from Service
Station Tray and avoid ink spills.
1.
WARNING! To reduce the chance of ink spills from the Service Station Tray, avoid
opening the Clamshell when there is printer activity, such as "wiper transfer",
occurring.
Ink Tank Securing Latches – Used to hold Ink Tanks securely into slots.
2.
NOTE: Make sure both sides, at bottom part of latch, are engaged.
Ink Door Switch – When Ink Tank Door is opened, Switch shuts down
3.
communication between Printer and Ink Tanks for safe removal and replacement.
Ink Tanks – Printer has 5 Ink Tanks: Cyan (C), Yellow (Y), Magenta (M), Black (K1),
4.
Black (K2). Each Ink Tank is inserted into its appropriate color slot.
Waste Ink Tray – Catches and absorbs waste ink produced by the system.
This tray is filled with absorbent material.
5.
This tray must be replaced when it becomes saturated. Please inspect routinely.
The tabs located at left and right sides of the tray secure tray to frame. Please be
sure tabs "click" into frame, to secure the tray's position.
1
4
GETTING ACQUAINTED
2
3
5
