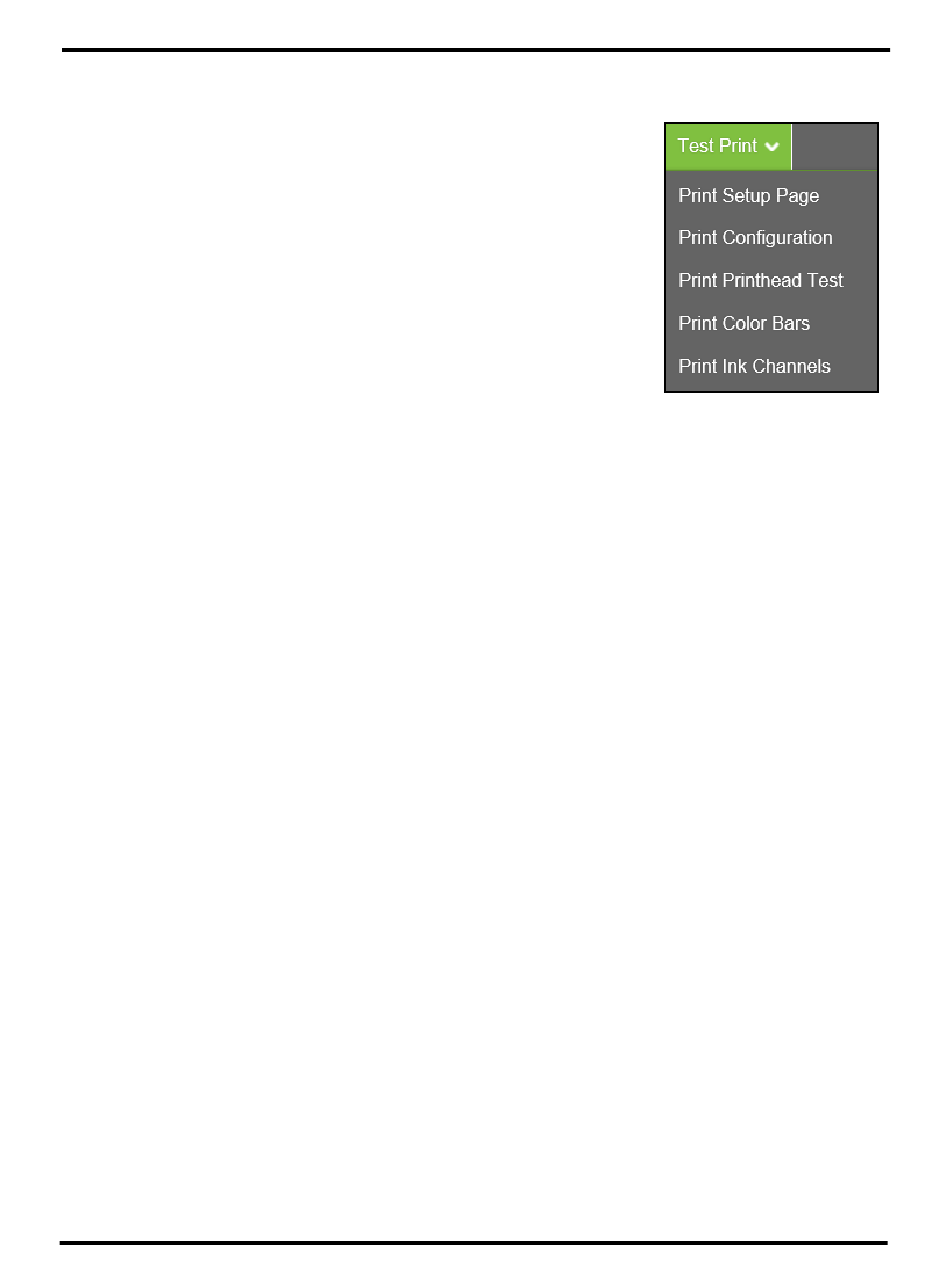

Test Print Drop-Down

Use to printout Printer Configuration values and Test Patterns.
Test patterns are useful for troubleshoot printhead and print quality issues.
Each printout displays information about the Printer.
Print Setup Page – Prints a pattern that can be used to check printing
alignments with the page. Designed for use with Letter and A4 sized media.
Print Configuration – Prints current Printer configuration including Firmware
Version, Network Connection, Printer Serial Number and more.
Print Printhead Test – Prints color bands, text and patterns. Use to check
condition of inkjet nozzles in Printhead.
Print Color Bars – Prints a series of 7 color bars, showing mixed ink colors.
Print Ink Channels – Prints a separate block from each individual ink channel (CMYKK), showing how well
each channel is working.
