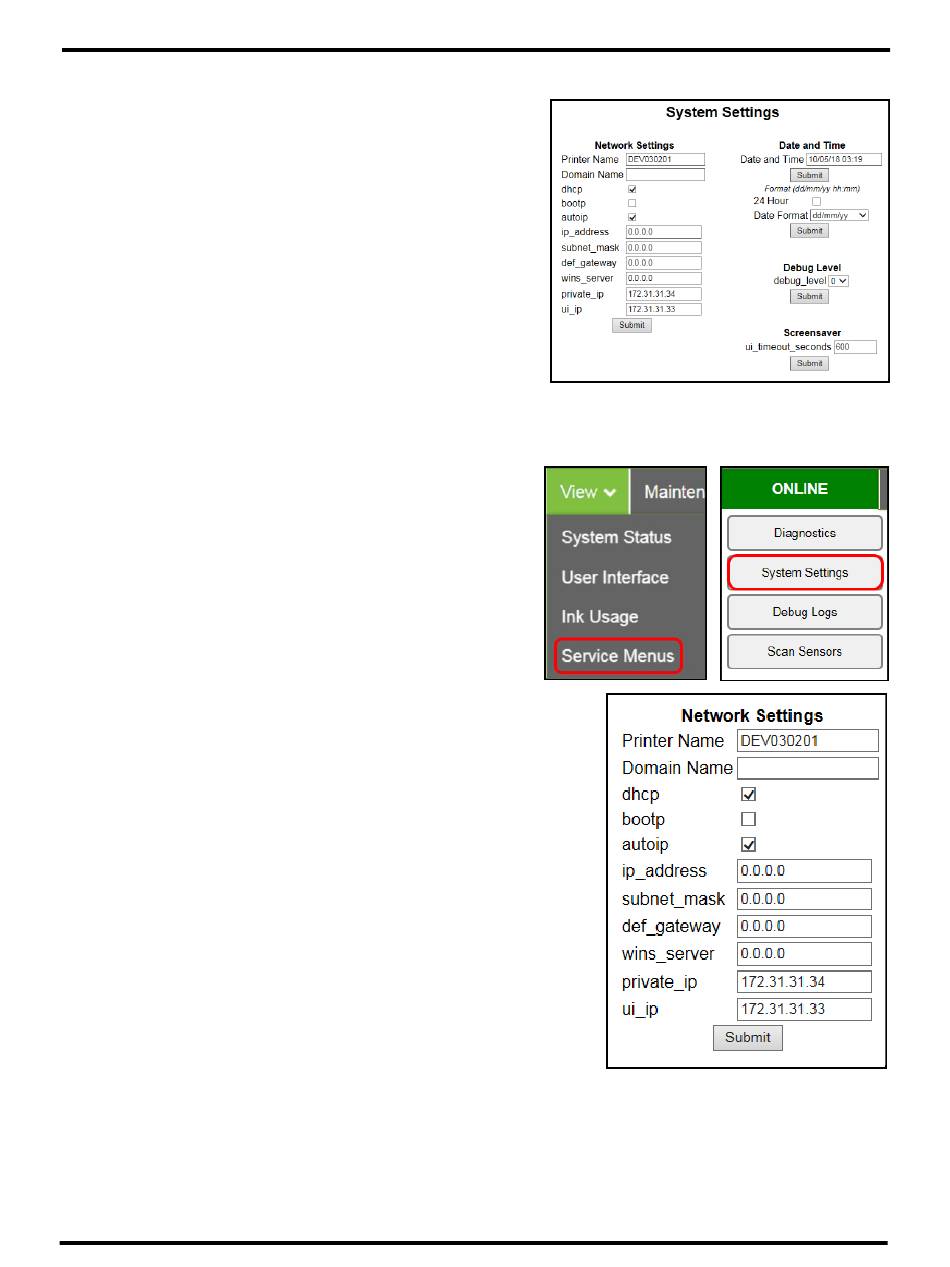

System Settings
Allows you to change the Printer's network settings, set the Date
and Time, set the Debug Log Level and set the Screensaver
timeout.
Network Settings – Permits you to view, enter or change the
Printer's internal and external network settings.
NOTE: Please use the Printer's Touchscreen features, when
initially connecting the Printer to a network.
See section titled "Connecting Printer via Network (Ethernet
Connection)".
To view or change Printer Network Settings:
NOTE: This process assumes that you have already loaded the printer driver and have already established a working
Toolbox connection to the printer.
1. From the Toolbox, select "View" drop-down menu,
click "Service Menus" and then click "System
Settings".
2. "System Settings" screen opens. Use Network Settings
to view or change settings for your network.
WARNING: If you are currently connected to the
printer via a network connection, you may lose Toolbox
and printer driver communication if you make changes
to your current Network Settings.
NOTE: If manually changing the ip_address, make sure the
"dhcp" and "autoip" boxes are unchecked. (Default is
checked.)
3. Enter changes in the appropriate boxes. Click "Submit".
NOTICE: SNMP configuration features are located in the
Toolbox, Commands Help Menus. These features can be
accessed by a technician via the Toolbox, Service Menus
private_ip and ui_ip – These IP addresses are for the Printer's
internal communication, between the MPCA (main board) and Printer
Touchscreen (UI). They don't commonly need to be manually
changed, but they may change automatically. These values may vary,
but the last two characters (shown as 34 and 33, in this example)
should always be one digit off from each-other, as shown here.
