SECTION 1 – Getting Acquainted
1
5

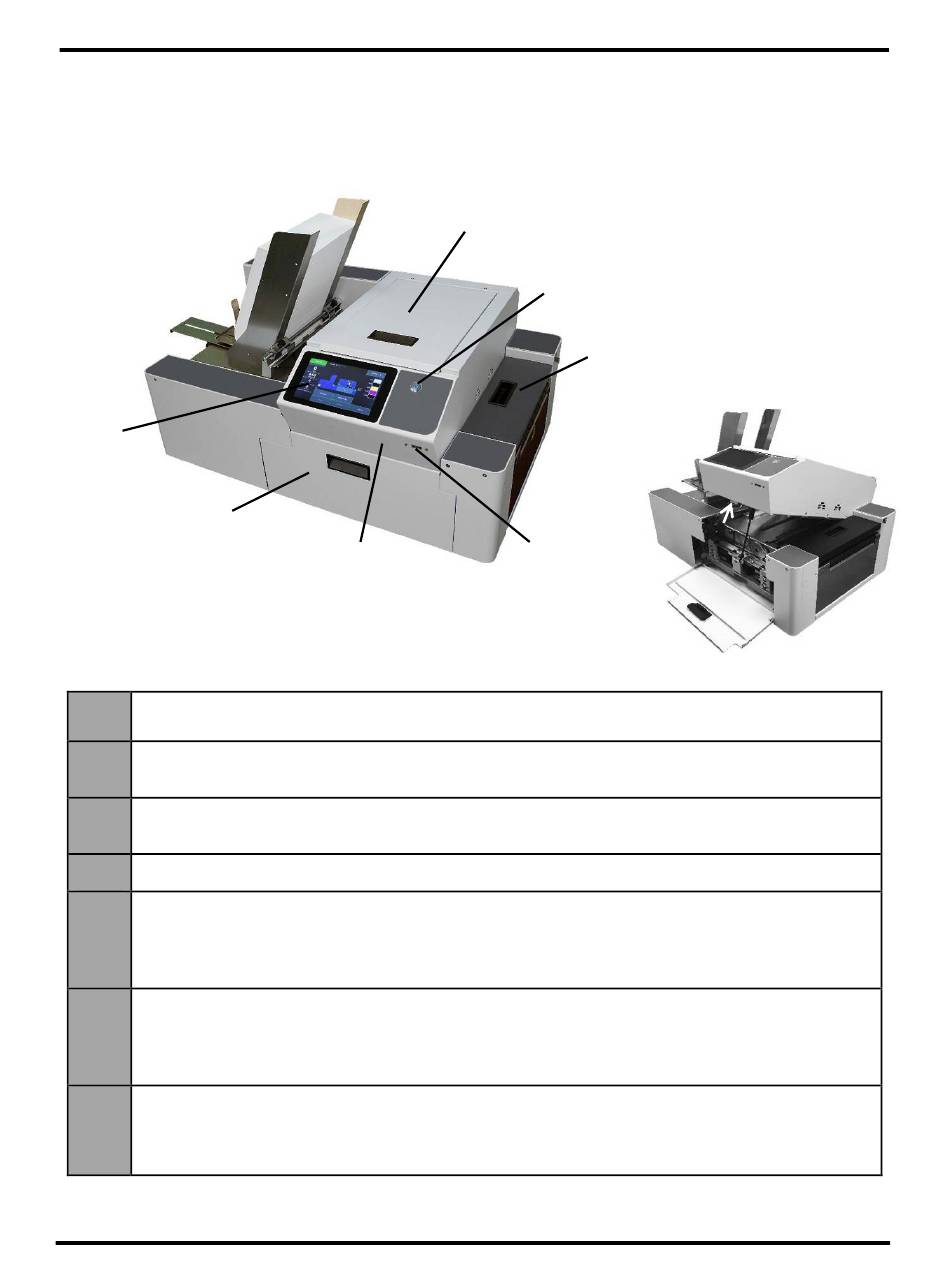

Front View

Touchscreen Display (Control Panel) – Displays Menu and information about Printer
1.
status. You can set Printer features and control Printer functions from this display.
Printhead Door – Provides access to Print Engine, Printhead and Service Station.
2.
NOTE: All doors must remain shut when printer is busy (printing, performing maintenance).
Soft-Power Button – Used to power-up and power-down the Print Engine.
3.
NOTE: Button illuminates with blue light when Print Engine is powered-up (ON).
4.
Exit Transport Cover – Opens to provide access to media path and Media Transport Belts.
Ink Tank Door – Provides access to Ink Tanks, Waste Ink Tray and Clamshell Latch.
Opening Ink Tank Door disconnects Printer communication to Ink Tanks, allowing for safe Ink
5.
Tank installation/replacement.
NOTE: All doors must remain shut when printer is busy (printing, performing maintenance).
Clamshell – Upper section of Print Engine containing Printhead and Service Station.
Raises up/down based on Media Thickness setting.
6.
To open Clamshell (hinged at rear) and gain access to media path/print area, open Ink Tank
Door [5] and release (pull out on) Clamshell Latch [A].
Backup/Transfer Port – Used to backup system/debug log files and stored jobs to a USB
Flash Drive. See "Appendix C – Backup/Transfer Port" for more details.
7.
CAUTION: Do NOT connect devices, other than USB Flash Drives, to this port.
6
6
NOTE: This port may NOT be present on all printers.
2
3
4
7
