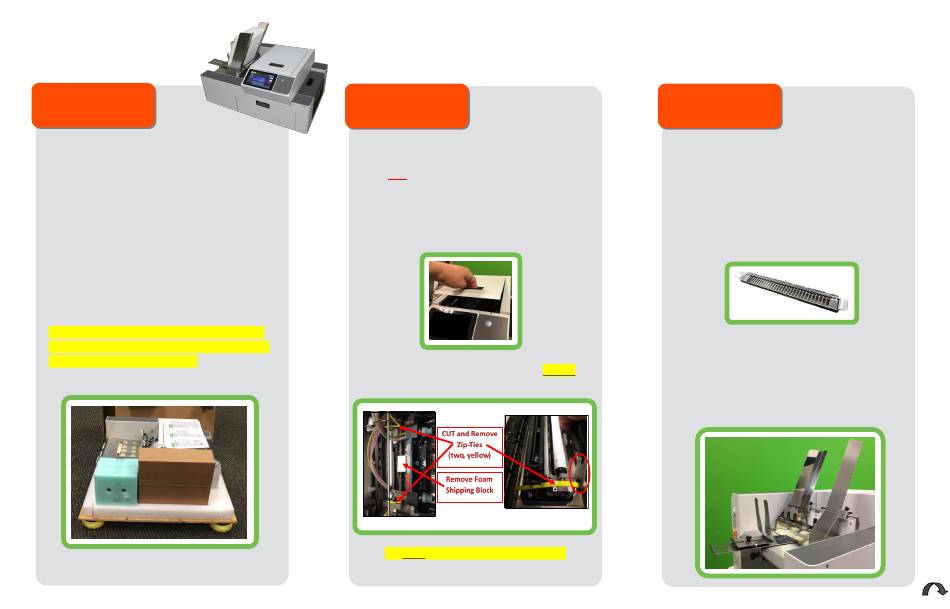

quadient MACH-6 Quick Start Manual

For additional details watch the
"MACH 6 Installation Video", located
on USB Flash Drive included with
Printer, or refer to the User Guide.
STEP 1
Unpack Your MACH 6:
Remove the printer and accessories from
the packaging. Store the packing material
in a safe place.
Set the printer onto a stable, level surface.
Use a carpenter's level to make any
adjustments to the work table where the
MACH 6 will be operating. Level is very
important to the proper operation of the
printer. Do not move the MACH 6 while the
power is on.
It is critical that you read and understand
the MACH 6 User Guide. Improper use can
result in damage to the unit.
MACH 6
STEP 2
Remove Shipping Materials:
WARNING:
DO NOT PLUG-IN OR POWER-UP THE PRINTER
UNTIL ALL SHIPPING MATERILAS HAVE BEEN
REMOVED! DAMAGE TO PRINTER MAY RESULT!
Please remove shipping materials as shown
below.
Open the Printhead Door.
Remove the Foam Shipping Block.
Carefully cut, and remove the two yellow
zip-ties as shown below.
Do NOT cut black or white zip-ties.
QUICK START GUIDE
STEP 3
Install Print Platen and Drip
Tray Assembly & Media Guides:
Locate the Print Platens (two) and Drip
Tray in the accessory box (wrapped in
foam). See User Guide for selecting the
appropriate Platen and installing the Print
Platen and Drip Tray Assembly into printer.
Print Platen and
Drip Tray Assembly
Locate the Media Side Guides and Rear
Media Support Guide/Sled in the accessory
box (wrapped in foam). See User Guide for
installation instructions.
When complete, your machine should look
like this:
REV 3/30/20
OVER
