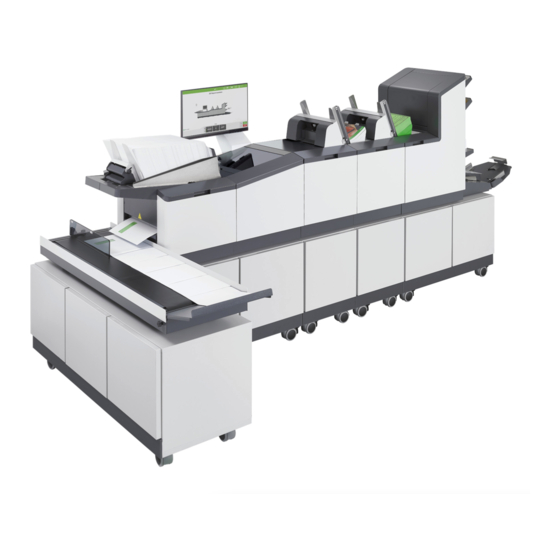

quadient DS-200iQ User Manual
  1. Manuals
  2. Brands
  3. quadient Manuals
  4. Printer
  5. DS-200iQ
  6. User manual

quadient DS-200iQ User Manual

Hide thumbs Also See for DS-200iQ:
Table of Contents

Advertisement

Quick Links

Download this manual
DS-200iQ / DS-600iQ
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-200iQ and is the answer not in the manual?

Questions and answers

Related Manuals for quadient DS-200iQ

Summary of Contents for quadient DS-200iQ

  • Page 1 DS-200iQ / DS-600iQ USER GUIDE...
  • Page 2 DS-200iQ / DS-600iQ WARNING Improper installation, use, adjustment, alteration, service and or maintenance may result in property damage and or serious bodily injury! Ensure all safety information detailed in section 1.3 Safety including it’s sub-sections are read and understood in it’s...

  • Page 3: Table Of Contents

    DS-200iQ / DS-600iQ TABLE OF CONTENTS SAFETY STANDARDS COMPLIANCE 3 INTEGRATED MAIL OPERATING SYSTEM (IMOS) About this Manual IMOS Control Panel Standards and Compliance Menu Screen Safety 3.2.1 Libraries 1.3.1 Safety Symbols 3.2.1.1 OMR Definitions Library 1.3.2 General Safety Notes 3.2.1.2 BCR Definitions Library 1.3.3 Power Connections Safety Notes 3.2.1.3...
  • Page 4 DS-200iQ / DS-600iQ Run Screen 4.2.2 Creating a New Envelope 3.4.1 Testing the Mailset 4.2.3 Document Mailset 3.4.1.1 Present at Exit 4.2.3.1 Advanced Document Mailset Settings 3.4.1.2 Finger Sequence 4.2.4 Creating a New Document 3.4.1.3 Envelope Stop Position 4.2.5 Enclosure Mailset 3.4.1.4...
  • Page 5 DS-200iQ / DS-600iQ 5.1.3.3 Reading Orientations OPERATOR MAINTENANCE 5.1.3.4 Non-Reading Orientations Cleaning the Machine 5.1.3.5 Accumulator Side Guide Adjustment 6.1.1 Cleaning Sensors 5.1.3.6 Flex Folder Separator Adjustment 6.1.1.1 Cleaning Insert Head Sensors 5.1.3.7 Curled Paper Guide Adjustment 6.1.1.2 Cleaning Versatile Feeder Sensors 5.1.3.8...
  • Page 6 DS-200iQ / DS-600iQ TROUBLESHOOTING GUIDE General Troubleshooting Insert Head Troubleshooting Versatile Feeder Troubleshooting Flex Folder Troubleshooting Output Conveyor Troubleshooting Output Sorter/Turner Troubleshooting TECHNICAL SPECIFICATIONS 8.1 General Specifications 8.2 Insert Head Specifications 8.2.1 Cycling Speeds 8.2.2 Pack Details 8.2.3 Envelope Details 8.3 Versatile Feeder Specifications 8.3.1 Enclosure Details 8.3.2...

  • Page 7: Safety Standards Compliance

    DS-200iQ / DS-600iQ SAFETY STANDARDS COMPLIANCE USER GUIDE...

  • Page 8: About This Manual

    DS-200iQ / DS-600iQ SAFETY STANDARDS COMPLIANCE ABOUT THIS MANUAL Applicable Directives Low Voltage Directive 2014/35/EU Disclaimer Electromagnetic Compatibility Directive 2014/30/EU The data contained herein is the most current known to the manufacturer at the time The product presented in this guide meets the requirements of applicable directives.

  • Page 9: Safety Symbols

    DS-200iQ / DS-600iQ SAFETY STANDARDS COMPLIANCE 1.3.1 SAFETY SYMBOLS 1.3.2 GENERAL SAFETY NOTES Description Symbol Protective Earth (Ground) WARNING Identifies terminals intended for connection to external conductors, or protective earth (ground) electrodes, protecting against electric Keep the work area around the machine clean. A minimum one metre of clear ▪...

  • Page 10: Power Connections Safety Notes

    DS-200iQ / DS-600iQ SAFETY STANDARDS COMPLIANCE 1.3.3 POWER CONNECTIONS SAFETY NOTES 1.3.4 EMERGENCY SAFETY NOTES WARNING WARNING Ensure any isolation or disconnect device, including the mains power supply Opening any cover of the machine will trigger the interlock safety cut-off ▪ ▪ remain unobstructed at all times. switch and stop the machine operation (including all moving parts).

  • Page 11: Introduction

    DS-200iQ / DS-600iQ INTRODUCTION USER GUIDE...

  • Page 12: General Overview

    Output Conveyor FUNCTIONAL OVERVIEW ▪ Output Sorter ▪ The function of the DS-200iQ / DS-600iQ machine is to fold forms to ‘C’, ‘Z’, ‘V’ or Turner ▪ double forward fold, either separately, in fixed multiples or in varying groups. Enclosures such as inserts, reply envelopes etc. may be added. OVERVIEW OF COMPONENTS Folded forms and enclosures are collated in the collation area in the Insert Head before insertion into the envelope.

  • Page 13: Insert Head Components

    DS-200iQ / DS-600iQ INTRODUCTION 2.3.1 INSERT HEAD COMPONENTS Flex folder uses a 3-plate folding mechanism, and 2D/BCR/ OMR reading is fitted as standard, though a no-read option is also available on some variants. Insert Head collates all documents in a pocket before insertion, feeds the envelope, Feed Pod inserts the pack and seals the flap. 1 or 2 Feed pods may be fitted to the Flex Folder depending on the configuration, and Envelope Feeder each pod consists of either of the following with mark-reading available as an option: Envelope Feeder holds up to 800 envelopes (DL). It is fitted with a sensing conveyor...

  • Page 14: Output Sorter Components

    Output Conveyor (2 x units) ▪ ▪ Output Sorter (2 x units, sorter catch tray) Turner ▪ Franking Machine ▪ For further information regarding the possible configurations for the DS-200iQ / DS-600iQ, please contact your local Manufacturer Customer Support representative. QTL-RND-GEN-00000100-A-00 Figure 2.2 – DS-200iQ / DS-600iQ example configuration USER GUIDE REV 00 JUN 2020...

  • Page 15: Powering On The System

    DS-200iQ / DS-600iQ INTRODUCTION POWERING ON THE SYSTEM Then press the front I/O power button located at the front bottom left panel of the Insert Head as shown in Figure 2.4. Both the machine and PC must be switched on independent of each other.

  • Page 16: Integrated Mail Operating System (Imos)

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) USER GUIDE...
  • Page 17 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) IMOS CONTROL PANEL Jobs screen Selecting or editing an existing job ▪ The IMOS control panel as shown in Figure 3.1 is the main user interface between the Defining and creating a new job operator and the machine. ▪ Run screen Running or stopping a job ▪...
  • Page 18 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) MENU SCREEN 3.2.1 LIBRARIES To access the Menu screen, press the ‘Menu’ button located in the top right of the Libraries list the available existing OMR, BCR, Documents, Envelopes, and Postal control panel as indicated in Figure 3.2.

  • Page 19: Omr Definitions Library

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.2.2 ADMIN SETTINGS - SUPERVISOR Both Supervisors and Engineers can copy, edit and create Admin settings can only be accessed by a Supervisor, by selecting ‘Admin’ under new definitions from within the Library. Services within the Menu screen as shown in Figure 3.4. 3.2.1.1 OMR DEFINITIONS LIBRARY For further information on OMR definitions see section 8.7 Reading Specifications.

  • Page 20: System Security Level

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.2.2.1 SYSTEM SECURITY LEVEL Table 3.1 shows the security level options available, and an example list of certain operations and features available to each associated security level. System Security allows security levels to be set for the machine.

  • Page 21: Archive Data

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.2.2.2 ARCHIVE DATA 3.2.2.3 LANGUAGES Archive Data allows the backup of IMOS system files (Libraries, Users, and Jobs data) Languages allows the choice of which language IMOS will display when operating or in case of lost or corrupt critical IMOS files due to pc failure or malfunction. servicing the machine. Select ‘Archive Data’ located under ‘Admin’ services within the Menu screen and To set a language, select an available language from the list, and press ‘Ok’ once browse for a folder in the dialog box, press ‘Ok’...

  • Page 22: 3.2.2.4 Machine Id

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.2.2.4 MACHINE ID 3.2.2.5 MACHINE NAME Machine Id allows the user to assign a Id for the machine using the on-screen keypad Machine Name allows the user to assign a name for the machine using the on-screen as shown in Figure 3.8, press ‘Ok’...

  • Page 23: Generate Licence File

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.2.2.6 GENERATE LICENCE FILE 3.2.2.7 LICENCED FEATURES Generate Licence File allows the generation of a blank Licence_IMOS.ini file to be used Licenced Features displays the current features licenced and unlicenced (if applicable) for upgrading by your local support service team, and will erase any existing licences on the machine as shown in Figure 3.11.

  • Page 24: Imported Files

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.2.2.8 IMPORTED FILES 3.2.3 SERVICE SETTINGS - SUPERVISOR Imported Files displays details of Custom Flex_barcodes imported into IMOS as shown Supervisor Service settings can be accessed by selecting ‘Service’ under Services in Figure 3.12. within the Menu screen as shown in Figure 3.13.

  • Page 25: Diagnostics

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.2.3.1 DIAGNOSTICS TYPICAL SENSOR VALUES Diagnostics allows the Supervisor to access analog sensor calibration. Generally, readings are best used as a comparison guide for like sensors from one machine to another, however, if a sensor has failed, the readings are likely to be very Analog sensors are those that respond over a graduated range, unlike digital sensors low or zero.
  • Page 26 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) Insert Head Analog sensors Versatile Feeder Analog sensors Figure 3.16 shows typical analog sensor values for the Insert Head. Figure 3.17 shows typical analog sensor values for the Versatile Feeder. QTL-RND-SCR-00000128-A-00 QTL-RND-SCR-00000165-A-00 Figure 3.16 – Insert Head typical analog sensor values Figure 3.17 –...
  • Page 27 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) Flex Folder Analog sensors Output Sorter Analog sensors Figure 3.18 shows typical analog sensor values for the Flex Folder. Figure 3.19 shows typical analog sensor values for the Output Sorter. QTL-RND-SCR-00000166-A-00 QTL-RND-SCR-00000167-A-00 Figure 3.18 – Flex Folder typical analog sensor values Figure 3.19 –...

  • Page 28: System Options

    DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) Turner Analog sensors 3.2.3.2 SYSTEM OPTIONS Figure 3.20 shows typical analog sensor values for the Turner. System Options allows the following system options to be set: Disable Machine Idle Powerdown ▪ ▪ If ‘No’ is selected, the machine and PC will be set to automatically power-down after 60 minutes of idling (no activity), and when in an auto ended state.
  • Page 29 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) Press ‘Ok’ once complete as shown in Figure 3.21. JOBS SCREEN The Jobs screen shown in Figure 3.22 is displayed once logged into IMOS, and may be accessed anytime by pressing the ‘Jobs’ button in the IMOS control panel.
  • Page 30 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) RUN SCREEN Single Cycle ‘Single Cycle’ button allows various adjustments to be made before beginning ▪ The Run screen is displayed once a job has been accepted in the Jobs screen, or by the job, see section 3.4.1 Testing the Mailset...
  • Page 31 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.4.1 TESTING THE MAILSET 3.4.1.1 PRESENT AT EXIT Options for testing the mailset as shown in Figure 3.24 may be accessed by pressing Present at Exit allows the operator to check the contents of envelopes to determine if the ‘Single Cycle’...
  • Page 32 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.4.1.2 FINGER SEQUENCE Make any adjustments as necessary by following the procedure below: Open the operator side cover to view the fingers. After pressing ‘Finger Sequence’, the machine will feed an envelope into position. Select the required Finger Sequence from the list of options as shown in Figure This allows the operator to set the order of the insertion fingers in the envelope as 3.27 and press ‘Ok’.
  • Page 33 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.4.1.3 ENVELOPE STOP POSITION 3.4.1.4 FINGER ADJUST After pressing ‘Envelope stop position’, the machine will feed an envelope into position. After pressing ‘Finger Adjust’, the machine will feed an envelope into position. This allows the operator to adjust the stop position of the envelope at insert as This allows the operator to adjust the width of the outer fingers as demonstrated demonstrated in Figure 3.28.
  • Page 34 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.4.2 JOB COUNT SETTINGS 3.4.3 BATCH COUNT SETTINGS Pressing the ‘Job Count’ button from the Run screen will display the Job Count settings Pressing the ‘Batch Count’ button from the Run screen will display the Batch Count as shown in Figure 3.30.
  • Page 35 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) NOTE: HELP MENU Current batch count will display until the job has been changed, even if the The Help menu can be accessed anytime by pressing the ‘Help’ drop-down button in machine has been switched off and back on again. the IMOS control panel indicated in Figure 3.32.
  • Page 36 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.5.1 REMOTE ASSISTANT USERS SCREEN Remote Assistant allows the machine’s PC to be remotely accessed by an engineer The Users screen is accessed by pressing the ‘Users’ button in the IMOS control panel using TeamViewer. This can help with diagnosing problems.
  • Page 37 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.6.1 SWITCHING USERS 3.6.2 USER ACCESS RIGHTS To switch users, select the user from the users list and press ‘Log On’, located in the Users are allocated different levels of access rights to allow or disallow certain bottom right corner of the Users screen. functions, e.g. change settings, libraries, hardware/unit setup etc. Access rights available to a specific user will depend on the user level. Three levels of access rights...
  • Page 38 Press ‘F3’ to access the following F3 Key functions as shown in Figure 3.37. Not used Not used Table 3.3 – F-Key Functions QTL-RND-SCR-00000118-A-00 NOTE: Figure 3.37 – F3 Key functions F10, F11, and F12 Keys are currently not used for any function on DS-200iQ and DS-600iQ machines. USER GUIDE REV 00 JUN 2020...
  • Page 39 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) Capture Trace - Allows the retrieval of firmware trace data for selected units 3.7.5 F5 KEY ▪ as shown in Figure 3.38. Press ‘F5’ to access the following Engineer and Factory F5 Key functions as shown in Figure 3.40. QTL-RND-SCR-00000121-A-00 Figure 3.40 – F5 Key functions 3.7.6 F6 KEY Press ‘F6’ to access the following Diagnostics F6 Key functions used by Factory R&D and Field Technicians as shown in Figure 3.41.
  • Page 40 DS-200iQ / DS-600iQ INTEGRATED MAIL OPERATING SYSTEM (IMOS) 3.7.7 F7 KEY 3.7.9 F9 KEY Press ‘F7’ to view Output log information of mail pieces as they reach the output of the Press ‘F9’ to access Debug information used by Factory R&D and Field Technicians as machine as shown in Figure 3.42.
  • Page 41 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS USER GUIDE...
  • Page 42 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS CREATING A JOB DEFINE MAILSET Before creating a job, settings must first be defined for the following: To begin defining the mailset, press ‘New’ in the Jobs screen as shown in Figure 4.1. Define Mailset (Envelope, Document, and Enclosures) ▪ ▪ Place Mailset Fold Settings ▪ Mail Sorting ▪ Output Placement ▪...
  • Page 43 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS 4.2.1 ENVELOPE MAILSET If required, press ‘Settings’ to define the envelope usage (Seal mode) as shown in Figure 4.3. To select an existing envelope for the mailset, press ‘Select’ to open the Envelopes selection box, then select the required envelope from the list and press ‘OK’...
  • Page 44 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS 4.2.1.1 ADVANCED ENVELOPE MAILSET SETTINGS 4.2.2 CREATING A NEW ENVELOPE Press ‘Edit Advanced’ to set the order of documents inserted into the To create a new envelope for the mailset, press ‘Select’ to open the Envelopes envelope as shown in Figure 4.4.
  • Page 45 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS When entering the paper weight (gsm), the true weight (g) will automatically be calculated by default as shown in Figure 4.6. Users with appropriate access rights can also create Envelopes (following the same procedures), from the Libraries within the Menu Screen.
  • Page 46 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS If required, press ‘Settings’ to define the document usage (Form count, Cascading, and Hopper feed mode) as shown in Figure 4.8. QTL-RND-SCR-00000160-A-00 Figure 4.9 – Cascading options The selected number (e.g. ‘up to 2, 3, or 4’) will depend upon machine configuration, and also what document/enclosure types have been selected for each hopper.
  • Page 47 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS 4.2.3.1 ADVANCED DOCUMENT MAILSET SETTINGS Thickness Doubles Change default setting only if needed. Press ‘Edit Advanced’ as shown in Figure 4.10 for advanced document settings. ▪ ▪ On (auto) On (optical) ▪ On (mechanical) ▪...
  • Page 48 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS 4.2.4 CREATING A NEW DOCUMENT If using BCR or OMR marked documents, select a ‘BCR definition’ or ‘OMR definition’ from the list as required. To create a new document for the mailset, press ‘Select’ to open the NOTE: Documents selection box, then press ‘New’...
  • Page 49 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS NOTE: 4.2.5 ENCLOSURE MAILSET Label positions specified in ‘Region of Interest’ are relative to the top left- To select an existing enclosure for the mailset, press ‘Select’ to choose an hand corner of the document ‘Print orientation’ (i.e. Portrait or Landscape) enclosure type from the library, then select the required document from the selected within the New-Document screen.
  • Page 50 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS PLACE MAILSET FOLD SETTINGS Only define the placement of documents if you want to assign documents/enclosures The machine automatically selects the optimum fold type. to specific hoppers. To change the fold type, deselect ‘Auto Fold Type’ and select the required To define a document placement, select the document to move, then select type from the list as shown in Figure 4.15.
  • Page 51 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS To see the fold plate lengths, press ‘Advanced’ as shown in Figure 4.16. 4.4.1 ADVANCED FOLD SETTINGS Press ‘Edit Advanced’ as shown in Figure 4.17 for advanced fold settings. QTL-RND-SCR-00000077-A-00 Figure 4.16 – Adjust fold settings QTL-RND-SCR-00000078-A-00 Figure 4.17 –...
  • Page 52 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS Maximum Fold (Forms) The following Table 4.1 shows the handling of oversized/undersized groups under different circumstances. Number of forms that can be folded together. Groups bigger will split into the maximum number (max. 8 forms of 80gsm), followed by the remainder.
  • Page 53 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS MAIL SORTING 4.5.1 POSTAL PRODUCT Mail sorting allows weight groups to be defined and added to a numbered Mailsort, A Postal Product is a complete filled envelope. Different postal products can be which can then be directed to a particular exit. It applies only when one or more sorters programmed to allow sorting for different needs. are fitted, which may optionally also be fitted with 1 or 2 conveyors. To use Mail sorting, select an existing mailsort from the ‘Postal Products’ list.
  • Page 54 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS NOTE: 4.5.2 MAIL SORT SETTINGS The minimum weight of each group is the same as the maximum weight of A Mail sort is part of the Postal Product and is used to determine how the mail-pieces the previous group as shown in Figure 4.20.
  • Page 55 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS Select the ‘Sort Criteria’, and then the required ‘Mail sort’ associated with it. To change the priority, select a ‘priority number’ to switch on the scroll arrows as shown in Figure 4.23. Set the Mail sort priority required for each line as shown in Figure 4.22.
  • Page 56 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS OUTPUT PLACEMENT OUTPUT SETTINGS Output placement settings allow the operator to select a different exit instead of the Output settings control how certain outputs are used, whether by an Output Conveyor, default (if other exits are fitted). Turner, Franker, Printer, or a combination of these depending on the units installed and configured within IMOS hardware units setup.
  • Page 57 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS To set the Batch mode, select the required mode from the list of options and 4.7.1 TURNER OUTPUT SETTINGS then press ‘Ok’ as shown in Figure 4.26. The following rotate envelope settings are available when an Turner is fitted with a Franking machine: Auto ▪ ▪ ▪...
  • Page 58 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS 4.7.2 FRANKER OUTPUT SETTINGS 4.7.3 OUTPUT CONVEYOR SETTINGS The following Franking control settings are available when a Franking machine is fitted: The following Output Conveyor settings are available: Dumb - Franks every mail-piece that passes. No feedback between the Single jog adjust - Sets the gap between each mail-piece on the conveyor ▪...
  • Page 59 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS 4.7.4 PRINTER OUTPUT SETTINGS Mailshot/sequential (non-reset) - Setting is the same as ‘Mailshot sequential’ ▪ but if the machine is Autoended, then switched back on, it will continue where it left off in the database. Without non-reset, the machine will restart at the If a Printer is fitted, first enter the ‘Flexmail master script name’ being used, first entry.
  • Page 60 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS Using the on-screen keypad, enter the lookup column name in the ‘Lookup’ SAVING THE JOB option, The lookup column name must be the same name of the column in the Flexmail database, and must not contain any spaces. This is defined by the Enter a ‘Job name’ and ‘Job description’ using the on-screen keypad as characters selected in the barcode.
  • Page 61 DS-200iQ / DS-600iQ OPERATOR IMOS SETTINGS NOTE: Lookup - In this mode Job number and Mail-piece-specific data is read by ▪ IMOS. Additionally, AIMS imports a customer generated database listing all the When using the ‘Read from prime’ mode, the software uses the job number mail-pieces in the job. read for statistics and data logging.
  • Page 62 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS USER GUIDE...
  • Page 63 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS SETTING UP A JOB Use the adjustment wheel as shown in Figure 5.2, and adjust the side guides at the feed end of the conveyor to an approximate clearance of 1 - 2mm on each side of the envelope.
  • Page 64 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS Adjustments to the conveyor backrest may also be needed to suit the envelope size Adjust the conveyor backrest angle to suit the following envelope sizes: being processed. C4/C5 - Backrest angle should be fully raised for C4 and C5 sized ▪...
  • Page 65 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.1.1 ENVELOPE SEPARATOR ADJUSTMENT 5.1.2 LOADING THE VERSATILE FEEDER HOPPER The separator prevents more than one envelope being fed at a time. To load the Versatile Feeder hopper, first insert a single document or enclosure into the hopper. First open the Insert Head side cover. Loosen the backrest thumb screw knob, and then slide the backrest forwards...
  • Page 66 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS To adjust the side guides, loosen the thumb screw knob as shown in Figure 5.1.2.1 VERSATILE FEEDER SEPARATOR ADJUSTMENT 5.7 and adjust the side guides by moving them inwards or outwards to an approximate clearance of 1 - 2mm on each side of the document or enclosure.
  • Page 67 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS Open the Versatile Feeder operator side cover, and turn the pickup roller feed The separator prevents more than one enclosure being fed at a time, and can wheel as shown in Figure 5.10 to feed the document further into the gap to be adjusted using the adjustment knob located behind the versatile feeder help set the separator gap.
  • Page 68 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.3 LOADING THE FLEX FOLDER HOPPER Load the 500-Sheet hopper, ensuring the stack of paper/forms stack are pressed down and loaded fully forward and under the pick-up rollers as shown in Figure 5.13. The Flex Folder is fitted with pods of one 1000-Sheet, or two 500-Sheet hoppers. Paper orientation in the hoppers will depend upon the job requirement. For further assistance in the various appliactions see section 5.1.3.3 Reading Orientations...
  • Page 69 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.3.2 1000-SHEET HOPPERS Push the tray firmly downwards all the way and load the 1000-Sheet hopper, ensuring the stack of paper/forms are loaded fully forward as shown in Figure 5.15. Loosen the thumb screw knob and use the tabs to adjust the hopper guides by moving them inwards or outwards as shown in Figure 5.14 to an approximate clearance of 1 - 2mm on each side of the paper.
  • Page 70 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.3.3 READING ORIENTATIONS QTL-RND-GEN-00000101-A-00 Figure 5.16 – UK and European Document Reading Orientations USER GUIDE REV 00 JUN 2020...
  • Page 71 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS QTL-RND-GEN-00000102-A-00 Figure 5.17 – US Document Reading Orientations USER GUIDE REV 00 JUN 2020...
  • Page 72 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.3.4 NON-READING ORIENTATIONS QTL-RND-GEN-00000103-A-00 Figure 5.18 – UK and European Document Non-Reading Orientations USER GUIDE REV 00 JUN 2020...
  • Page 73 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS QTL-RND-GEN-00000104-A-00 Figure 5.19 – US Document Non-Reading Orientations USER GUIDE REV 00 JUN 2020...
  • Page 74 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.3.5 ACCUMULATOR SIDE GUIDE ADJUSTMENT Re-tighten the thumb screw knob once the desired adjustment has been made. If an Accumulator is fitted to the Flex Folder, the side guides will need to be adjusted To empty any paper/forms in the accumulator, raise the overguide until it according to the paper/forms size being processed.
  • Page 75 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.3.6 FLEX FOLDER SEPARATOR ADJUSTMENT Turn the adjustment wheels to open or close the gap, use the markers indicated in Figure 5.23 as a visual aid to help achieve the required setting. The separator prevents more than one paper/form being fed at a time. The adjustment wheels for both the 500-Sheet and 1000-Sheet hoppers are located on the operator side of the Flex Folder.
  • Page 76 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.3.7 CURLED PAPER GUIDE ADJUSTMENT 5.1.3.8 CIS READER ADJUSTMENT 500-Sheet hoppers have curled paper guides to help eliminate (in most cases) or If a CIS Reader is fitted to a Flex Folder, it must be adjusted to align with the barcode minimize paper/forms from curling when feeding through the hopper. label on the form being processed.
  • Page 77 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS To adjust the CIS Reader for ‘top read’, slide the blue adjustment tab to the To adjust the CIS Reader for ‘bottom read’, slide the blue adjustment tab to left or right side as shown in Figure 5.27 according to where the label is printed the left or right side as shown in Figure 5.28 according to where the label is...
  • Page 78 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.4 PAPER CONTROL ADJUSTMENT NOTE: The lever can also be set halfway. For best results, adjust according to the The Paper Control lever on the collate clam is used to help control skewing and hold required job being processed.
  • Page 79 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.5 INSERT HEAD CATCH TRAY ADJUSTMENT 5.1.6 OUTPUT CONVEYOR BACKSTOP ADJUSTMENT The Insert Head can be optionally fitted with a catch tray at the exit, receiving To help envelopes feed onto the conveyor properly, the Output Conveyor backstop or processed envelopes in a stack to allow subsequent hand removal, and can be rollers will need to be adjusted according to the size of envelopes being processed for adjusted to suit a variety of envelope sizes.
  • Page 80 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.6.2 IN-LINE VERSION 5.1.7 OUTPUT CONVEYOR BACKREST ADJUSTMENT To adjust the Output Conveyor rollers, first loosen the thumb screw knobs on When the envelopes reach the end of the conveyor, they will stack up against the both sides. backrest which can be adjusted to suit the required amount of tilt. Adjust the rollers so that the ejecting envelopes contacts the nip (pinch) point...
  • Page 81 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.8 OUTPUT SORTER CATCH TRAY ADJUSTMENT 5.1.9 TURNER SIDE GUIDE PANEL ADJUSTMENT The Output Sorter can be optionally fitted with a catch tray at either exit, receiving If the job is programmed to turn the envelope, the side guide panel must be lowered. processed envelopes in a stack to allow subsequent hand removal, and can be adjusted to suit a variety of envelope sizes.
  • Page 82 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.1.10 TURNER BACKSTOP ADJUSTMENT 5.1.11 INFEED ROLLERS ADJUSTMENT If the Turner is fitted directly to the Insert Head exit, an adjustable backstop will The infeed rollers can be adjusted to provide drive onto envelopes if there are be attached. problems transferring them to the turner exit. NOTE: To adjust the infeed rollers, simply lower one or both rollers as needed, shown in Figure 5.38.
  • Page 83 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS FINE TUNING A JOB 5.2.1 UNIT FINE TUNING NOTE: Select a unit (e.g. Insert Head/Flex Folder) on the Run Screen GUI to open the fine tuning dialog box options. Ability to change settings depends upon the user access rights granted. See section 3.6.2 User Access Rights...
  • Page 84 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS Make any necessary adjustments as required. Depending upon which unit is Miscellaneous selected, the available options for fine tuning are as follows: Linear Speed - Adjusts the speed of the Insert Head to the filled envelope ▪ path only. Collating Select a lower speed if packs are not being fully inserted (e.g. long packs) ▪ Collate Pkt. Adj (0.1mm) - Adjusts the width of collate pocket guides in Env Conveyor Drive Delay - Adjusts the time delay of envelopes on the ▪...
  • Page 85 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.2.3 DOCUMENT FINE TUNING The following options are available only if a reading unit is fitted: ▪ Reset Seq. Count - Resets the sequence count. Select a Versatile Feeder or Flex Folder Document on the Run Screen GUI to Select this option to reset the sequence, if sequence BCR/OMR marks are in use open the fine tuning dialog box options as shown in Figure 5.42.
  • Page 86 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS Main Scope Select ‘Main’ to display the decoded CIS image as shown in Figure 5.44. Select ‘Scope’ to check the OMR marks against the programmed pitch of the OMR as shown in Figure 5.45. QTL-RND-SCR-00000176-A-00 Figure 5.44 –...
  • Page 87 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS Diagnostic Data Matching Data Select ‘Diagnostic Data’ to display details of the last 10 (most recent) barcodes that If running a matching job, select ‘Matching Data’ to check and display a defined field were read as shown in Figure 5.46. in the barcode of both the prime document and matched document or insert as shown in Figure 5.47.
  • Page 88 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS RUNNING A JOB 5.3.1 SINGLE CYCLE 1 X PROCEDURE To begin running a job, select the required job from the jobs list in the Jobs Before running a full job, it is advisable to run a single cycle (1x procedure), to establish Screen and press ‘Accept’...
  • Page 89 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.3.2 CASCADING JOB NOTE: Cascading enabled hoppers are indicated by the grey bracket symbols ‘}’, and Cascading allows ‘all available’ hoppers to be loaded with the same document type. inactive hoppers are indicated by the red pause symbol ‘II’ as shown in Figure 5.50.
  • Page 90 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.3.3.1 DAILY MAIL - VERSATILE FEEDER 5.3.3.2 DAILY MAIL - FLEX FOLDER To begin using the daily mail function for the Versatile Feeder, first ensure ‘Daily To begin using the daily mail function for the Flex Folder, first ensure ‘Daily Mail’ has Mail’ has been selected as the hopper feed mode in the document settings, and been selected as the hopper feed mode in the document settings, and the divert tray the separator gap on the Versatile Feeder hopper is adjusted to suit the group of on the Flex Folder accumulator is attached.
  • Page 91 DS-200iQ / DS-600iQ OPERATOR INSTRUCTIONS 5.3.3.3 STAPLING RESTRICTIONS The following staple restrictions shown in Figure 5.55 apply when using Daily Mail for both Versatile Feeder and the Flex Folder. QTL-RND-GEN-00000091-A-00 Figure 5.55 – Stapling restrictions QTL-RND-OPS-00000142-A-00 Figure 5.53 – Adjusting the divert tray side guides Press ‘Run’...
  • Page 92 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE USER GUIDE...
  • Page 93 DS-200iQ / DS-600iQ WARNING Improper installation, use, adjustment, alteration, service and or maintenance may result in property damage and or serious bodily injury! Ensure all safety information detailed in section 1.3 Safety including it’s sub-sections are read and understood in it’s...
  • Page 94 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE CLEANING THE MACHINE For most sensors, an arrow is stamped through the chassis to show where the jet of the invertible non-flammable air-duster After processing large numbers of inserts, there may be a build up of grime and dust should be directed. Ensure you clean the sensor lens, and not the on the rollers, and paper dust may obscure the optical sensors impairing efficiency.
  • Page 95 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE Clean the envelope feed and deskew sensors as shown in Figure 6.2 (looking Clean the collate pocket and collate entry sensors as shown in Figure 6.4 towards the envelope hopper). (looking away from the envelope hopper).
  • Page 96 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE Lift the Upper conveyor assembly (furthest from the envelope hopper) so it Lower the side cover, then lift the overguide inside the closer cavity and latch locks into place as shown in Figure 6.6. it into place as shown in Figure 6.8.
  • Page 97 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE Clean the envelope flap sensors as shown in Figure 6.10. 13. Open the side cover, then lower the front output cover below the envelope feeder as shown in Figure 6.12. QTL-RND-OPS-00000149-A-00 QTL-RND-OPS-00000151-A-00 Figure 6.10 – Cleaning the envelope flap sensors Figure 6.12 – Lowering the front output cover below the envelope feeder 12.
  • Page 98 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.1.1.2 CLEANING VERSATILE FEEDER SENSORS Clean the module exit sensors shown in Figure 6.15. Raise the Insert Head perspex top cover to access the first installed Versatile Feeder station for sensor cleaning. For subsequent installed feeder stations, open the Versatile Feeder side cover as shown in Figure 6.14 to access from the side for sensor cleaning.
  • Page 99 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE Open the side cover and lower the conveyor track assembly as shown in MARK-READING VERSATILE FEEDERS Figure 6.17. Raise the Insert Head perspex top cover to access the first installed Versatile Feeder (mark-reading) station for sensor cleaning. For subsequent installed feeder (mark-reading) stations, these sensors can only be accessed after dismantling by a manufacturer trained certified Engineer. Once dismantled, clean the sensors shown in Figure 6.19.
  • Page 100 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.1.1.3 CLEANING FLEX FOLDER SENSORS Insert the air-duster under the chassis bridges to clean the sensors shown in Figure 6.21. Open the Flex Folder top cover as shown in Figure 6.20 to access the sensors for cleaning.
  • Page 101 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE Raise the Output Sorter top cover as shown in Figure 6.23 to access the Clean the output sensor shown in Figure 6.25. sensors for cleaning. QTL-RND-OPS-00000163-A-00 Figure 6.25 – Cleaning the output sensor QTL-RND-OPS-00000161-A-00 Clean the divert sensor shown in Figure 6.26.
  • Page 102 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.1.1.5 CLEANING TURNER SENSORS 6.1.2 CLEANING CONVEYOR BELTS The Turner is fitted with two sensors, one located on the output side of the turn column, Accumulated dirt, grime and residue may build up on the surface of the Output the other is located on the output edge just before the Franker.
  • Page 103 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE CLEARING PAPER JAMS If the jammed paper is not fully visible, turn the blue knobs clockwise or anti- clockwise as shown in Figure 6.30 to wind it into view. Paper jams may occur periodically during a run cycle, however if a paper jam does occur, the area affected is typically indicated in the on-screen error message within IMOS.
  • Page 104 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.2.1.1 COLLATE POCKET PAPER JAMS 6.2.2 VERSATILE FEEDER PAPER JAMS Raise the Insert Head perspex top cover to access the collate clam. Open the Versatile Feeder side cover. Lift the collate clam (closest to envelope hopper) so it locks into place as Push the levers indicated in Figure 6.32 to access the jammed paper.
  • Page 105 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.2.3 FLEX FOLDER PAPER JAMS 6.2.3.1 BASE UNIT PAPER JAMS To clear any paper jams in Flex Folder base or tower units, first open the Flex Folder Raise and latch the transport assemblies No.1, No.2, and No.3, by pushing the operator side cover as shown in Figure 6.33. levers indicated in Figure 6.34.
  • Page 106 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.2.3.2 TOWER UNIT PAPER JAMS 6.2.3.3 ACCUMULATOR PAPER JAMS Raise and latch transport assembly No.4, and raise the roller assembly No.5 To remove accumulator paper jams, raise the accumulator overguide until it below it as shown in Figure 6.35.
  • Page 107 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE CHANGING FEED TYRES AND PICKUP ROLLERS To access the Insert Head feed pickup roller for replacement, first raise the Insert Head perspex top cover, and lift the collate clam (closest to envelope hopper) so it locks into place as shown in Figure 6.38. If feed rollers become worn, or when changing between jobs with different document types (e.g. glossy material), it may be necessary to replace or change them to assist feeding.
  • Page 108 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE The feed pickup roller can the then be accessed under the envelope tractor Slide the spring loaded collar of the pickup roller assembly inwards to release assembly as shown in Figure 6.39. the drive dog as shown in Figure 6.40.
  • Page 109 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.3.2 VERSATILE FEEDER FEED TYRES Lift the feed bed plate out of the chassis to access the feed shaft rollers beneath as shown in Figure 6.42. Unscrew and remove the three thumb screw knobs in the feed hopper as indicated in Figure 6.41.
  • Page 110 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE Lift the roller assembly feed shaft upwards to remove it from the feed bed. This indicates a one-way clutch freewheel direction, and if installed Slip off the roller tyres as shown in Figure 6.44, and replace them as required. on the wrong side, the shaft will rotate but the wheels will not drive.
  • Page 111 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.3.3 FLEX FOLDER PICKUP ROLLERS The initial procedures for the replacement of Flex Folder feed pickup rollers will depend upon the following Flex Folder pod configurations with ‘hopper 1’ always being the first uppermost hopper: 2 Pod Configurations ▪ 4 x 500-Sheet hoppers – hoppers numbered 1 to 4. 2 x 500-Sheet hoppers plus 1 x 1000-Sheet hoppers – hoppers numbered 1 to 3.
  • Page 112 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.3.3.2 HOPPER 2, 3, AND 4 PICKUP ROLLERS MAINTAINING THE WETTER SYSTEM To access the feed pickup rollers for hoppers 2, 3, and 4, it is advisable to remove all The wetter system comprises of a tank which should be removed for cleaning at hoppers for ease of access, beginning with the lowermost subsequent hopper.
  • Page 113 DS-200iQ / DS-600iQ OPERATOR MAINTENANCE 6.4.2 CHANGING THE RESERVOIR BOTTLE Open the door of the stand below the Insert Head. Lift the pipes with the attached weight out of the reservoir bottle as shown in Figure 6.51. QTL-RND-OPS-00000178-A-00 Figure 6.51 – Changing the reservoir bottle Remove the empty reservoir bottle, and replace with a new one.
  • Page 114 DS-200iQ / DS-600iQ TROUBLESHOOTING GUIDE USER GUIDE...
  • Page 115 DS-200iQ / DS-600iQ TROUBLESHOOTING GUIDE GENERAL TROUBLESHOOTING VERSATILE FEEDER TROUBLESHOOTING This troubleshooting guide provides possible solutions to operating problems that may Versatile Feeder Troubleshooting arise. It is not intended to provide a complete solution to all the possible problems shown, and should be used in conjunction with advice on curative action from your...
  • Page 116 DS-200iQ / DS-600iQ TROUBLESHOOTING GUIDE OUTPUT CONVEYOR TROUBLESHOOTING OUTPUT SORTER/TURNER TROUBLESHOOTING Output Conveyor Troubleshooting Output Sorter/Turner Troubleshooting Problem Suggested Cause and Curative Action Problem Suggested Cause and Curative Action Ensure ‘Continue’ is selected as the Batch Ensure ‘Franking Machine’ is selected as the Franker mode in Output Settings.
  • Page 117 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS USER GUIDE...
  • Page 118 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS GENERAL SPECIFICATIONS Unit Weights Insert Head: 101Kg unpackaged Unit Dimensions 119Kg packaged Insert Head: 1150mm Length Versatile Feeder: 62Kg unpackaged 565mm Width (625mm including monitor arm) 1200mm Height (including furniture) 76Kg packaged Versatile Feeder: 410mm Length...
  • Page 119 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS Electrical Heat Output Rated current x rated volts x 3.412 (e.g. 2464 BTU/Hour Input Voltage: 230VAC / 220VAC (North America) BTU/Hour: for typical configuration of Insert Head, 3 x Versatile 24VDC (Output Conveyor) supplied via DIN lead from Feeders, 1 x Flex Folder).
  • Page 120 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS INSERT HEAD SPECIFICATIONS Ambient Light Although the machine may operate in sunlight, it is not designed for use in direct Envelope Hopper Capacity sunlight, or where sunlight is exposed to the machine through windows or skylights.
  • Page 121 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS 8.2.1 CYCLING SPEEDS 8.2.2 PACK DETAILS Pack Thickness Envelope DS-200iQ DS-600iQ C5/C6 (114mm) - 1 x A4/Letter in C-fold via Accumulator 5,000 6,000 DS-200iQ: All envelopes up to 6mm (15/64”) C5/C6 (114mm) - 2 x A4 in C-fold via Accumulator...
  • Page 122 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS 8.2.3 ENVELOPE DETAILS Envelope Weight C5 Envelopes (or below): Min. 70gsm (18lbs bond) Max. 110gsm (28lbs bond) Above C5 Envelopes: Min. 90gsm (24lbs bond) Max. 110gsm (28lbs bond) Envelope Requirements ▪ Envelope to be of good quality machine-fill type Dimensions and quality to be consistent across manufactured batches ▪...
  • Page 123 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS QTL-RND-GEN-00000094-A-00 QTL-RND-GEN-00000095-A-00 Figure 8.2 – Envelope specifications Figure 8.3 – Envelope specifications USER GUIDE REV 00 JUN 2020...
  • Page 124 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS VERSATILE FEEDER SPECIFICATIONS Enclosure Weight Min: 75gsm/80gsm (20lbs bond) Hopper Capacity Max: 6mm ( ”) thickness A4 Documents unfolded: Up to 1000 of 80gsm (20lbs bond) A4 Documents (Z-Fold): Up to 500 of 80gsm (20lbs bond)
  • Page 125 Figure 8.5, Figure 8.6, and Figure 8.7. Single pod variations of either 1 x 1000-Sheet Hopper, or 2 x 500-Sheet Hoppers are also available for the DS-200iQ only. Contact your local Technical Support Engineer for further information regarding pod QTL-RND-GEN-00000097-A-00 configurations for the Flex Folder.
  • Page 126 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS 8.4.1 PAPER AND FOLD DETAILS Fold Lengths Fold Plate 1: Min. 50mm Paper Size Max. 237mm Width: Min. 148mm (5 ”) Fold Plate 2: Min. 85mm Max. 305mm (12”) NOTE: Max. 232mm Min. pack width for individual items is 210mm (8 ”).
  • Page 127 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS OUTPUT CONVEYOR SPECIFICATIONS 8.6.2 COMPATIBLE C4 ENVELOPES Compatible C4 envelope windows shown in Figure 8.9 are suitable for use on a Turner: Conveyor Speed NOTE: Max: 4meters per minute Envelope turning is determined by the address position selected when Linear Speed (controlled by Insert Head) ▪...
  • Page 128 DS-200iQ / DS-600iQ TECHNICAL SPECIFICATIONS READING SPECIFICATIONS A CIS (Contact Image Scanner) reading device may be optionally fitted to Versatile Feeders and Flex Folders. It consists of a full portrait paper-width unit capable of reading Barcodes (1D & 2D) and OMR marks (1-track & 2-track) with a maximum scanning width of 216mm.
  • Page 129 DS-200iQ / DS-600iQ DISPOSAL INSTRUCTIONS USER GUIDE...
  • Page 130 DS-200iQ / DS-600iQ DISPOSAL INSTRUCTIONS END OF LIFE Do not mix with normal domestic waste. ▪ Please use the sub-joined return or collection system dedicated to the ▪ The objectives of the European Community’s environment policy are, in particular, to disposal of electrical and electronic waste.

This manual is also suitable for:

Ds-600iq
