10. Hanging the Fan

1. Remove the clevis pin and cotter pin and loosen the two collar
screws from the motor collar (Fig. 16).
2. Feed motor wires through coupling cover, canopy ring, and
canopy.
3. Feed motor wire through downrod assembly.
4. Thread the downrod assembly onto motor collar. Align the holes
of downrod and collar and insert the cotter pin and clevis pin.
Tighten the two collar screws (Fig. 16).
WARNING: Failure to properly install the cotter pin and/or tighten the
set screws could result in the fan loosening and possibly falling.
12
Coupling Cover
Clevis Pin

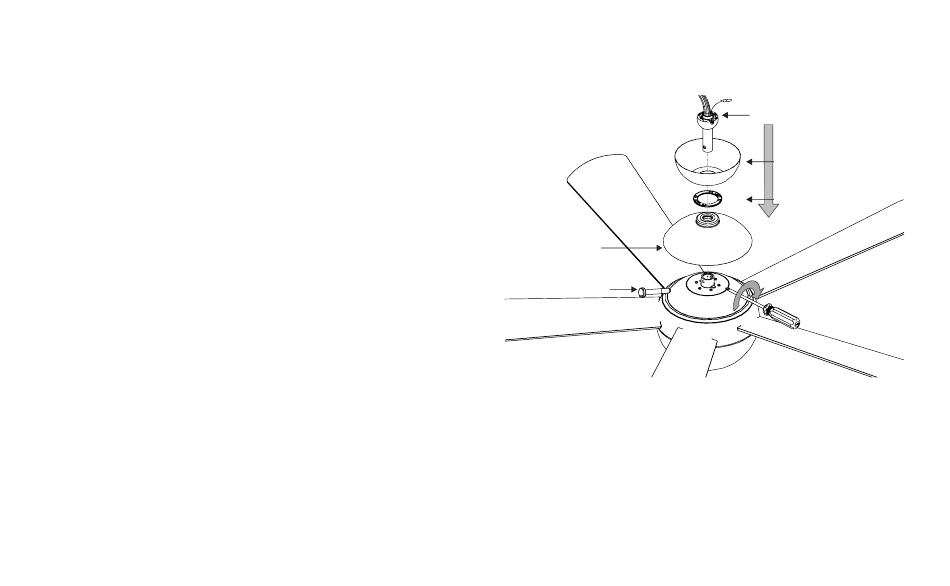

FIGURE 16
Downrod Assembly
Canopy Cover
Canopy Ring
