9. Installing the LED Luminaire Module

WARNING: Before starting installation, disconnect the power by turning off
the circuit breaker or removing the fuse at fuse box.
NOTE: If you do not plan to install the luminaire module with your fan at
this time, skip to section 14.

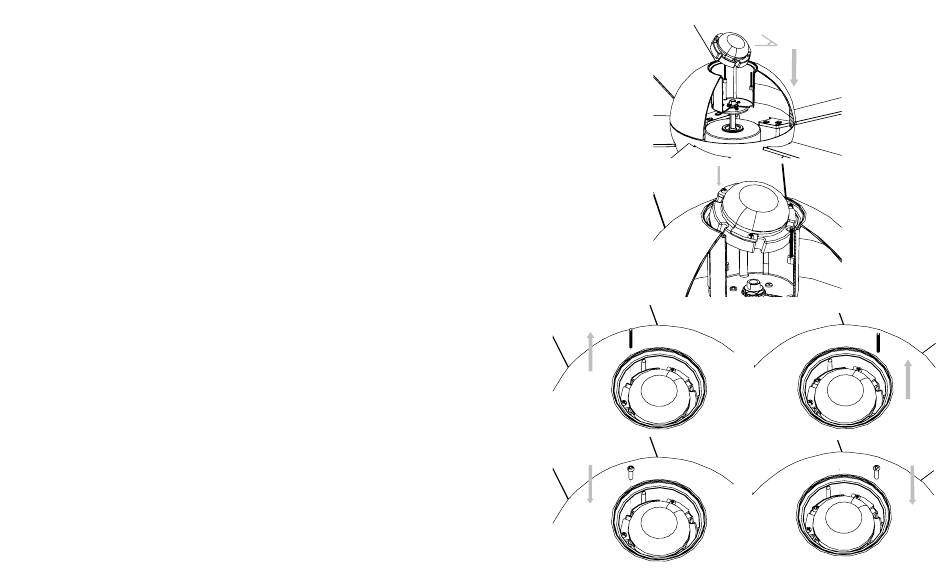

1. Raise and hold the LED luminaire module close to the adapter
plate and proceed to secure the wire connections. Connect the
white wire connector from the luminaire module to the white
wire of the fan. Follow the same procedure with the black wire
connectors (Fig. 11).
2. Lower the LED and tug the connection neatly (Fig. 12).
3. Align 2 small cut outs on LED with the 2 thread rods (Fig. 13).
4. Lock LED with screw using 1 remaining hole (Fig. 14).
5. Remove the 2 threaded rods and replace them with LED plate
screws (Fig. 15).
F R- W1 8 1 6
FIGURE 10
FIGURE 11
FIGURE 12
12
FIGURE 13
15~20
FIGURE 14
FIGURE 15
11
