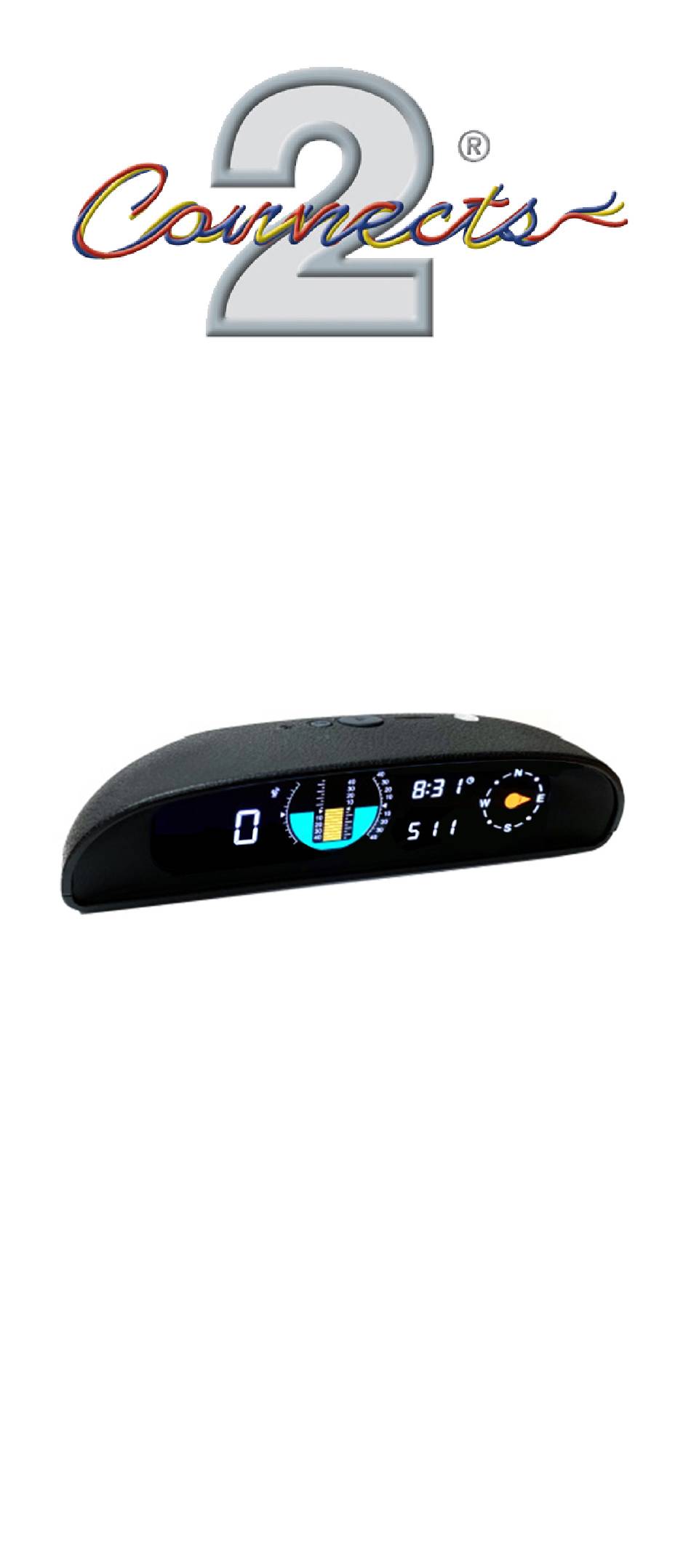

- Page 1 4X4ALTIMETER Integrated Information Display U s e r & I n s t a l l a t i o n G u i d e 4X4ALTIMETER_IUG _en-GB_v1...
- Page 2 Display Integrated Speaker Pair Power Button Button (1) (6) Elevation Altitude / Temperature Display cycles between elevation altitude and internal temperature every 10 seconds (2) (3) Pitch Angle / Roll Angle Displays current pitch angle. To reset/zero, press and hold the Power Button whilst the device is on for 3-5 seconds.
- Page 3 Installation External GPS Module Altimeter ACC (Red) (Black) 1. Connect the ACC wire to the ACC power supply of the car, and connect the GND wire to a suitable ground point. 2. Position the GPS module in a suitable location in the vehicle to receive optimal signal (e.g.
- Page 4 Specification Pitch Angle -40 ° ~+40 ° Roll Angle -40 ° ~+40 ° Temp. Accuracy +/- 1 °C Clock Error < 1 Min Voltage Measurement Range DC 5-30V Speed Precision <0.36Km/h Operating Temp. -40 °C ~+80 °C Power Supply DC 10V ~ 30V...
