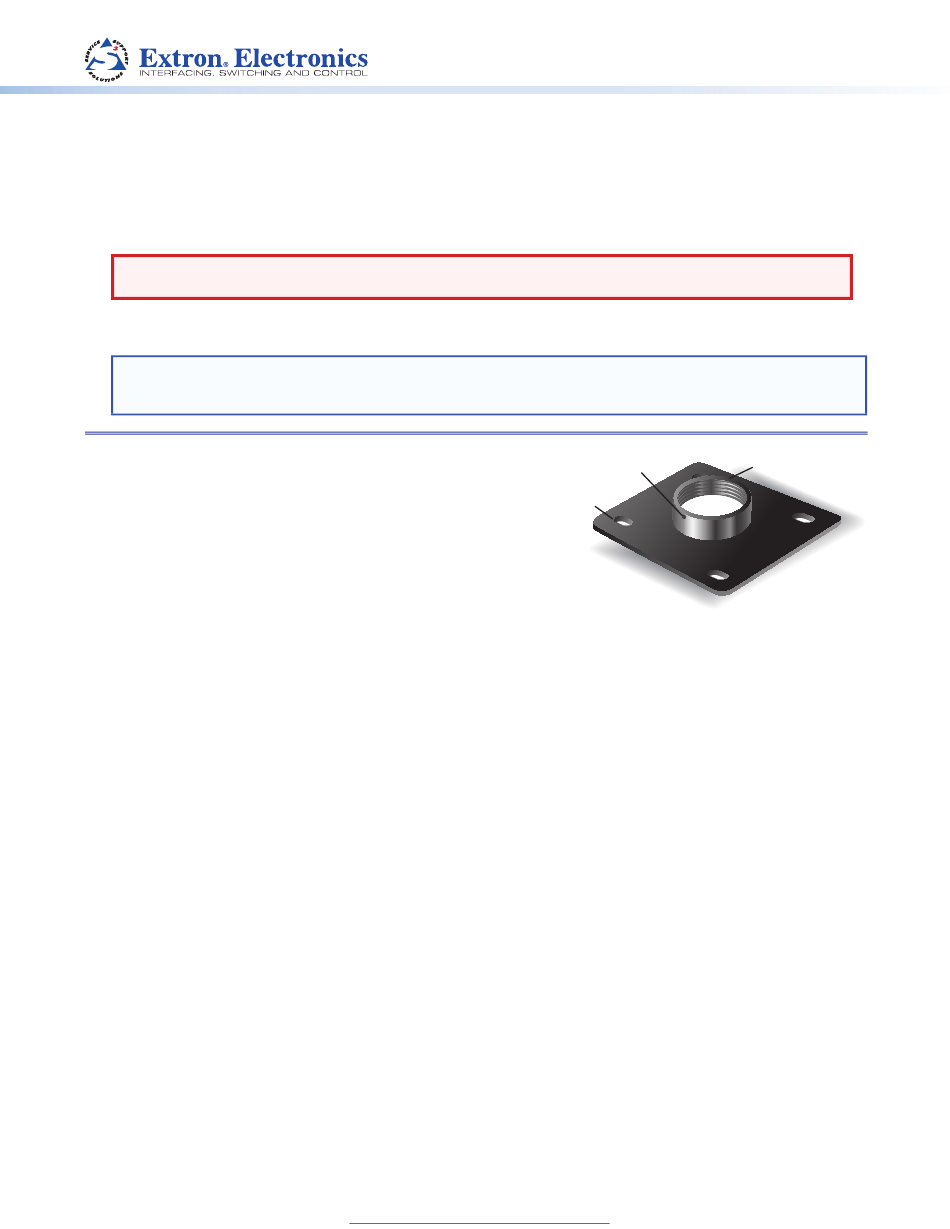

FCMP 44 • Installation Guide
IMPORTANT SAFETY INSTRUCTIONS
When using this accessory, basic precautions should always be followed, including the following:
WARNING:
Risk of Personal Injury. Maximum setup load for the FCMP 44 is 200 lbs (91.6 kg). The structural
ceiling must be capable of supporting 4 times the weight of the final setup.
NOTE:
Refer to local building standards and codes to verify that the installation will meet the regulatory
requirements. Observe all local and national building and safety codes, UL requirements, and ADA
accessibility guidelines.
The FCMP 44 (Flat Ceiling Mount Plate) is a simple and
easily installed mounting solution for hanging a projector in
installations where a short extension pole is used or where larger
mounting plates cannot be installed. The FCMP 44 can support a
projector setup weighing up to 200 lbs (91.6 kg), and is suitable
for installation on wooden joists. It has an integral 1½"
National Pipe Thread pipe adapter, allowing the attachment of a
suitable projector pole, such as one of the Extron PMP
(Projector Mounting Pole) series. The FCMP 44 is a complementary
mounting accessory for use with the Extron UPB 25
(Universal Projector Mount Bracket).
The features of the FCMP 44 are shown in figure 1. Included in the kit are:
Flat Ceiling Mounting Plate, (1), and Hex Wrench, 3/32", (1).
Checking the Mounting Location
Before starting the installation, it is important that these steps are followed:
• Check that the ceiling plate is suitable for the angle of the ceiling where the projector is to be installed.
• The installation must be done by a skilled technician
Read all instructions before starting installation.
SAVE THESE INSTRUCTIONS
Get other manuals https://www.bkmanuals.com

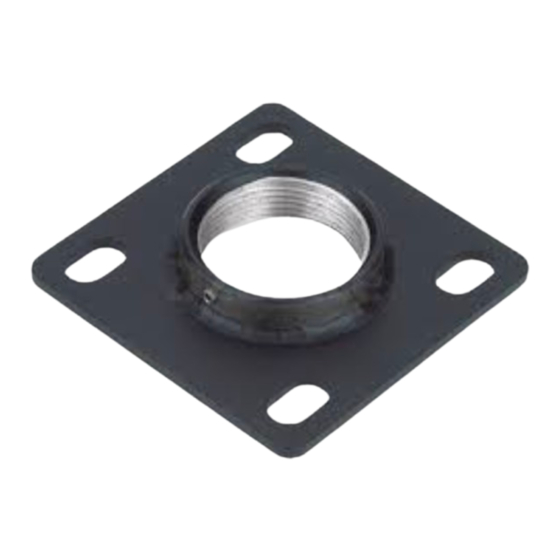

Set Screw
Mounting
Holes
FCMP 44 Features
Figure 1.
1½" NTP
Pipe Adapter
1
