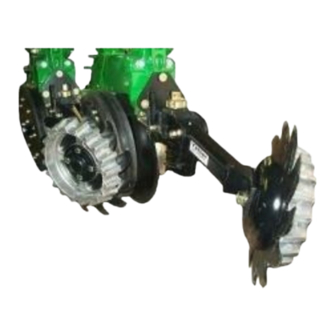

- Page 1 2966-020A RESIDUE MANAGER TWIN ROW PLANTER OPERATOR’S MANUAL PART IDENTIFICATION 2565-780_REV_E • 08/2023 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
-
Page 2: Warranty
WARRANTY Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This warranty being expressly limited to replacement at the factory of such parts or products as shall appear to be defective after inspection. - Page 3 SAFETY A brief description of signal words that may be used in this manual: CAUTION: Used as a general reminder of good safety practices or to direct attention to unsafe practices. WARNING: Denotes a specific potential hazard. DANGER: Denotes the most serious specific potential hazard. SAFETY PRECAUTIONS You can make your farm a safer place to live and work if you observe the safety precautions given.
-
Page 4: Bolt Torque
BOLT TORQUE Mounting bolts and hardware Before operating the Residue Manager for the first time, check to be sure that all hardware is tight. Check all hardware again after approximately 50 hours of operation and at the beginning of each planting season. All hardware used on the Residue Manager is Grade 5 unless otherwise noted. - Page 5 ASSEMBLY INSTRUCTIONS Step 1. Attach the Residue Manager Wheel Assembly to Arm Assembly, torque 180 ft. lbs.
- Page 6 ASSEMBLY INSTRUCTIONS Step 2. Attach the Residue Manager to the planter row unit using; 3) 12 mm x 45 mm bolts, torque 97 ft/lbs.
- Page 7 OPERATING INSTRUCTIONS DEPTH Raise or lower the stem and wheel assembly so the teeth of the wheels are in solid contact with the residue and lightly touching the soil. The function of the row cleaner is to sweep aside residue and not move soil. When using pre- plant incorporated herbicide, the row cleaner depth should be adjusted to minimize soil disturbance so the cleaner will not reduce the effectiveness of the incorporated herbicide.
-
Page 8: Maintenance
Conditions in certain geographical areas may require special lubricants and lubrication practices which do not appear in the operator's manual. If there are any questions, consult Yetter Manufacturing Co. to obtain latest information and recommendation. Storing Lubricants Your machine can operate at top efficiency only if clean lubricants are used. - Page 9 Clean machine thoroughly to remove all dirt, debris and crop residue, which would hold moisture and cause rusting. Inspect machine for worn or broken parts. See your Yetter Farm Equipment dealer during the off-season so that parts or service can be acquired when machine is not needed in the field.
-
Page 10: Parts Identification
PARTS IDENTIFICATION 2966-020A-L-ST-FW 2966-020A-R-ST-FW... - Page 11 PARTS IDENTIFICATION 2966-100 LEFT HAND ASSEMBLY...
- Page 12 PARTS IDENTIFICATION 2966-101 RIGHT HAND ASSEMBLY...
- Page 13 PARTS IDENTIFICATION 2966-117-ST-FW (SHOWN) 2966-116-ST-FW...
- Page 14 PARTS IDENTIFICATION 2966-116-STF-FW (SHOWN) RIGHT HAND 2966-117-STF-FW LEFT HAND...
- Page 15 ITEM PART NO DESCRIPTION 2502-221 5/16-18 X 1 HHFS GRADE 5 2502-222 5/16-18 X 1-1/4 HHFS GRADE 5 2502-225 5/16-18 X 1-1/2 HHFS GRADE 5 2940-560 SET SCREW 2965-500 HUB ASSEMBLY 1.406 SPINDLE 2965-501 HUB ASSEMBLY 2.406 SPINDLE 2965-502 HUB ASSEMBLY 1.157 SPINDLE ITEM PART NO DESCRIPTION...
- Page 16 2565-780_REV_E • 08/2023...
