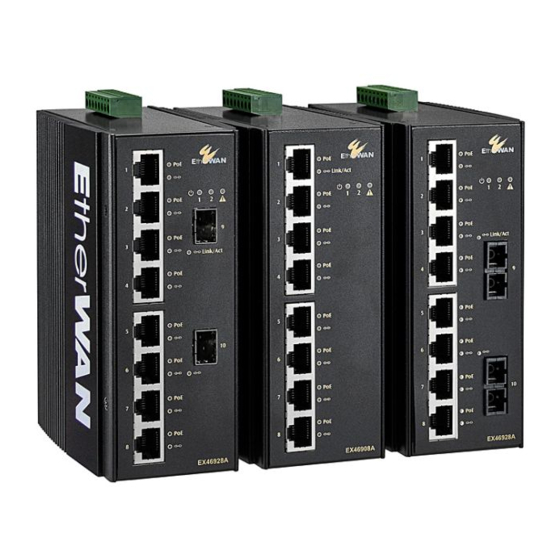

EtherWAN EX46900A Series Installation Manual

1 Unpacking
Open the carton and unpack the items. Your package
should include:
▪
One EX46900A Switch
If any items are missing or damaged, notify your
EtherWAN representative. If possible, save the carton
and packing material in case you need to ship or store
the switch in the future.
2 Equipment Needed
▪
Category 5 or better cable for RJ-45 ports
▪
Appropriate SFP modules for SFP ports
3 Select a Location
▪
Installation: DIN rail. Place the device on the DIN
rail from above using the slot. Push the front of
the device toward the mounting surface until it
audibly snaps into place.
▪
Choose a dry area with ambient temperature
between -40°C to 75°C (-40°F to 167°F).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
4 Connect to the Data Ports
Depending on the model, your switch can have the
following ports:
▪
10/100/1000BASE-T: 8 PoE ports
▪
1000BASE Fiber: 2 ports (Optional)
W70G-EX469V2Q1 Page 1
EX46900A Series | Hardened Unmanaged PoE Gigabit Ethernet Switch
5 Connect Power
Connect the supply voltage to start up the device via
the terminal block. Power consumption is 11.2 watts
without PoE. PoE budget is 120 watts, 30 watts per
port.
Terminal Block
The switch provides two power inputs on an 18-57VDC
terminal block. Only one power input is required to
operate the switch.
Pin State
+
Power 1
-
+
Power 2
-
Relay Output Rating 0.5A @ 48VDC
Copyright 2022 EtherWAN Systems, Inc. All Rights Reserved 01/03/2023
Description
18-57VDC
Power Ground
18-57VDC
Power Ground
Earth Terminal
Installation Guide
Relay Output
The relay output can be connected to an alarm
signaling device. Current is 0.5A @48VAC.
