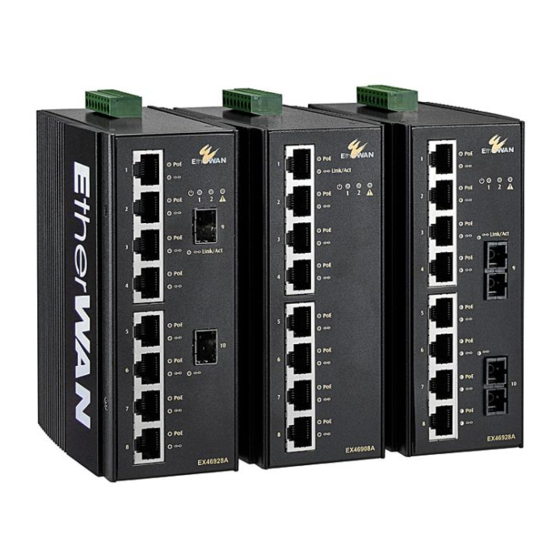

EtherWAN EX46900A Series Quick Start Manual

EX46900A series
This quick start guide describes how to install and use the Hardened PoE Gigabit
Ethernet Switch. Capable of operating at temperature extremes of -40°C to +75°C,
this is the Switch of choice for harsh environments constrained by space.
Physical Description
The Port Status LEDs
LED State
Steady
Power 1, 2 (Green)
Off
Steady
Alarm (Red) Off
Gigabit Ports
Steady
Blinking
Link/Act (Green)
Off
Steady
PoE (Amber)
Off
Blinking
Hardened PoE Gigabit Ethernet Switch
Indication
Power on.
Power off.
Relay starts alarm.
Relay non-alarm.
A valid network connection established.
Transmitting or receiving data.
Act stands for Activity.
No link.
Powered Device is connected.
Powered Device is disconnected.
While Powered Device over 30W.
The Terminal Block and Power Inputs
DIP Switch Settings
DIP No. On
1~10 Port 1~10 Alarm Enable.
11~12 N/A
1
www.etherwan.com
Power Input Assignment
＋
18~57VDC
Power1
－
Power Ground
＋ Terminal Block
18~57VDC
Power2
－
Power Ground
Earth Ground
Relay Output Rating 1A @ 250VAC
Off
Port 1~10 Alarm Disable.
N/A
W70G-EX4690AQ1
