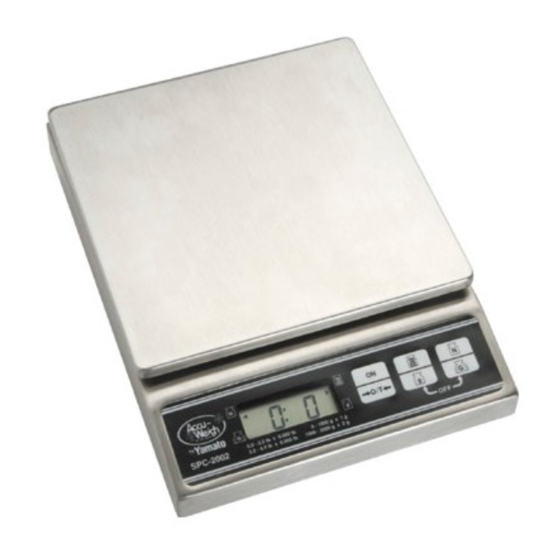

Digital food scales

Advertisement

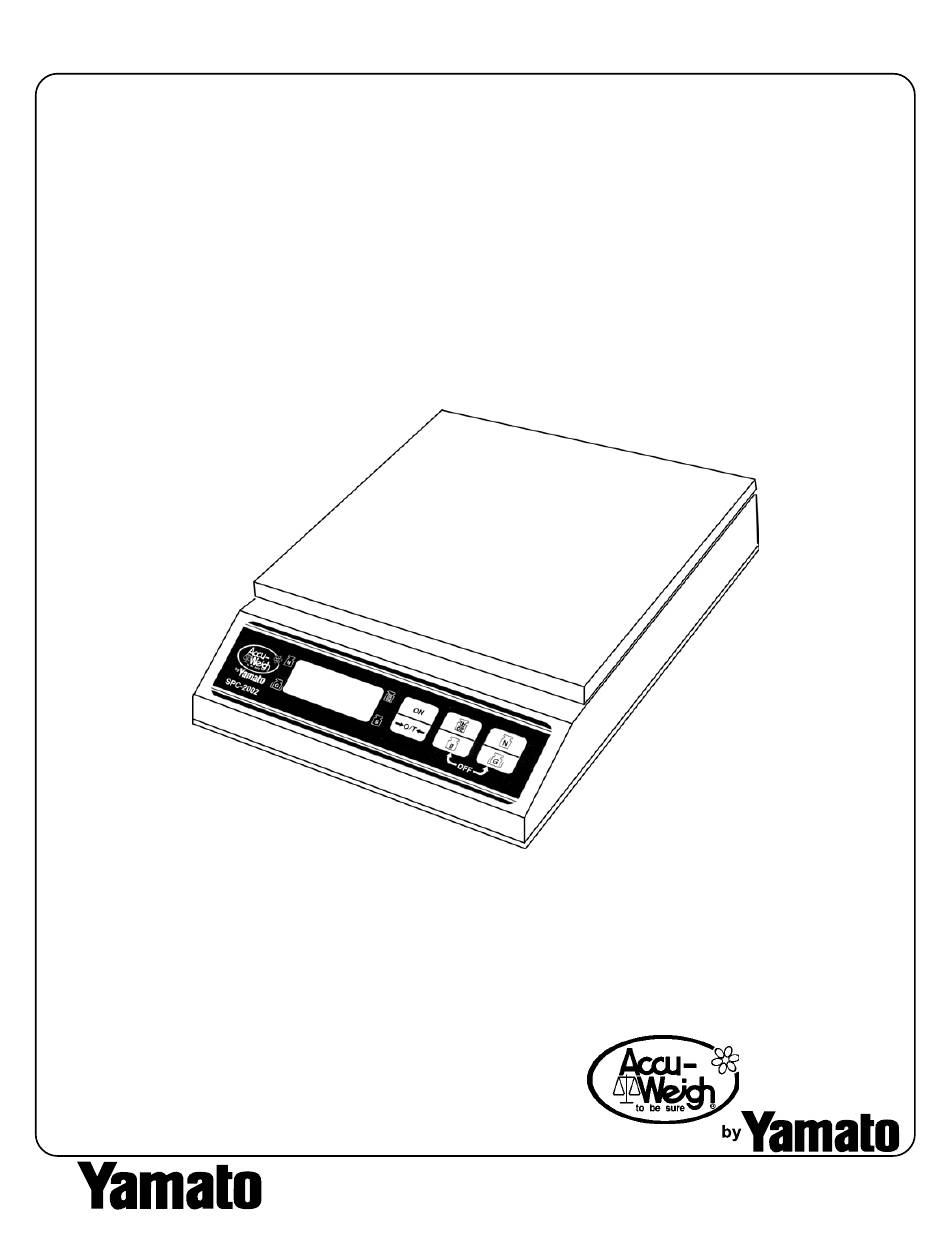

SPC-2002/5005
www.yamatocorp.com
Digital Food Scales
YAMATO CORPORATION
1775 S. Murray Blvd.
Colorado Springs, CO 80916 USA
Tel (719) 591-1500 Fax (719) 591-1045
Technical Manual
YAMATO TECH CORPORATION
#112-19425 Langley By-Pass
Surrey, B.C. V3S 6K1
Tel (604) 533-2338 Fax (604) 533-0827
Canada
YCO-1097-02-02
