EC578000

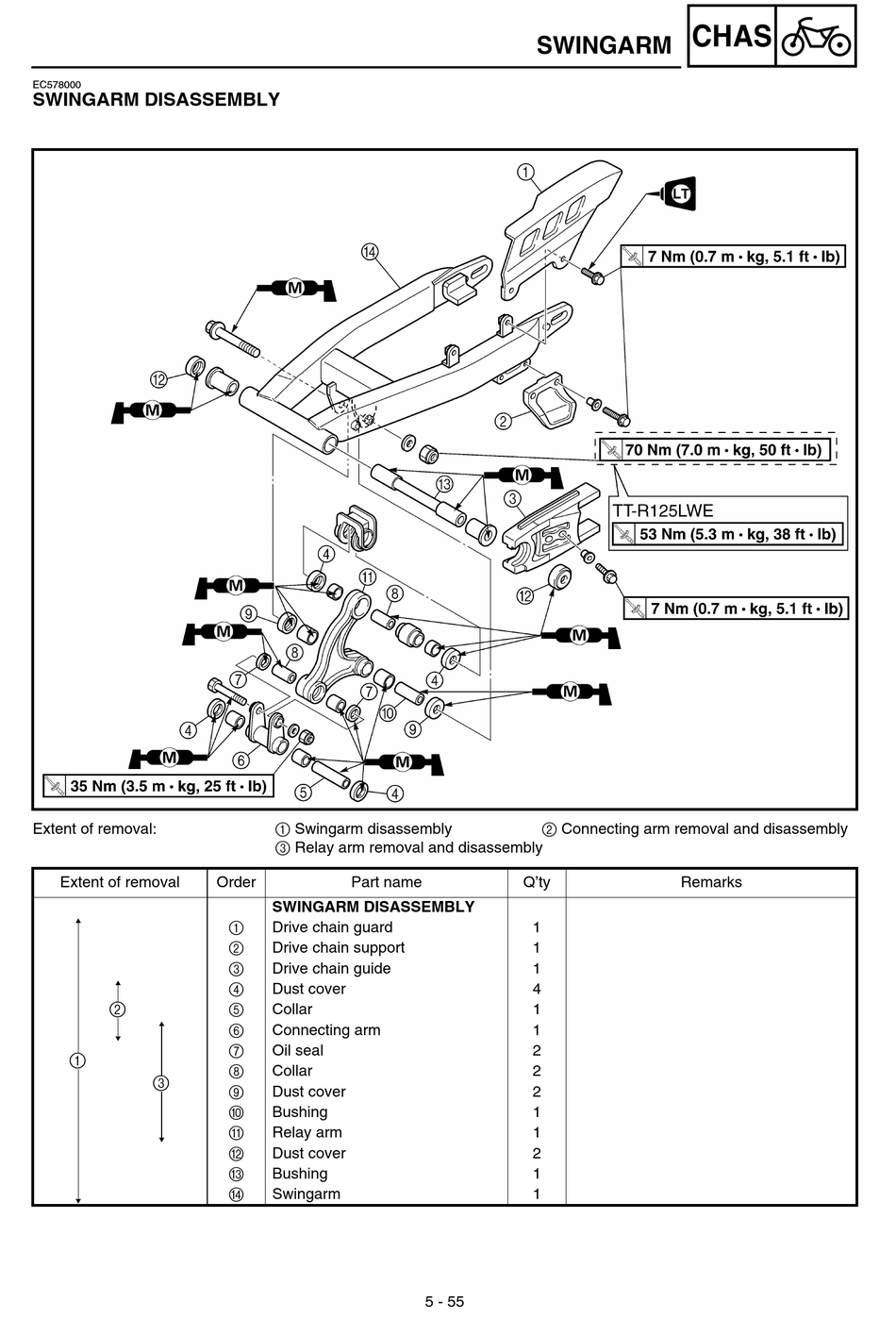

SWINGARM DISASSEMBLY
Extent of removal:
Extent of removal
2
1
3
1 Swingarm disassembly
3 Relay arm removal and disassembly
Order Part name
SWINGARM DISASSEMBLY
1 Drive chain guard
2 Drive chain support
3 Drive chain guide
4 Dust cover
5 Collar
6 Connecting arm
7 Oil seal
8 Collar
9 Dust cover
0 Bushing
A Relay arm
B Dust cover
C Bushing
D Swingarm
SWINGARM
2 Connecting arm removal and disassembly
Q'ty
1
1
1
4
1
1
2
2
2
1
1
2
1
1
5 - 55
CHAS
Remarks
