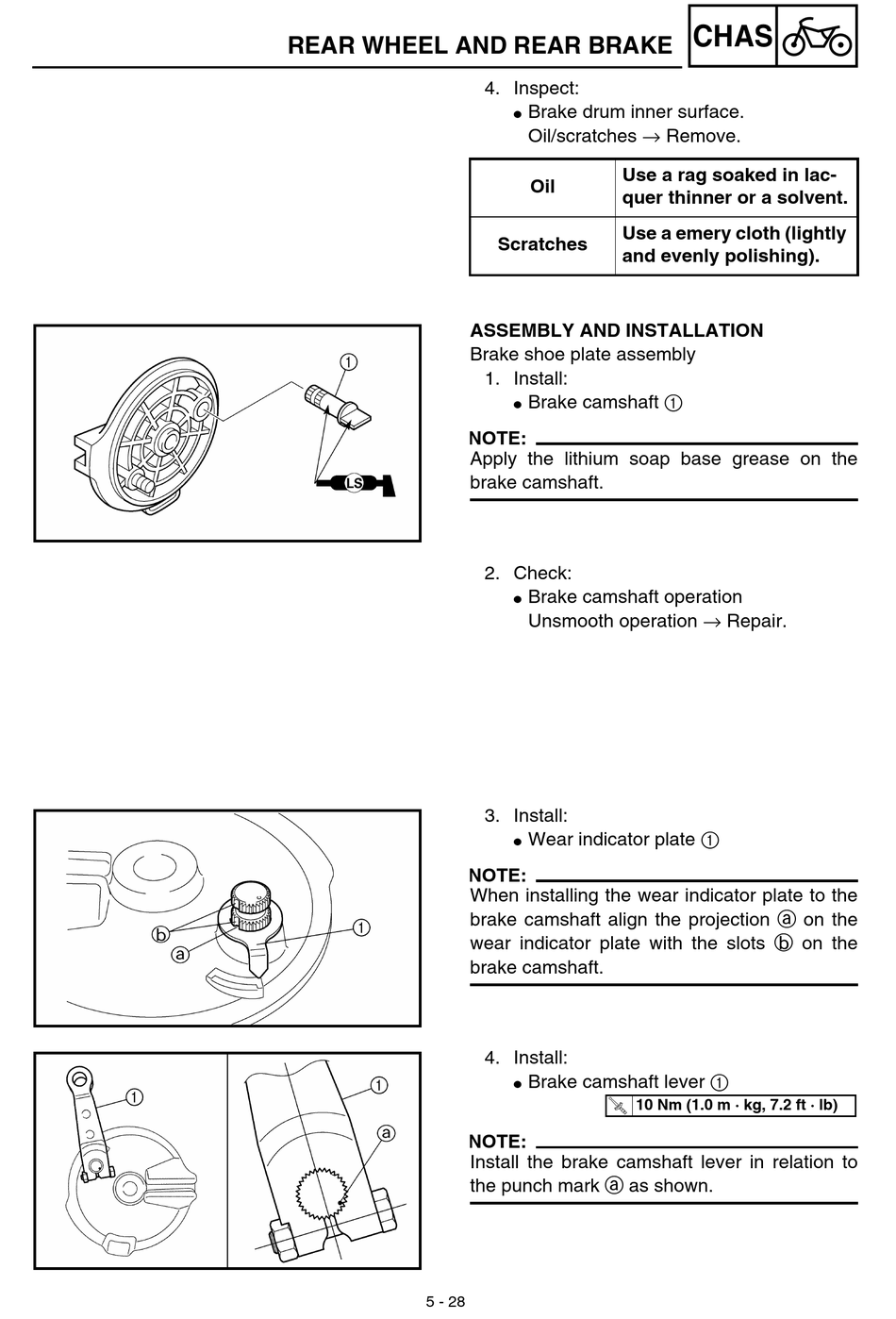

REAR WHEEL AND REAR BRAKE
5 - 28
4. Inspect:
Brake drum inner surface.
G
Oil/scratches → Remove.
Use a rag soaked in lac-
Oil
quer thinner or a solvent.
Use a emery cloth (lightly
Scratches
and evenly polishing).
ASSEMBLY AND INSTALLATION
Brake shoe plate assembly
1. Install:
Brake camshaft 1
G
NOTE:
Apply the lithium soap base grease on the
brake camshaft.
2. Check:
Brake camshaft operation
G
Unsmooth operation → Repair.
3. Install:
Wear indicator plate 1
G
NOTE:
When installing the wear indicator plate to the
brake camshaft align the projection a on the
wear indicator plate with the slots b on the
brake camshaft.
4. Install:
Brake camshaft lever 1
G
10 Nm (1.0 m · kg, 7.2 ft · lb)
NOTE:
Install the brake camshaft lever in relation to
the punch mark a as shown.
