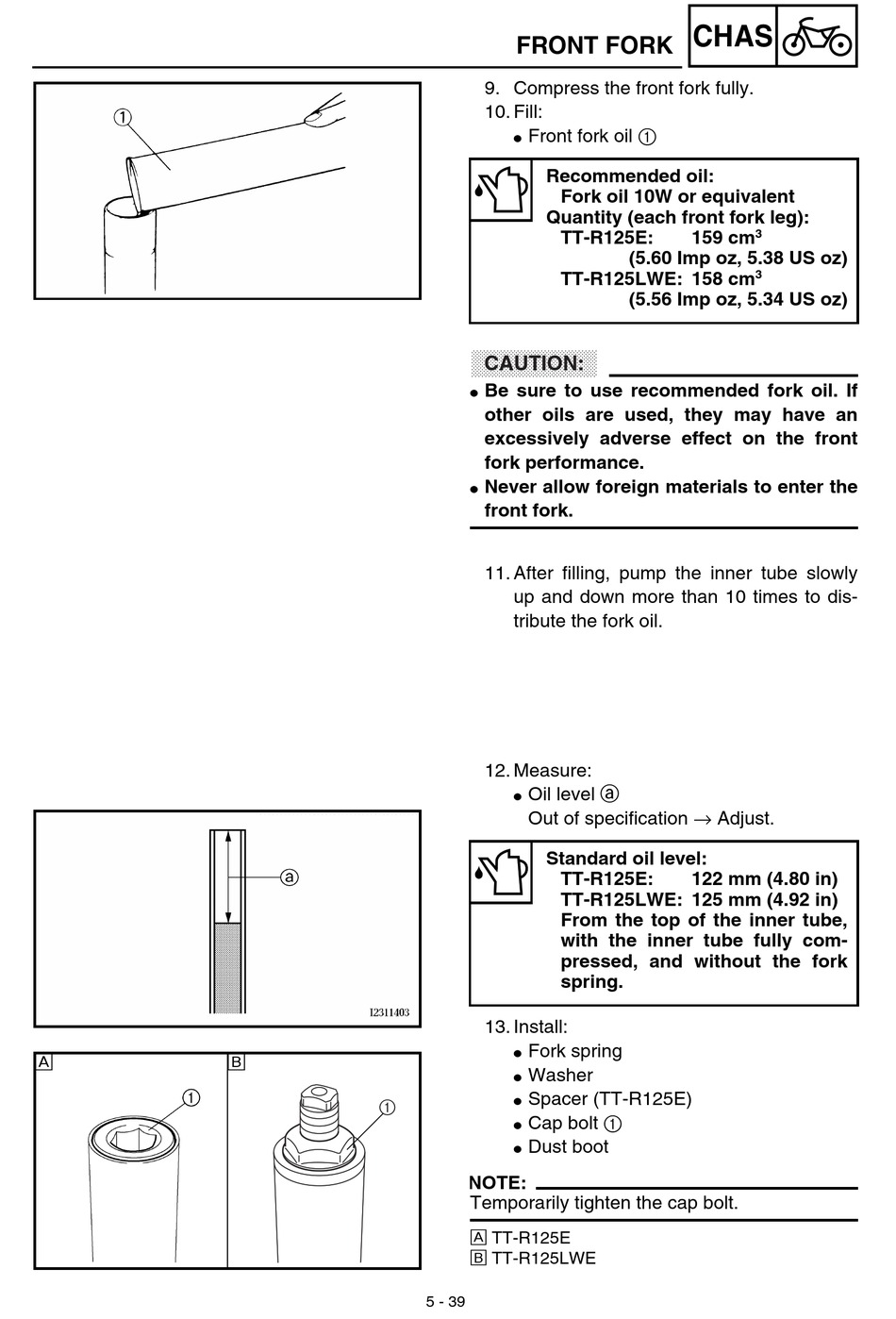

Yamaha TT-R125E(R) Owner's Service Manual page 482

Å ı
1
FRONT FORK
9. Compress the front fork fully.
10. Fill:
Front fork oil 1
G
Recommended oil:
Fork oil 10W or equivalent
Quantity (each front fork leg):
TT-R125E:
TT-R125LWE: 158 cm
CAUTION:
Be sure to use recommended fork oil. If
G
other oils are used, they may have an
excessively adverse effect on the front
fork performance.
Never allow foreign materials to enter the
G
front fork.
11. After filling, pump the inner tube slowly
up and down more than 10 times to dis-
tribute the fork oil.
12. Measure:
Oil level a
G
Out of specification → Adjust.
Standard oil level:
TT-R125E:
TT-R125LWE: 125 mm (4.92 in)
From the top of the inner tube,
with the inner tube fully com-
pressed, and without the fork
spring.
13. Install:
Fork spring
G
Washer
G
Spacer (TT-R125E)
G
Cap bolt 1
G
Dust boot
G
NOTE:
Temporarily tighten the cap bolt.
Å TT-R125E
ı TT-R125LWE
5 - 39
CHAS
3
159 cm
(5.60 Imp oz, 5.38 US oz)
3
(5.56 Imp oz, 5.34 US oz)
122 mm (4.80 in)
