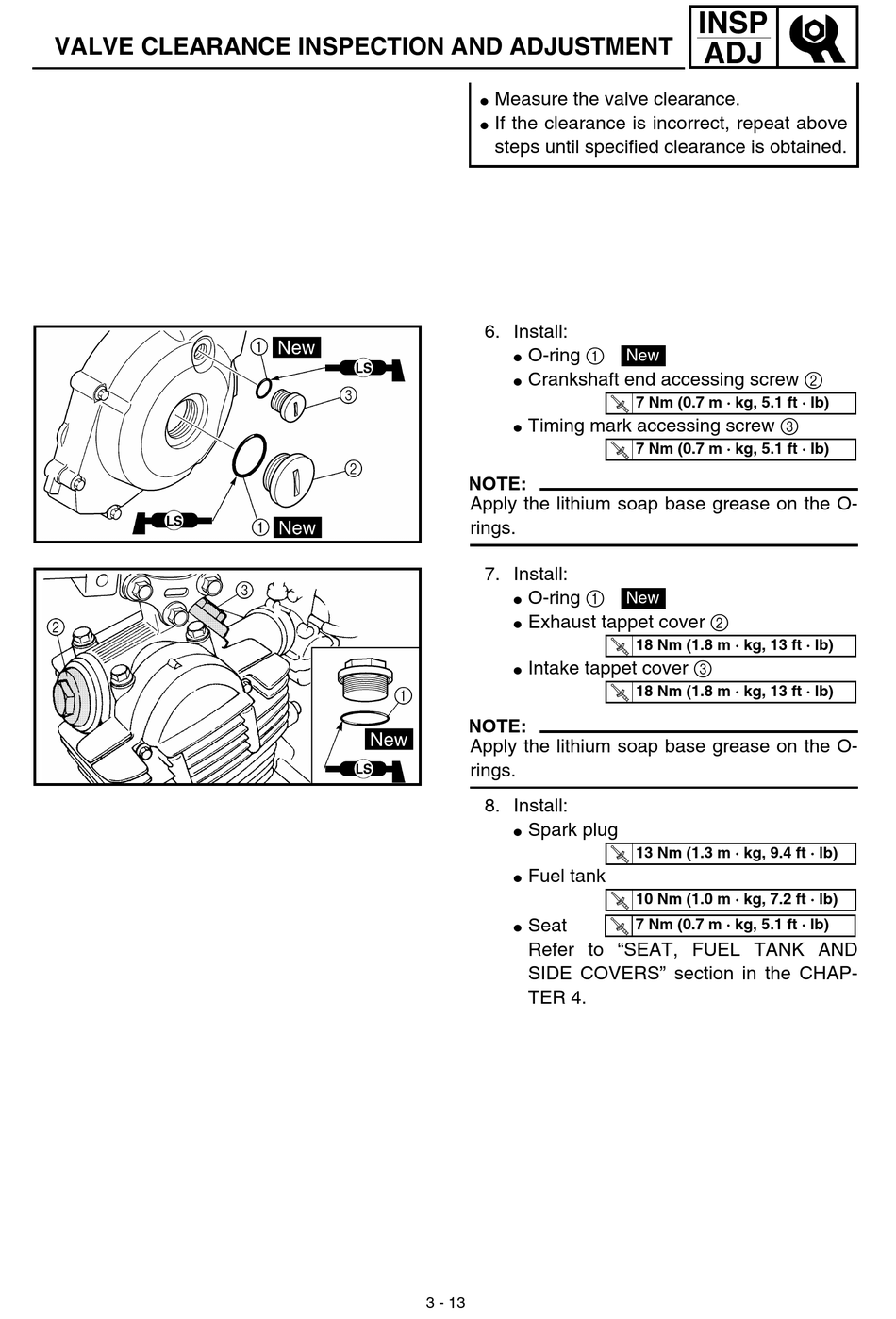

VALVE CLEARANCE INSPECTION AND ADJUSTMENT
Measure the valve clearance.
G
If the clearance is incorrect, repeat above
G
steps until specified clearance is obtained.
6. Install:
O-ring 1
G
Crankshaft end accessing screw 2
G
Timing mark accessing screw 3
G
NOTE:
Apply the lithium soap base grease on the O-
rings.
7. Install:
O-ring 1
G
Exhaust tappet cover 2
G
Intake tappet cover 3
G
NOTE:
Apply the lithium soap base grease on the O-
rings.
8. Install:
Spark plug
G
Fuel tank
G
Seat
G
Refer to "SEAT, FUEL TANK AND
SIDE COVERS" section in the CHAP-
TER 4.
3 - 13
INSP
ADJ
New
7 Nm (0.7 m · kg, 5.1 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
New
18 Nm (1.8 m · kg, 13 ft · lb)
18 Nm (1.8 m · kg, 13 ft · lb)
13 Nm (1.3 m · kg, 9.4 ft · lb)
10 Nm (1.0 m · kg, 7.2 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
