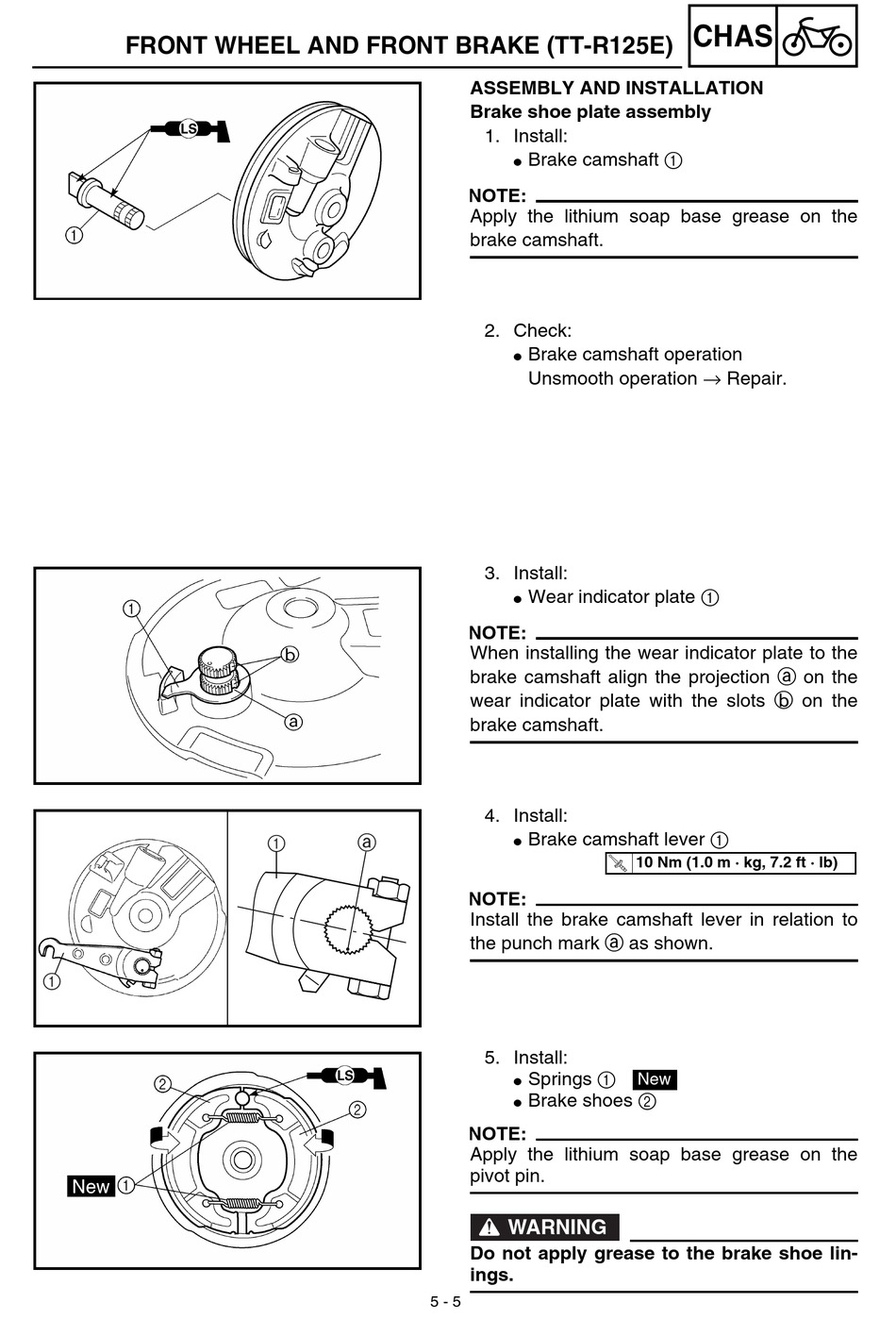

FRONT WHEEL AND FRONT BRAKE (TT-R125E)
1
a
1
5 - 5
ASSEMBLY AND INSTALLATION
Brake shoe plate assembly
1. Install:
Brake camshaft 1
G
NOTE:
Apply the lithium soap base grease on the
brake camshaft.
2. Check:
Brake camshaft operation
G
Unsmooth operation → Repair.
3. Install:
Wear indicator plate 1
G
NOTE:
When installing the wear indicator plate to the
brake camshaft align the projection a on the
wear indicator plate with the slots b on the
brake camshaft.
4. Install:
Brake camshaft lever 1
G
10 Nm (1.0 m · kg, 7.2 ft · lb)
NOTE:
Install the brake camshaft lever in relation to
the punch mark a as shown.
5. Install:
Springs 1
G
Brake shoes 2
G
NOTE:
Apply the lithium soap base grease on the
pivot pin.
WARNING
Do not apply grease to the brake shoe lin-
ings.
CHAS
New
