Follow the steps below to mount the thermostat/switch:
1.
Unpack thermostat/switch.

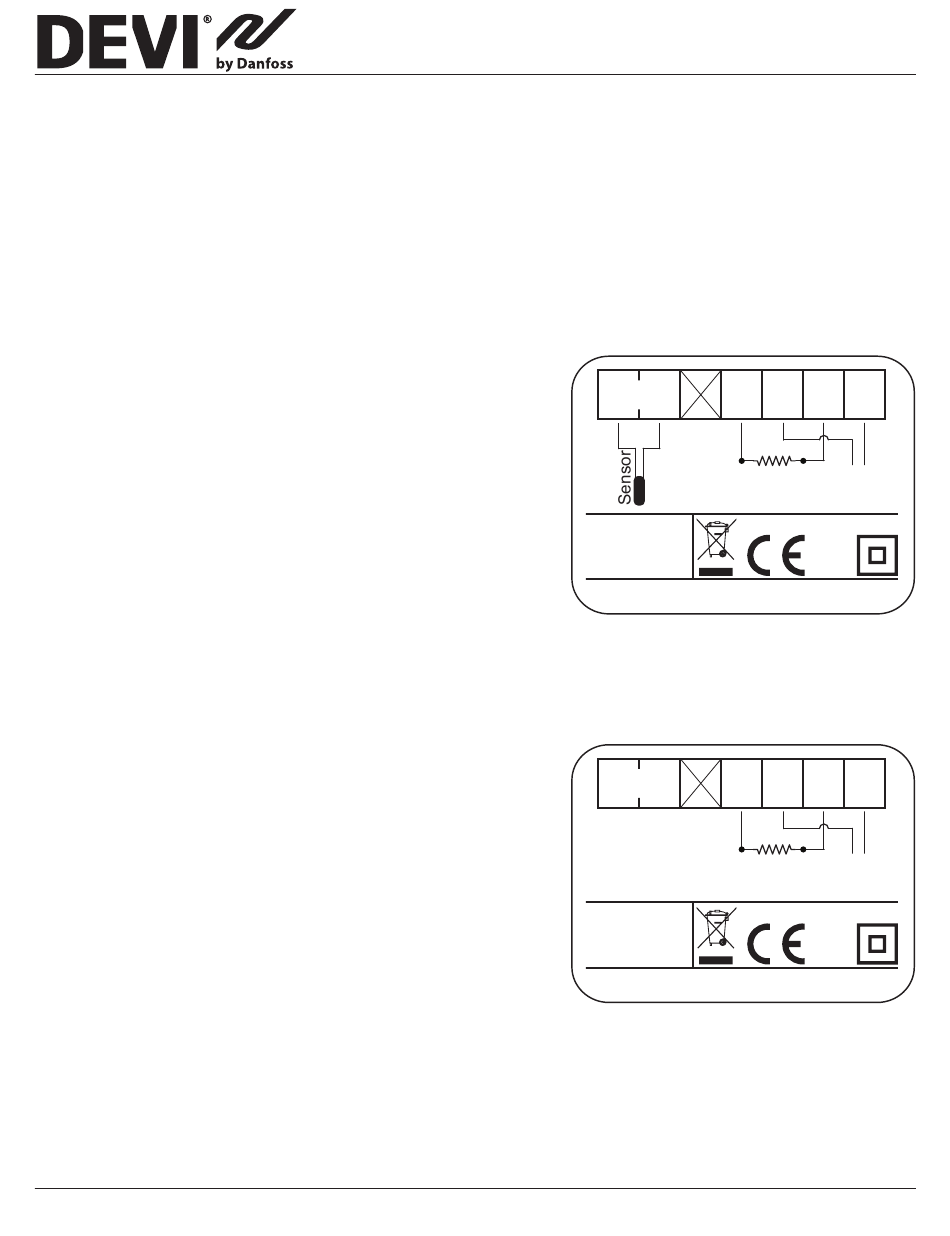

2.1. Connect the thermostat according to the connection
diagram.
The screen of the heating
cable must be connected to
the earth conductor of the
power supply cable by using
a separate connector.
Note: Always install the floor sensor in a conduit in
the floor.
2.2. Connect the switch ac-
cording to the connection
diagram.
3.
Fasten the thermostat/switch firmly to a flush
mounted wall box or an exterior wall box by driving
10
DEVIreg™ Smart
L
L
NTC
O
A
D
Maximum
Load 16 (1) A
Danfoss A/S
Nordborgvej 81
6430 Nordborg
Denmark
Standby maximum 0.4 Watt
L
L
NTC
O
A
D
Maximum
Load 16 (1) A
Danfoss A/S
Nordborgvej 81
6430 Nordborg
Denmark
Standby maximum 0.4 Watt
Installation Guide
L
L
N
N
O
A
D
Mains
220-240V~
50-60 Hz
IP21
T30
L
L
N
N
O
A
D
Mains
220-240V~
50-60 Hz
IP21
T30
