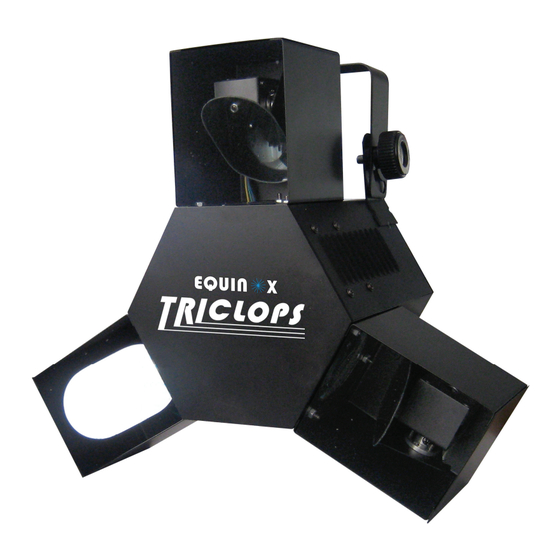

Equinox Systems TRICLOPS EQLED50 User Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Order code: EQLED50
user manual
w w w . p r o l i g h t . c o . u k

Advertisement

loading

Related Manuals for Equinox Systems TRICLOPS EQLED50

Summary of Contents for Equinox Systems TRICLOPS EQLED50

  • Page 1 Order code: EQLED50 user manual w w w . p r o l i g h t . c o . u k...

  • Page 2: Safety Instructions

    Equinox Triclops Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual...

  • Page 3: Operating Determinations

    Equinox Triclops Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 Equinox Triclops Technical specifications You should find inside the Equinox carton the following items: 1, Equinox Triclops 2, Power cable 3, Instruction manual Technical Specifications: DMX channels: 9 Voltage: AC 240V - 50Hz 72 Ultra bright LED’s (R: 24, G: 24, B:24) Fuse: 1 Amp Power Consumption: 20W Dimensions: 390 x 166 x 325mm...
  • Page 5 Equinox Triclops Overview Overview Back Identification: 1, Hanging bracket 2, DMX in 3, DMX out 4, Dip switches 5, IEC Power In/Out sockets 6, Fuse 7, Microphone 8, Sound sensitivity control 9, Cooling fan Bottom Side DMX Function Chart Channel Value Function 0-255...
  • Page 6 Equinox Triclops DMX Set up DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
  • Page 7 Equinox Triclops DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
  • Page 8 Equinox Triclops Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position Dip Switch position DMX Address...
  • Page 9 w w w . p r o l i g h t . c o . u k...
