BA 1858

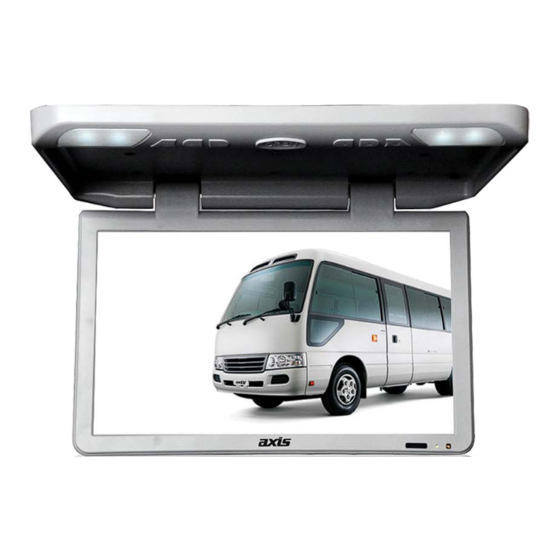

18.5" FLIP DOWN HD BUS MONITOR

SPECIFICATIONS

GENERAL

- Screen:

- Format:

- Resolution:

- Viewing Angle:

- Video System:

- Image Adjustment:

- Mounting:

- Inputs:

- Housing:

- Power Supply:

- Dimensions:

- Included:

INSTRUCTION MANUAL

18.5" (47cm)

16:9 Widescreen

1366 x 768 HD

Supports 1080p

85° (L/R) 75/85° (U/D)

PAL/NTSC Auto Switchable

Brightness/Colour/Contrast/Saturation

Fixed - Wall or Roof

HDMI, 2 x RCA Video

Robust Coated Metal

12/24 Volt DC (9-36V)

500(W) x 325(H) x 50(D)

Remote Control

Note: Battery NOT included

Need help?

Do you have a question about the BA 1858 and is the answer not in the manual?

Page 1 BA 1858 18.5” FLIP DOWN HD BUS MONITOR SPECIFICATIONS GENERAL - Screen: 18.5” (47cm) - Format: 16:9 Widescreen - Resolution: 1366 x 768 HD Supports 1080p - Viewing Angle: 85° (L/R) 75/85° (U/D) - Video System: PAL/NTSC Auto Switchable - Image Adjustment:...
Page 2 Safety Use Instructions and Precautions: Open the screen by hand. Working Voltage is DC9V-35V. Do not connect to AC 240V. Position the monitor away from damp and humid locations. High voltage inside! Do not disassemble. Installation position must be strong enough to support the unit’s weight and vibration while driving.
Page 3 3. Wiring Instructions: Signal Switching Next Menu Last Power On/Off Open Lighting Switch Lamp Lamp Wire Negative (BLACK) Power Wire Positive (RED) AV1 Input (YELLOW) AV2 Input (WHITE) Door Lamp Control Wire (Yellow) + Trigger Negative (BLACK) Positive (Red) HDMI Figure 1 a.
