Axis JS1709DVR Instruction Manual

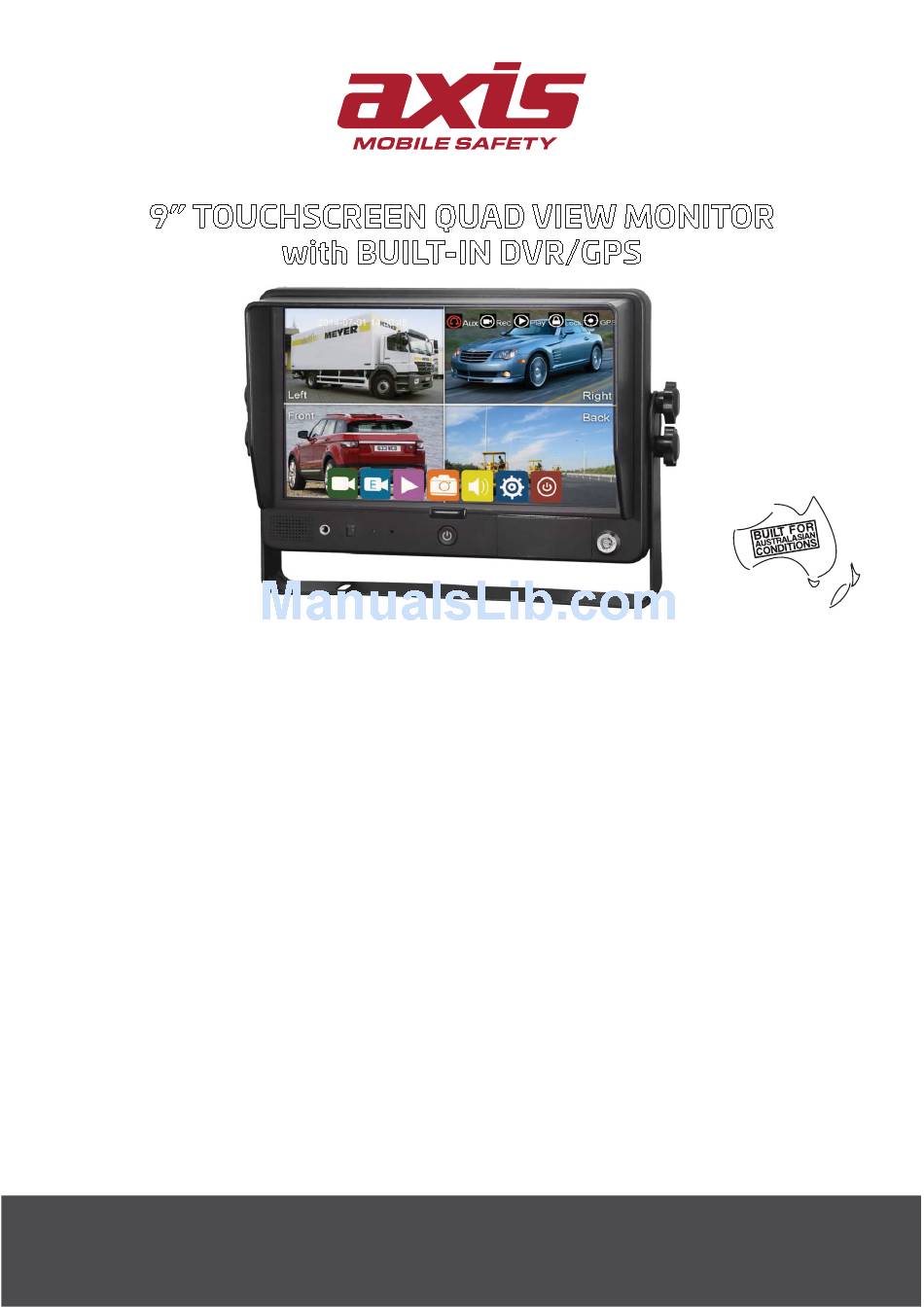

9" TOUCHSCREEN QUAD VIEW MONITOR

SPECIFICATIONS

MONITOR
- LCD: 9" Touch Screen
- Resolution: 800 x 480 RGB
- Touch Screen: Yes
- System Format: PAL/NTSC
- Inputs: 4 x 4-PIN, 1 x GPS, 1 x Speed Signal
- Input Triggers: 4 x Camera Input Triggers
- Outputs: 1 x RCA A/V
- Viewing Angle: U: 50°, D: 70°, R/L: 70°
- Screen Views: Quad, Triple 1, Triple 2, Split 1, Split 2,
Left, Right, Front, Back
- Guidelines: Yes, Adjustable
- Mirror Image: Yes, Selectable for Each Camera Input
- Camera ID: Yes, Camera Input Naming
- Display Adjustments: Brightness, Contrast, Saturation,
Hue, Backlight
- Audio: On-board Loudspeaker - 1W/8 ohm
- Menu: 8 Languages Available
- Voltage Range: 10-32Volts, Max 30W
- Protection: Short Circuit
- Operating Temp: -20° to +70°
- Dimensions: 232W x 157H x 40D
INCLUDED
- GPS Antenna - U-Mount Bracket
- IR Remote - Surface Mount Bracket
- Sun Shade - 2 x SD Card Lock Keys
- Monitor Harness
INSTRUCTION MANUAL
JS1709DVR
with BUILT-IN DVR/GPS
DVR
- Channels: 4, 3, 2, 1 Channel Recording
- GPS: Yes, GPS Logging
- Tamper Proof: Password Protected Menu
Lockable Micro SD Cards
- Motion Detection: Yes
- G-Sensor: Yes, Adjustable
- Card Support: 4 x 128GB Micro SD
- Recording Resolution: 704 x 576 or 352 x 288
- Recording Modes: Power On, Manual, Scheduled x 3,
Cycle, G-Sensor, Motion Detection,
Emergency, Over Speed
- Trigger Recording: CH 4 Trigger
- Snap Shot: Yes, Instant Image Capture
- User ID: Yes, Name ID
- Vehicle ID: Yes, Licence Plate
- Speed Settings: Speed Calibration, High and
Low Speed Settings
- Time/Date Set: Yes
- Reverse Warn Gauge: Yes
- Video File: MSV, AVI
- Video Playback: Independent Camera,
up to 4 Separate Files
- Codec Format: JPEG
- Recording Times: 448Hrs @ 352 x 288,
(Approx) 328Hrs @ 704 x 576 (Low Bit Rate),
164Hrs @ 704 x 576 (High Bit Rate)
- Battery Back Up: 1500mAh
- Power Management: Screen Off - 30sec, 1min, 5min, 10min
Back Up Battery - 1min, 2min, 3min,
2
YEAR
WARRANTY
5min
