Axis JS7000K Instruction Manual

JS7000K

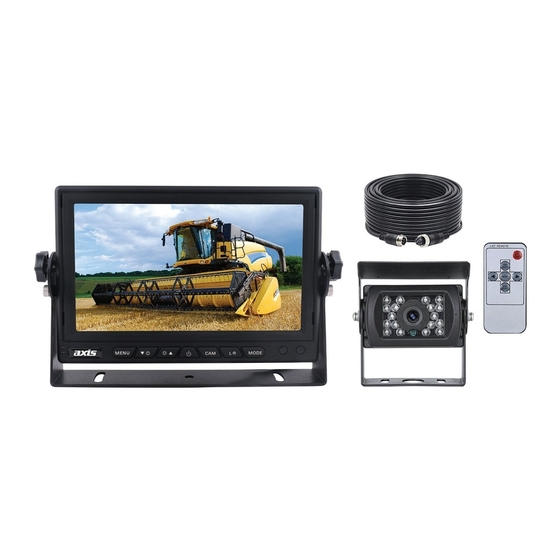

7 INCH MONITOR & CAMERA KIT
SPECIFICATIONS
JS7000 MONITOR
- TFT Panel: New Grade A LCD
- LCD Size: 178mm (7-Inch) Diagonal
- Display Format: 16:9
- Resolution: 800 x 480
- Brightness: < 500 CD/M2
- Viewing Angles: 70° Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connect: 2 x 4-Pin (Female)
- Reverse Trigger: Camera 2 Only
- Monitor View: Normal/Mirror Image Select
- Buttons: Illuminated
- Audio: On Board Speaker
- Menu: OSD
- Main Menu: Brightness/Contrast/Colour/Volume/
- Operating Temp: -20°C to +70°C
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: 180W x 122H x 28D mm (excluding bracket)
- Finish: Matt Black Rubber, Matt Metal
- Included: Stand Mount, U-Shape Mount, Remote Control,
Power Cable Assembly, Sunshade
INSTRUCTION MANUAL
CAMERA
- Image Sensor:
- Auto Lens:
- Electronic Shutter:
- Vertical Viewing Angle:
- Horizontal Viewing Angle:
- Signal System:
- Resolution:
- Sync System:
- Orientation:
- Night Vision:
- Illumination:
- Ingress Protection:
- Operating Temperature:
- Dimensions:
- Connection:
- Power Supply:
- Included:
Optional: Glass Mount Bracket (BKT101)
1
1/3" Sony CCD
f2.9mm
Auto
120°
90°
PAL
700 TV Lines
Internal
Mirror Image
Yes, 18 LED
0 Lux with IR on
IP67
-20°C ~ +70°C
70W x 45H x 60D mm
(Excl Bracket)
Terminated 4-Pin Male
12V DC
(From Monitor)
15m 4 Pin (Male) to 4 Pin
(Female) Extension Cable,
Mounting Bracket, Sunvisor
