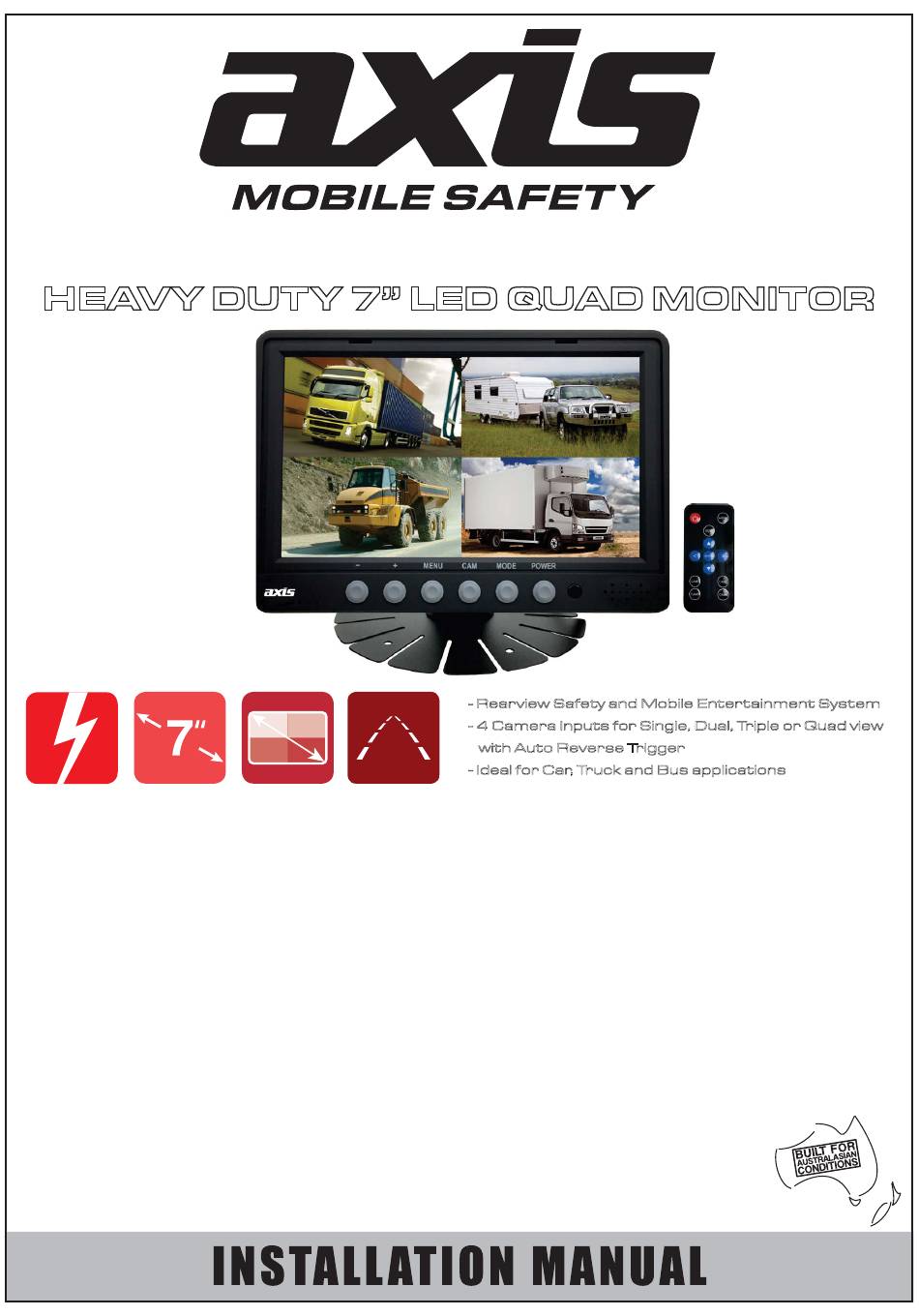

Axis JS021 Instruction Manual

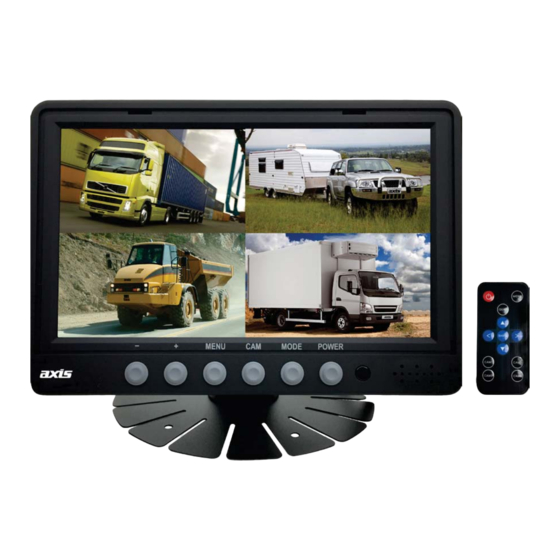

HEAVY DUTY 7" LED QUAD MONITOR
12 24
MULTIVOLT LCD MONITOR
- Monitor:
- Power Input:
- Power Consumption:
- Aspect Ratio:
- Video System:
- Resolution:
- Contrast Ratio:
- Viewing Angle:
- Operating Temp:
- Camera Inputs:
- Dimensions:
- Built to withstand Shock/Vibration/Moisture
- Built-In Speaker
- Parking Guidelines (can be disabled)
JS021
QUAD VIEW PARKING
GUIDELINES
178mm (7") TFT Active Matrix LCD
LED Backlighting
12V - 24V
10W Max
16:9 Widescreen
PAL
800 (W) X 480 (H)
400:1
70° x 70° x 60° x 70°
-20 ~ +70° C
4 x 4-Pin
180mm (W) x 123mm (H)
- Rearview Safety and Mobile Entertainment System
- 4 Camera Inputs for Single, Dual, Triple or Quad view
with Auto Reverse Trigger
- Ideal for Car, Truck and Bus applications
INCLUDED:
- Dash Mount Bracket
- Monitor Sunvisor
- Remote Control
- 2m 4 x 4-Pin Cable
- 2m Monitor Power/Cam
Trigger Loom
- AX4P-M/RCA-F 4 Pin to RCA
Adaptor
- Installation Hardware
- Installation Manual
2
1
YEAR
WARRANTY
