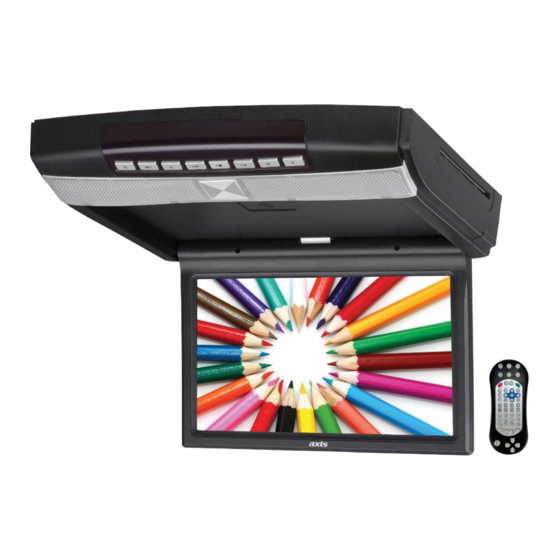

10.1 INCH ROOFMOUNT LED-TFT
MONITOR PLAYER SYSTEM
with BUILT-IN DVD-CD PLAYER
SPECIFICATIONS
GENERAL
- 10.1 Inch (25.7cm) LED-TFT Monitor
- 1080P Decoding
- 1024(W) x RGB x 600(H) Resolution
- LED Backlight
- 16:9 Screen Format
- PAL/NTSC Auto Colour System
- AV Input
- AV Output
- Video Input (Side Panel)
- Headphone Jack
- IR Transmitter (2 Ch for Wireless Headphones)
- Wireless FM Modulator (8 Ch for Audio Output)
- Function Buttons on Front Pod
- Built-In Dome Lights
- On-Board Stereo Speakers
- Universal Installation
- 12V (10~14V) DC Input / Negative Ground
- -10° ~ +60°C Operating Temperature
- 300(W) x 253(L) x 55(H)mm Dimensions (when closed)
AX1511
INSTRUCTION MANUAL
DVD/CD PLAYER/MULTIMEDIA
- DVD/CD/MP3/WMA/MPEG2/MPEG4/MKv/H.264/
AVS/VCI/RM/RM8/AVI/VP6/VP8 Playback Systems
- USB 2.0 Port
- SD/MMC/MS Card Reader
INCLUDED
- Full Function Remote Control
- Installation Hardware
- Installation Manual
2
YEAR
WARRANTY
www.audioxtra.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis AX1511
Summary of Contents for Axis AX1511
- Page 1 AX1511 10.1 INCH ROOFMOUNT LED-TFT MONITOR PLAYER SYSTEM with BUILT-IN DVD-CD PLAYER SPECIFICATIONS GENERAL DVD/CD PLAYER/MULTIMEDIA - 10.1 Inch (25.7cm) LED-TFT Monitor - DVD/CD/MP3/WMA/MPEG2/MPEG4/MKv/H.264/ - 1080P Decoding AVS/VCI/RM/RM8/AVI/VP6/VP8 Playback Systems - 1024(W) x RGB x 600(H) Resolution - USB 2.0 Port...
-
Page 2: Table Of Contents
Thank you for choosing this premium roof mount DVD multimedia system! We wish you countless hours of relaxation and entertainment from these versatile features. Numerous formats can seamlessly be played with viewing on its high definition colour monitor. There are three methods of enjoying the audio by selecting: 1) the on-board speakers, 2) the wireless IR transmission (using optional wireless headphones);... -
Page 3: Functions
FUNCTIONS: 1. Power Mode Switch 2. Play/Pause 3. Down/Eject 4. Up/Stop 5. Previous/Volume- 6. Menu 7. Next Track/Volume+ 8. Light Switch 9. Standby Switch 10. Open 11. Disc Slot DVD Connection Diagram: Audio output(L) Audio output(R) (Red) BAT (Black) (Blue) FM Antenna (Green) (Leave Disconnected) Please switch to change the polarity from door light trigger circuit... -
Page 4: Installation
INSTALLATION 1. Remove 4 mounting screws (main chassis) and release mounting plate. (picture 1) ① 2. Carefully align metal mounting plate with installation position and secure. Use correct screws to suit the vehicle and location. *NOTE: If the ceiling structure is curved or uneven, a backing board (eg plywood) may be required ②... -
Page 5: Remote Control/Battery Installation
REMOTE CONTROL SELECT Monitor menu key Battery Installation for Remote Control 1. Do not press remote control when disassembling the battery cover. 2. Remove battery when not in use for an extended period. 3. Normal battery life is about one year. Replace battery when the remote control range reduces. -
Page 6: Operation Of Dvd System/Usb/Sd
OPERATION OF DVD SYSTEM/USB/SD: Play DVD/CD/MP3 • Turn on the player and insert a disc with the label facing up. • The disc will automatically play. • To stop, press STOP button on remote. • To pause, press PLAY/PAUSE button on remote. •... -
Page 7: Troubleshooting & Cautions
TROUBLESHOOTING Faults Possible Reasons No sound and image Power is disconnected; the machine is not turned on No image Standby switch is pressed down; disc is scratched; signal wire is disconnected No sound Volume too low or the volume setup is not workable Black screen Incorrect setup of image luminance and contrast;... - Page 8 AX1511...
