GENERAL
- Screen:
22" (55cm) Grade A LCD Digital with LED Backlight
- Format:
16:9 Widescreen
- Protection:
Shock and Dust Ingress
- Resolution:
1024 x 768
- Viewing Angle:
178°/178°
- Contrast Ratio:
500:1
- Brightness:
500cd/m2
- Response Time:
<25ms
- Video System:
PAL/NTSC Auto Switchable
- Mounting:
Fixed - wall or roof type
- Application:
Bus, Coach, Train, Truck
- Signal Input:
1 RCA Video
- Working Temp:
-10° ~ 60°C
- Housing:
Metal Construction
- Power Supply:
DC12~24V Negative Ground (9~26V)
INCLUDED
- Instruction Manual
- 2 Year Warranty

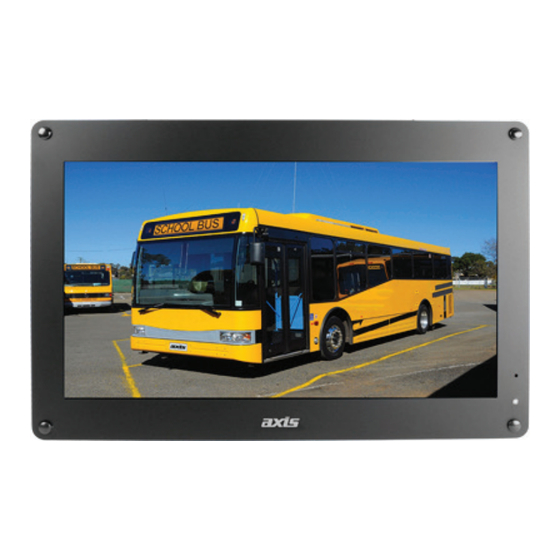

BA2218
22 INCH FIXED LED MONITOR
2
1
YEAR
WARRANTY
Advertisement
Related Manuals for Axis BA2218
Summary of Contents for Axis BA2218
- Page 1 BA2218 22 INCH FIXED LED MONITOR GENERAL - Screen: 22” (55cm) Grade A LCD Digital with LED Backlight - Format: 16:9 Widescreen - Protection: Shock and Dust Ingress - Resolution: 1024 x 768 - Viewing Angle: 178°/178° - Contrast Ratio:...
- Page 2 Use the included remote control to make adjustments on the unit: (1) Picture Adjustment Colour adjustments Menu Items Press < > keys and MENU keys to enter the following: 1. Brightness: Adjust Black Level 2. Contrast: Adjust White Level 3. Saturation: Colour Intensity 4.
-
Page 3: Troubleshooting
Troubleshooting Issue Solution No Image Check input source or power Displays “Input Not Supported” The display mode input signal is not supported Picture not screen Center Use “Automatic Correction” or manually adjust “horizontal position” and “vertical position”. Please refer to the Imaging Adjustment menu (2), page 2 Image is too dark or too bright Use “Automatic Correction”... - Page 4 BA2218...
