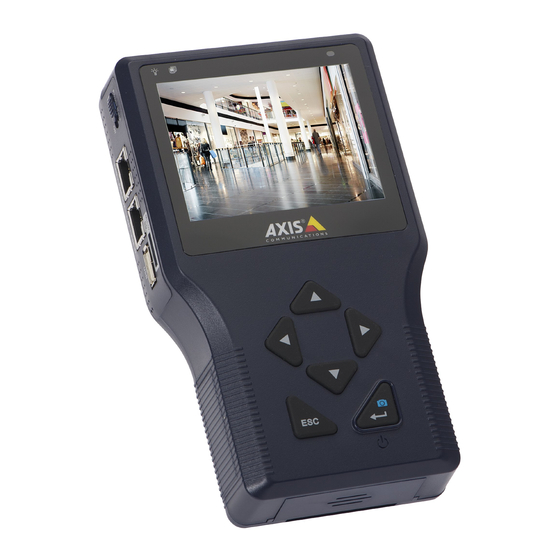

- Page 1 User’s Guide AXIS T8414 Installation Display...
-
Page 2: Electromagnetic Compatibility (Emc)
• find answers to resolved problems in the FAQ database. industry. Search by product, category, or phrases Australia - • report problems to Axis support by logging in to your This electronic device meets the private support area. requirements of the Radio communications (Electromagnetic Compatibility) Standard AS/NZS CISPR22. -
Page 3: Package Contents
Power supply with power cable 12 V DC Adapter Battery 7.4V Li-ion Battery Pack 2200mAh Cables • BNC Cable • Network Cable Printed materials AXIS T8414 User’s Guide (this document) Included accessories • Soft carrying case • Terminator block • Car charger... - Page 4 It offers user-friendly features such as touchscreen, zoom and snapshot functions. AXIS T8414 can connect directly to a camera, or to a network, and search for Axis network video products. An Axis camera with built-in PoE support can even be powered directly by AXIS T8414, giving installers greater flexibility.
-
Page 5: Hardware Overview
AXIS T8414 User’s Guide Page 5 Hardware overview Stylus slot AV in Data indicator LED Power indicator LED Light sensor LCD screen Navigation keys Start/Enter ESC key Snapshot key POWER on/off Power bank on/off Charging LED CAT5 Cable LAN/PoE OUT... -
Page 6: Unit Connectors
The LED will stay lit while the AXIS T8414’s battery is charging. Battery The AXIS T8414 is powered by a rechargeable Li-ion battery pack that takes approximately 4 hours to charge, and provides the AXIS T8414 with up to 3 hours run time. - Page 7 Page 7 Power up 1. To power up the AXIS T8414, first set the Power switch to the “ON” position. 2. Press the Start key and hold for 3 seconds. 3. The Power indicator lights up. and a progress bar is displayed on the screen.
-
Page 8: Viewing Images
When zooming into the view (see Digital zoom below) the camera's own default resolution is used instead, to provide greater detail. Press the ESC key on the AXIS T8414 front panel at any time to exit the viewing screen. Digital zoom, PT mode, and Flip view - all cameras Zoom - Tap ZOOM on the screen for digital zoom. -
Page 9: Cameras With Optical Zoom
AXIS T8414 User’s Guide Page 9 Cameras with optical zoom For cameras that support optical zoom, this is controlled by the following: Press and hold the Up or Down navigation key for continuous optical zoom, in or out. • Press and release the Up or Down navigation key for optical zoom in single steps, in or •... -
Page 10: Menus - Main Menu
Page 10 AXIS T8414 User’s Guide Menus - Main menu Button Function Main Menu. Return, go to previous page. Enter, opens a submenu or saves settings. PoE indicator Battery status Connect to an Axis network camera. View analog camera connected... -
Page 11: Device Search
IP address to enable the connection. This may take a few seconds to complete. Connect Connect a network cable from the camera’s network port to one of LAN ports on the AXIS T8414. In the Main menu tap IP camera and Connect. Waiting will appear on the LCD display. When the camera is connected successfully, its image will display in the screen. -
Page 12: Network Cable Test
Video in Test analog video by connecting the BNC cable from the camera's video output to the AXIS T8414 video input port. Tap the AV In icon in the Main Menu, and the video signal will be displayed on the LCD screen. -
Page 13: Power Over Ethernet
AXIS T8414 User’s Guide Page 13 Power over Ethernet AXIS T8414 delivers PoE to Axis network video products with PoE support either from the unit's battery or from PoE by-pass. Tap this icon to turn on and off Power over Ethernet. PoE Setup... - Page 14 Page 14 AXIS T8414 User’s Guide PoE Measurement Display Select the desired combination of PoE Measurement information from the drop-down list, including Voltage (V), Current (I), and Power Consumption (P). Enable PoE after Tester Bootup To enable PoE while the Tester is booting up, please select <ON>...
-
Page 15: Setup - Ip Connection
AXIS T8414 - The IP address can be set to DHCP or to a fixed address. DHCP is the default set- ting and should be used in most situations, even when there is no actual DHCP server available via a network. -
Page 16: Setup - Ip Camera
Tap the Setup - AV icon to open the Video Display setup page, from where you can adjust video brightness, sharpness and contrast. Use the up or down keys on the AXIS T8414 front panel to move among the items, or tap the icon on the right-side of the value indicator. To adjust the value, press the left/right keys on the front panel or tap the slider in the page. -
Page 17: Snapshot Function
AXIS T8414 User’s Guide Page 17 Snapshot Function Snapshot key In the IP Camera viewing mode, press the Snapshot key on the AXIS T8414 front panel to save the current image Edit Once the Snapshot key is pressed, the Snapshot editing page will open. -
Page 18: Video Recording
Page 18 AXIS T8414 User’s Guide Video Recording The Tester supports Video Recording, Video Setup, Video File Management and Video Playback function for camera live views when necessary. Implement Video Recording In the camera’s live view mode, tap the text “REC” on the right top corner of the live view screen to start Video Recording. - Page 19 AXIS T8414 User’s Guide Page 19 Assign a storage location (Tester/ USB/ SD) located on the top of the setup page and save the videos by tapping the radio button to the left side of the selected option. Enter the file name and description for the snapshot.
-
Page 20: System Setup
Complete Update - Check this option if you would like a complete installation of every component in the firmware. If this option is not checked, only the changes in the firmware will be upgraded. Restore to Factory Defaults - Restore the AXIS T8414 system to factory default by tapping the Default button,... -
Page 21: Alternative Connection Methods
AXIS T8414 User’s Guide Page 21 Auto Shutdown - To save power, tap the drop-down list to choose the amount of idle time before AXIS T8414 shuts down. Alternative connection methods External powerbank Connect a camera to PoE out, connect a powerbank to PSE IN, set the Powerbank’s switch to the... -
Page 22: Technical Specifications
Page 22 AXIS T8414 User’s Guide Technical Specifications Function/ Item Specification group Model AXIS T8414 Installation Display Display Color LCD Field Display 3.5 inches Resolutions 320x240 Video Image settings Autosensing Network IP Setting • Static IP address • DHCP General... - Page 24 Ver.1.00 User’s Guide Printed: January 2012 AXIS T8414 Part No. 45360 © Axis Communications AB, 2012...
