Quick THRUSTERS CONTROLS TCD 2022 Installation And Use Manual page 20

OPERATION
EN

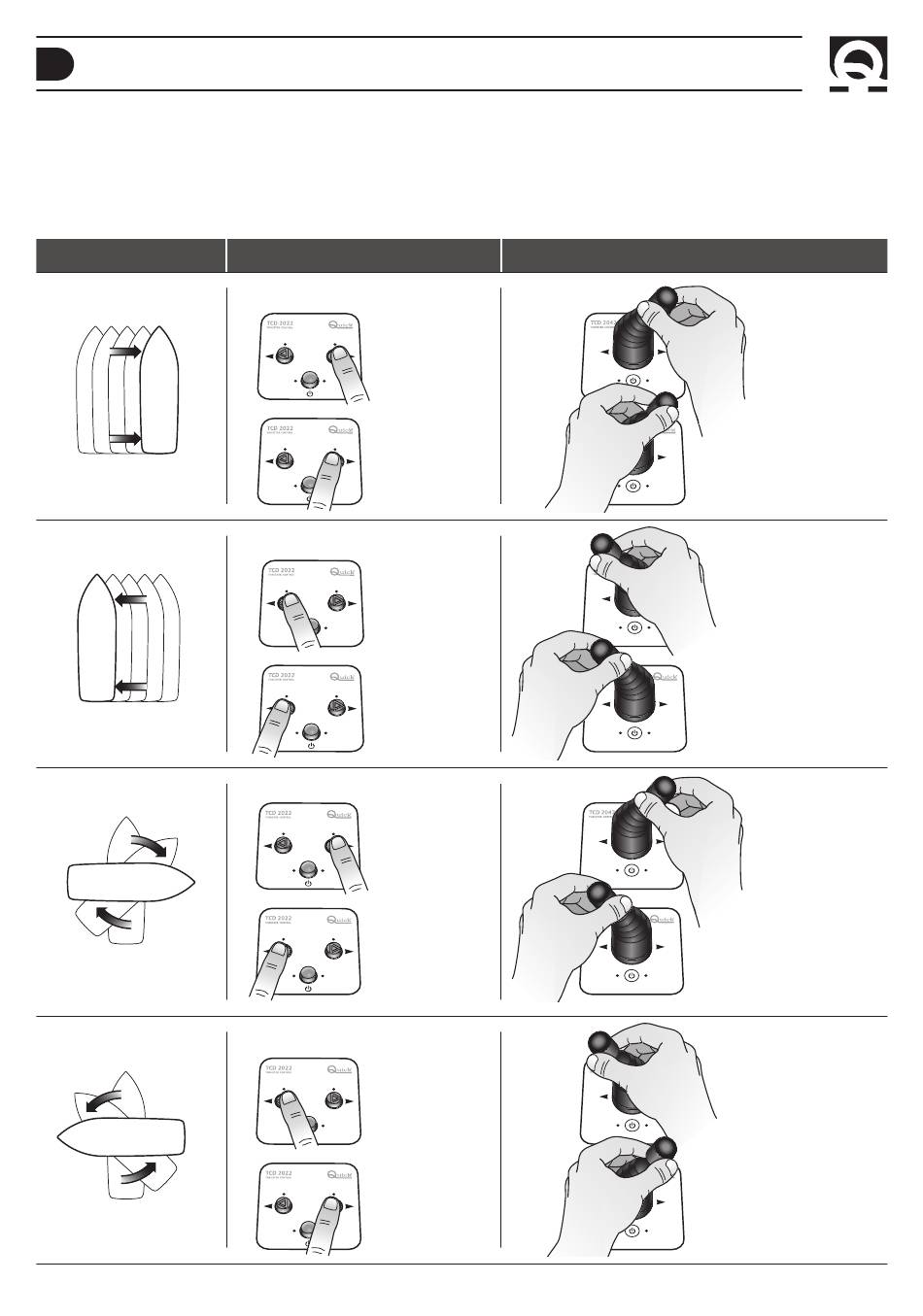

COMBINED OPERATION OF BOW AND STERN THRUSTERS
The combination of bow and stern thrusters gives maximum possibility of manoeuvring the boat, since the bow and stern
can be moved independently of each other.
This allows the boat to be moved sideways in both directions and to rotate the boat in a clockwise and anticlockwise
direction.
BOW + STERN
SIDE MOVEMENT RIGHT
SIDE MOVEMENT LEFT
CLOCKWISE ROTATION
ANTICLOCKWISE ROTATION
20
TCD 2022
RIGHT DIRECTION
BUTTON
RIGHT DIRECTION
BUTTON
LEFT DIRECTION
BUTTON
LEFT DIRECTION
BUTTON
RIGHT DIRECTION
BUTTON
LEFT DIRECTION
BUTTON
LEFT DIRECTION
BUTTON
RIGHT DIRECTION
BUTTON
TCD 2042
LEVER RIGHT
LEVER RIGHT
LEVER LEFT
LEVER LEFT
LEVER RIGHT
LEVER LEFT
LEVER LEFT
LEVER RIGHT
TCD2022 -TCD2042 THRUSTER CONTROLS REV001A
