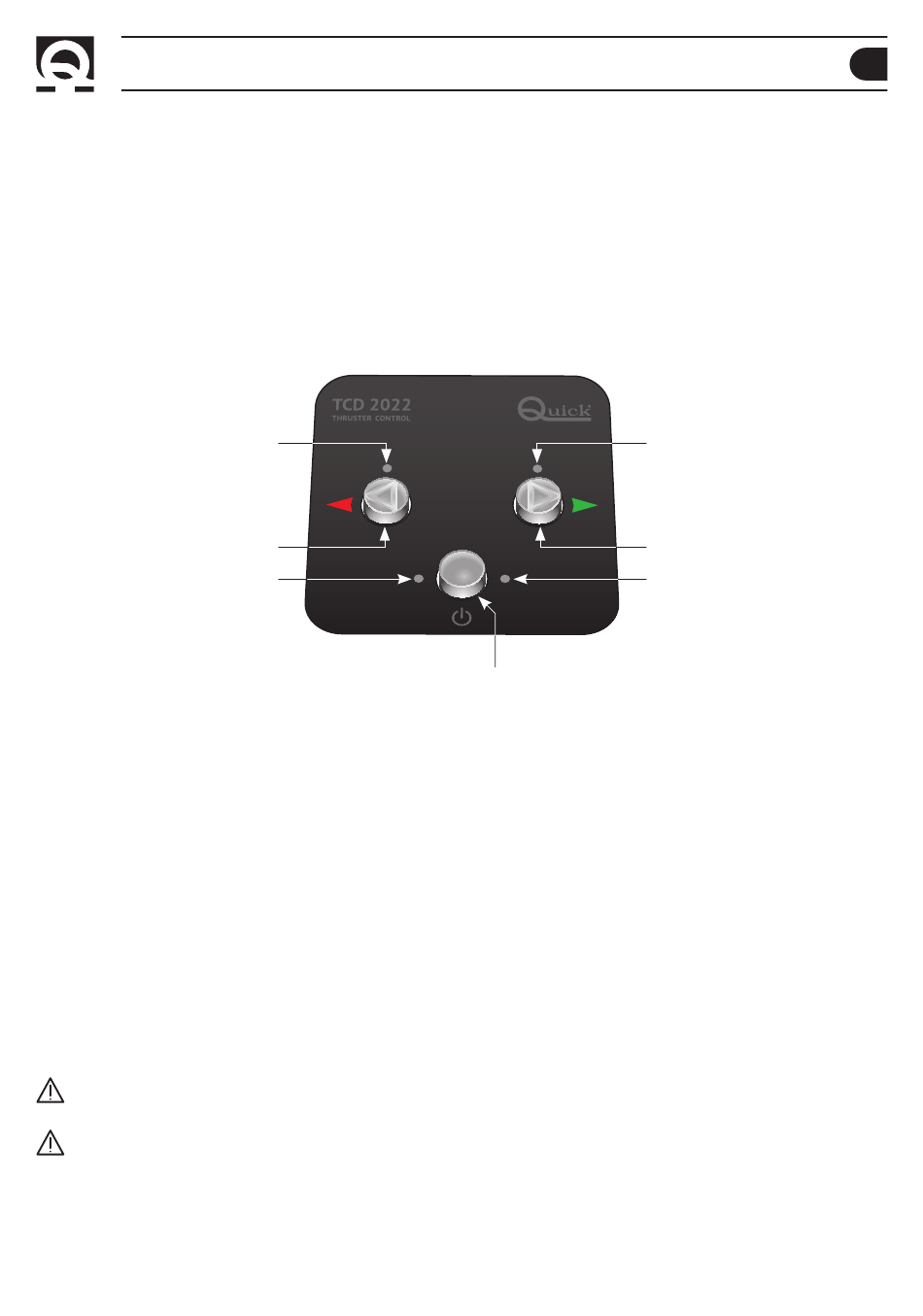

TCD 2022 CONTROL PANEL
The user interface is composed of:
• 1 enablement button
• 2 direction buttons
• 2 enablement Leds
• 2 direction Leds
LEFT DIRECTION LED
LEFT DIRECTION BUTTON
ENABLEMENT LED
Enablement button
The button enables or disables the control panel.
Direction buttons
The right direction button moves the bow or the stern of the boat to the right depending on which thruster is controlled.
The left direction button moves the bow or the stern of the boat to the left depending on which thruster is controlled.
Enablement Leds
The enablement Leds indicate the enabled/disabled state of the control panel.
Direction Leds
The direction Leds indicate the movement of the boat to the right or left.
All Leds are also used to signal any errors or problems.
WARNING: practice controlling the thruster in open water, to avoid damaging the boat with accidentally wrong
manoeuvres.
WARNING: make sure no swimmers or floating objects are in the vicinity before switching on the thruster.
TCD2022 -TCD2042 THRUSTER CONTROLS REV001A
ENABLEMENT BUTTON
OPERATION
RIGHT DIRECTION LED
RIGHT DIRECTION BUTTON
ENABLEMENT LED
