3.7 Debug Adapter

BRD8010A STK/WSTK Debug Adapter is an adapter board which plugs directly into the Debug Connector and the Simplicity Connector
on the mainboard and combines selected functionality from these two to a smaller footprint 10-pin connector which is more suitable for
space constrained designs.
For versatility, the Debug Adapter features three different 10-pin debug connectors:
• Silicon Labs Mini Simplicity Connector
• ARM Cortex 10-pin Debug Connector
• Silicon Labs ISA3 Packet Trace
The ARM Cortex 10-pin Debug Connector follows the standard Cortex pin-out defined by ARM and allows the Starter Kit to be used to
debug hardware designs that use this connector.
The ISA3 connector follows the same pin-out as the Packet Trace connector found on the Silicon Labs Ember Debug Adapter (ISA3).
This allows the Starter Kit to be used to debug hardware designs that use this connector.
The Mini Simplicity Connector is designed to offer advanced debug features from the Starter Kit on a 10-pin connector:
• Serial Wire Debug (SWD) with SWO
• Packet Trace Interface (PTI)
• Virtual COM Port (VCOM)
• AEM Monitored voltage rail
Note: Packet Trace is only available on Wireless STK Mainboards. MCU Starter Kits do not support Packet Trace.
Pin number Function
1 VAEM
2 GND
3 RST
4 VCOM_RX
5 VCOM_TX
6 SWO
7 SWDIO
8 SWCLK
9 PTI_FRAME
10 PTI_DATA
silabs.com | Building a more connected world.
VAEM
1
RST 3
VCOM_TX 5
SWDIO 7
PTI_FRAME 9

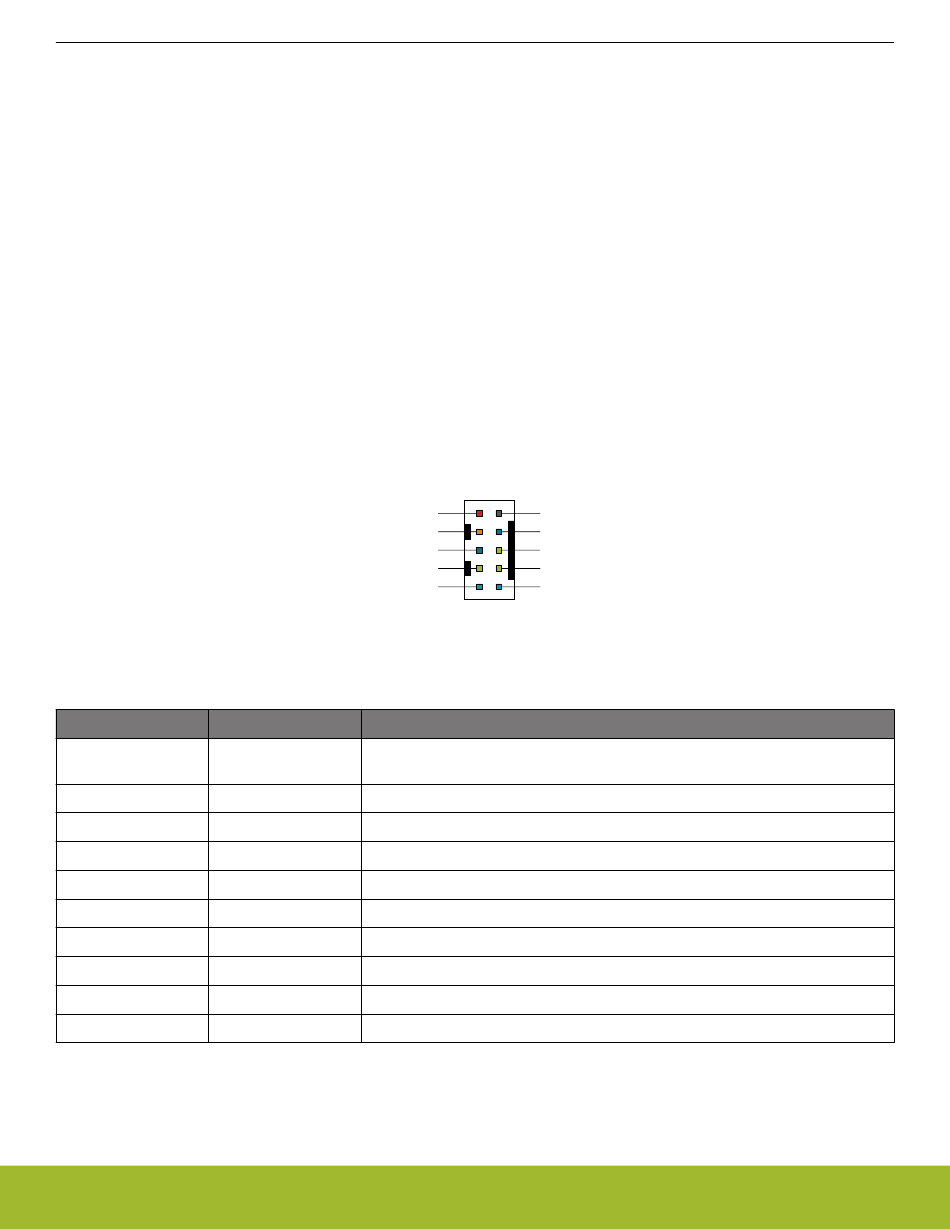

Figure 3.6. Mini Simplicity Connector
Table 3.4. Mini Simplicity Connector Pin Descriptions
Description
Target voltage on the debugged application. Supplied and monitored by the AEM
when power selection switch is in the "AEM" position.
Ground
Reset
Virtual COM Rx
Virtual COM Tx
Serial Wire Output
Serial Wire Data
Serial Wire Clock
Packet Trace Frame Signal
Packet Trace Data Signal
UG190: EZR32HG 868 MHz 16 dBm Wireless Starter Kit User's Guide
GND
2
VCOM_RX
4
6 SWO
8 SWCLK
PTI_DATA
10
