Summary of Contents for Bartscher D15000
- Page 1 D15000 200128...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-01-23...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Boiling water and keeping it warm; –... -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Tea/hot water dispenser D15000 200128 Art. No.: Material: stainless steel (CNS 18/8) Lid material: stainless steel (CNS 18/8) Volume, in l: Temperature range, min.–max., in °C: 20 - 100 Number of taps: Number of fill level indicators:... -
Page 12: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Tank handle (2 pcs) 2. Lid with holder 3. Steam outlet hole in the lid 4. Tea brewer 5. Tea strainer 6. Tea brewer fill level indicator 7. Tea outlet tap 8. -
Page 13: Functions Of The Appliance

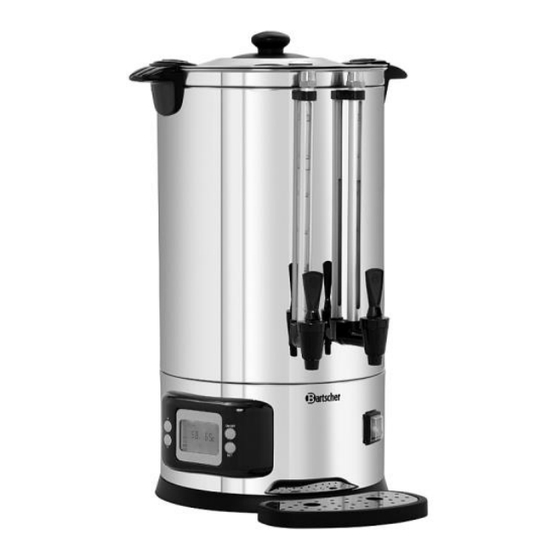

Installation and operation Functions of the Appliance The tea and hot water dispenser with a total capacity of 15 litres keeps both tea and hot water at the right temperature over a long period of time. Availability may be easily be monitored via two fill level indicators. Installation and operation Installation Positioning... -
Page 14: Operation
Installation and operation • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 15 Installation and operation Before Use 1. Before use, clean the appliance observing instructions in section 6.2 'Cleaning'. WARNING! It is important that only fresh potable water is poured into the water tank. Do not fill the appliance with any non-potable liquids, like acids, lyes, oils, nitrates, etc.! NOTE! To reduce heating time and save energy, the tank may also be filled with...
- Page 16 Installation and operation Control Elements Fig. 2 16. Display 17. Temperature indicator 18. Time indicator 19. ON/OFF switch 20. SET key 21. Setting value decrease key 22. Setting value increase key Settings The appliance is started by pressing the ON/OFF switch on the control unit. The display shows the default temperature (68˚C) and the actual water temperature in the water tank.
- Page 17 Installation and operation 2. Press the '+' key to increase the temperature and the '-' key to decrease the temperature. 3. Finally, press the 'SET' key to confirm the setting. Operating Time Change 1. Press the 'SET' key to change the operating time setting. The time may be set in the range of 0–24 hours.
- Page 18 Installation and operation Water Dispensing / Filling 1. Use hot water to prepare required beverages (tea, coffee, instant coffee, bouillon, etc.). 2. When preparing tea one must remember that brewing different types of tea requires various water temperatures. Follow the instructions on packages. 3.
- Page 19 Installation and operation 7. Check the filling level of the water tank and tea brewer when the appliance is in operation; the water level can be read from the respective fill level indicators. ATTENTION! Check the water level regularly to prevent appliance overheating. Never use the appliance without water.
- Page 20 Installation and operation Overheating/Dry-Run Protection The appliance is equipped with the overheating/dry operation protection. In the case of accidental start-up without water or with its insufficient amount, the protection will be activated and the appliance will be automatically switched off. To reset the appliance, perform the following steps: 1.
-
Page 21: Cleaning And Descaling
Cleaning and Descaling Cleaning and Descaling Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. -
Page 22: Descaling
Disposal Descaling Inappropriate water may lead to scale deposits building up. Limestone deposits result in longer heating time and might cause damage to the appliance. NOTE: To avoid limestone deposits, it is recommended to use filtered water! ATTENTION! Lack of regular descaling of the appliance, as set forth in the instruction manual, may constitute a ground for rejecting warranty claims.
