Summary of Contents for Bartscher D3000
- Page 1 D3000 200043...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-05-09...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing hot water for coffee, tea or baby food. This appliance is intended for use in households and similar places, e.g.: –... -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data

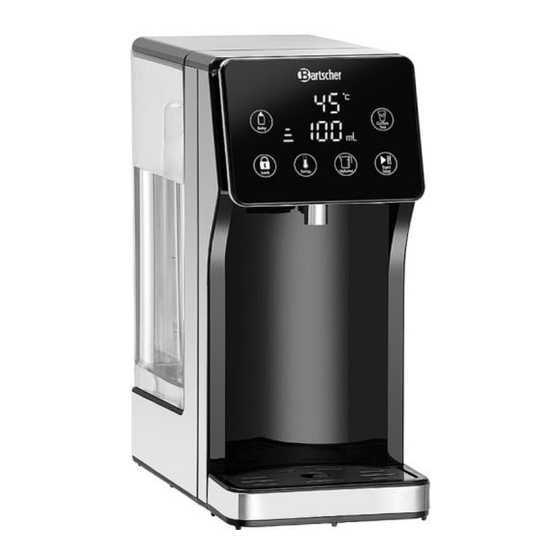

Technical Data Technical Data Technical Specifications Name: Water heater D3000 200043 Art. No.: Material: plastic, stainless steel Tank volume, in litres: Temperature range, min.–max., in °C: 40 - 100 Temperature control, levels: Quick selection keys, quantity: Connected load: 2,2 - 2,6 kW | 220-240 V | 50/60 Hz... -
Page 12: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Rear view Fig. 1 10 / 22 200043... -
Page 13: Functions Of The Appliance
Technical Data Key to Fig. 1 1. Water tank lid 2. Water tank MAX marking 3. Water tank 4. Water tank MIN marking 5. Drip grate 6. Drip tray 7. Rubber feet (4 pcs) 8. Housing 9. Drain tube 10. Control panel 11. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. Remove the film slowly, so no glue residues are left. -
Page 15: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 16 Installation and operation Before Use 1. Before use, clean the appliance observing instructions in section 6.2 'Cleaning'. 2. Dry all cleaned elements and surfaces thoroughly. 3. Fix the drip tray on the appliance base and insert the drip grate. WARNING! It is important that only fresh potable water is poured into the water tank.
- Page 17 Installation and operation Control Elements / Displayed Messages / Settings Fig. 3 1. Temperature indicator The set temperature appears on the display. 2. Coffee/Tea quick selection key Pressing this key will start water preparation at the default temperature of 98°C. To serve, press the Start/Stop key. 3.
- Page 18 Installation and operation 7. Lock key By pressing the lock key for 3–5 seconds, the operating panel keys can be locked. After 10–15 seconds, the keys are automatically locked again when not in use. 8. Baby food quick selection key Pour the desired amount of powdered milk into the bottle or cup.
- Page 19 Installation and operation Preparing and Dispensing Hot Water 1. Use hot water to prepare required beverages (tea, coffee, instant coffee, bouillon, baby food, etc.). Note: When preparing tea one must remember that brewing different types of tea requires various water temperatures. Follow the instructions on packages. 2.
- Page 20 Installation and operation Drip Tray Emptying 1. When the drip tray is full, empty it by holding the appliance with one hand while lifting the drip tray with the other hand and detaching it from the hooks on the base. 2.
-
Page 21: Cleaning And Descaling
Cleaning and Descaling Switching the Appliance OFF 1. After use, disconnect the appliance from the mains power supply (pull the plug out). Cleaning and Descaling Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. -
Page 22: Descaling
Cleaning and Descaling Fig. 6 9. Reinstall the appliance and attach all the components removed for cleaning (drip tray with drip grate, water tank, lid) to the appliance. Descaling Inappropriate water may lead to limescale deposits building up. Limescale deposits result in longer heating time and might cause damage to the appliance. -
Page 23: Possible Malfunctions
Possible Malfunctions – clean the water tank after descaling; – fill the water tank again with fresh water; – prepare selected beverages with hot water at an appropriate temperature and water amount settings. Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. -
Page 24: Disposal
Disposal Problem Cause Solution Appliance does Water outlet in the water Perform descaling not work tank is clogged Press the water amount setting key for 3 seconds The water level sensor in Reinstall water level sensor or the water tank is loose contact the service company Appliance does The appliance needs to be...
