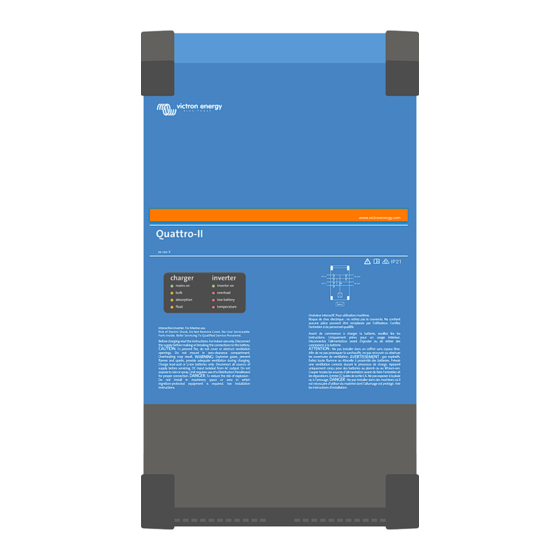

Quattro-II 2x120V
Rev 00 - 05/2023
This manual is also available in HTML5.

Advertisement

Table of Contents
loading

Summary of Contents for Victron energy Quattro-II 2x120V

  • Page 1 ENGLISH Quattro-II 2x120V Rev 00 - 05/2023 This manual is also available in HTML5.
  • Page 2: Table Of Contents

    Quattro-II 2x120V Table of Contents 1. IMPORTANT SAFETY INSTRUCTIONS - Save these instructions! ............1 2. Description ..........................3 2.1. 120/240V input and output, or 120V input and output (always 120V output when in inverter mode) ....3 2.2. Boats, vehicles and other stand-alone applications ..............3 2.3.
  • Page 3 Quattro-II 2x120V D. Three phase connection ......................32 E. Charge algorithm ........................33 F. Temperature compensation ...................... 34 G. Power flow diagrams ......................35 H. Dimensions ......................... 38...
  • Page 4: Important Safety Instructions - Save These Instructions

    Quattro-II 2x120V 1. IMPORTANT SAFETY INSTRUCTIONS - Save these instructions! In general Please read the documentation supplied with this product first, so that you are familiar with the safety signs en directions before using the product. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only.
  • Page 5 Quattro-II 2x120V Refer to the battery manufacturer's manual for information on transport, storage, charging, recharging, and disposal of the battery. Symbol on the enclosure Symbol on the enclosure Caution, risk of electric shock Refer to the operating instructions IP21 Protected from touch by fingers and objects greater than 12 millimetres. Protected from condensation.
  • Page 6: Description

    Quattro-II 2x120V 2. Description 2.1. 120/240V input and output, or 120V input and output (always 120V output when in inverter mode) The AC input can be supplied from a split-phase 120/240V source or a single-phase 120V source. When an AC source is available, the Quattro-II will feed through the AC to its output. The output will therefore mirror the AC input.
  • Page 7: Battery Charger

    Quattro-II 2x120V Programmable relay The Quattro-II is equipped with a programmable relay. The relay can be programmed for different applications, for example as a starter relay for a generator. Programmable analog/digital input/output ports (Aux in 1 and Aux in 2, see appendix) The Quattro-II is equipped with 2 analog/digital input/output ports.
  • Page 8: Operation

    Quattro-II 2x120V 3. Operation 3.1. On/Off/Charger Only Switch When switched to ‘on’, the Quattro-II is fully functional. The inverter will come into operation, and the LED ‘inverter on’ will light An AC voltage connected to the ‘AC in’ terminal will be switched through to the ‘AC out’ terminal, if within specifications. The inverter will switch off, the ‘mains on’...
  • Page 9: Led Indications

    Quattro-II 2x120V b. Switch rapidly back from ‘charger only’ to ‘on’ and leave the switch in this position for ½ to 2 seconds. c. Switch once more rapidly from ‘on’ to ‘charger only’ and leave the switch in this position.
  • Page 10 Quattro-II 2x120V Low battery alarm The inverter has switched off due to low battery voltage. The "low battery" LED is blinking. Temperature pre-alarm The internal temperature is reaching a critical level. The "temperature" LED is blinking. Temperature alarm The inverter has switched off due it's internal temperature being too high.
  • Page 11 Quattro-II 2x120V Bulk charging The AC input voltage is switched through and the charger operates in bulk mode. The "bulk" LED is on. BatterySafe The mains voltage is switched through and the charger is on. However, the set absorption voltage has not yet been reached. The "bulk"...
  • Page 12: Shut Down Procedure

    Quattro-II 2x120V PowerAssist The AC input is switched through, but the load requires more current than the preset maximum input current. The inverter is switched on to supply the required additional current. The "mains on" LED is on and the "inverter" LED is blinking.
  • Page 13: Installation

    Quattro-II 2x120V 4. Installation This product may only be installed by a qualified electrical engineer. This product is not suitable for direct connection to a vehicle's electrical system. It should be connected to a dedicated DC system that includes a dedicated service or house battery, appropriate fusing, and the appropriate gauge of DC wiring.
  • Page 14 Quattro-II 2x120V WARNING – RISK OF EXPLOSIVE GASES) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE SERVICING THE UNIT IN THE VICINITY OF THEBATTERY, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
  • Page 15: Connection Of Battery Cables

    Quattro-II 2x120V 4.2. Connection of battery cables In order to utilize the full capacity of the product, batteries with sufficient capacity and battery cables with sufficient cross-section should be used. The DC cables must be copper and rated 90ºC (194ºF). See table.
  • Page 16: Connection Of The Ac Cabling

    Quattro-II 2x120V 4.3. Connection of the AC cabling This product is a safety class I product (supplied with a ground terminal for safety purposes). Its AC input and/or output terminals and/or grounding point on the outside of the product must be provided with an uninterruptible grounding point for safety purposes.
  • Page 17: Optional Connections

    Quattro-II 2x120V An earth leakage circuit breaker and a fuse or circuit breaker rated to support the expected load must be included in series with the output, and cable cross-section must be sized accordingly. • AC-out-2 A second output is available that disconnects its load in the event of battery operation. On these terminals, equipment is connected that may only operate if AC voltage is available on AC-in-1, e.g.
  • Page 18: Three-Phase Operation

    Quattro-II 2x120V • If a positive and a negative DC distribution point is used, the cross-section of the connection between the batteries and the DC distribution point must at least equal the sum of the required cross-sections of the connections between the distribution point and the Quattro-II units.
  • Page 19: Configuration

    Quattro-II 2x120V 5. Configuration This section is intended mainly for stand-alone applications. Settings may only be changed by a qualified electrical engineer. Read the instructions thoroughly before implementing changes. During setting of the charger, the AC input must be removed.
  • Page 20 Quattro-II 2x120V Input frequency range Input frequency range accepted by the Quattro-II. The Quattro-II synchronises within this range with the AC input frequency. The output frequency is then equal to the input frequency. Adjustability: 50, 60 or 45 – 65 Hz.
  • Page 21 Quattro-II 2x120V The standard setting is the most suitable for Victron Gel Deep Discharge, Gel Exide A200, and tubular plate stationary batteries (OPzS). This setting can also be used for many other batteries: e.g. Victron AGM Deep Discharge and other AGM batteries, and many types of flat-plate flooded batteries.
  • Page 22: Configuring The Quattro-Ii

    Quattro-II 2x120V BoostFactor Change this setting only after consulting with Victron Energy or with an engineer trained by Victron Energy! Programmable relay The relay can be programmed for all kinds of other applications, for example as a starter relay for a generator.
  • Page 23: Maintenance

    Quattro-II 2x120V 6. Maintenance The Quattro-II does not require specific maintenance. It will suffice to check all connections once a year. Avoid moisture and oil/soot/vapours, and keep the device clean. Page 20 Maintenance...
  • Page 24: Error Indications

    Quattro-II 2x120V 7. Error Indications With the procedures below, most errors can be quickly identified. If an error cannot be resolved, please refer to your Victron Energy supplier. Our recommendation is to use the Victron Toolkit app to find the description of all possible LED alarm codes. See here for download information: https://www.victronenergy.com/support-and-downloads/software#victron-toolkit-app.
  • Page 25: Special Led Indications

    Quattro-II 2x120V Problem Cause Solution The charger does not Quattro-II is in ‘Bulk protection’ mode Check your batteries. operate. thus, the maximum bulk charging You can reset the error mode time of 10 hours is exceeded. ‘Bulk’ LED flashes and by switching off and back on ‘Mains on’...
  • Page 26: Ve.bus Led Indications

    Quattro-II 2x120V Absorption and float The battery temperature as measured has an extremely unlikely value. The sensor is LEDs flash synchronously probably defective or has been incorrectly connected. The device will remain in normal (simultaneously). operation. If the "inverter on" LED flashes in phase opposition, this a VE.Bus error code (see further on).
  • Page 27 Quattro-II 2x120V All of the conditions below must be met!: 1. The device is in error! (No AC output) 2. Inverter LED flashes (in opposition to any flashing of the Bulk, Absorption or Float LED) 3. At least one of the LEDs Bulk, Absorption and Float is on or flashing...
  • Page 28 4. Update the firmware in the last device that was switched on. Internal error. Should not occur. Switch all equipment off, and then on again. Contact Victron Energy if the problem persists. Page 25 Error Indications...
  • Page 29: Technical Specifications

    Quattro-II 2x120V 8. Technical Specifications Quattro-II 12/3000/120-50 2x120V 24/3000/70-50 2x120V PowerControl & PowerAssist Yes (on L1 input) Transfer switch 50 A Maximum AC input current 50 A (each leg) INVERTER DC Input voltage range 9.5 – 17 V 19 - 33 V Output voltage: 120 VAC ±...
  • Page 30 Quattro-II 2x120V Quattro-II 12/3000/120-50 2x120V 24/3000/70-50 2x120V Weight 23.8 kg ( 52 lb) 22.5 kg (50 lb) 579 x 319 x 168 mm Dimensions (hxwxd) mm 23 x 13 x 7 inch STANDARDS Safety EN-IEC 60335-1, EN-IEC 60335-2-29 EN 55014-1, EN 55014-2...
  • Page 31: Connection Overview

    Quattro-II 2x120V Appendix A. Connection overview Load connection 1 - AC-OUT 2 - From left to right: L2 (phase 2), N (neutral), PE (earth/ground), L1 (phase 1) AC input 1 - AC-IN 2 - From left to right: L2 (phase 2), N (neutral), PE (earth/ground), L1 (phase 1)
  • Page 32 Quattro-II 2x120V I/O Terminal, from top to bottom: 1. 12V 100mA 2. Programmable contact K1 - open collector 70V 100mA 3. External ground relay + 4. External ground relay – 5. Aux input 1 + 6. Aux input 1 –...
  • Page 33: Block Diagram

    Quattro-II 2x120V Appendix B. Block diagram * See table in Chapter 4.2 ‘Recommended DC fuse’ Page 30 Block diagram...
  • Page 34: Parallel Connection

    Quattro-II 2x120V Appendix C. Parallel connection Page 31 Parallel connection...
  • Page 35: Three Phase Connection

    Quattro-II 2x120V Appendix D. Three phase connection Page 32 Three phase connection...
  • Page 36: Charge Algorithm

    Quattro-II 2x120V Appendix E. Charge algorithm 4-stage charging: Bulk Entered when charger is started. Constant current is applied until nominal battery voltage is reached, depending on temperature and input voltage, after which constant power is applied up to the point where excessive gassing is starting (14.4 V resp. 28.8 V, temperature compensated).
  • Page 37: Temperature Compensation

    Quattro-II 2x120V Appendix F. Temperature compensation Default output voltages for Float and Absorption are at 25 °C. Reduced Float voltage follows Float voltage and Raised Absorption voltage follows Absorption voltage. In adjust mode temperature compensation does not apply. Page 34...
  • Page 38: Power Flow Diagrams

    Quattro-II 2x120V Appendix G. Power flow diagrams Output relay 0 VAC 0 VAC 120 VAC 120 VAC 120 VAC 120 VAC Transfer relays internal ground relay Battery Power flow inverter Page 35 Power flow diagrams...
  • Page 39 Quattro-II 2x120V Output relay 0 VAC 120 VAC 120 VAC 0 VAC 0 VAC 120 VAC 120 VAC 120 VAC 120 VAC Transfer relays internal ground relay Battery Power flow single phase Page 36 Power flow diagrams...
  • Page 40 Quattro-II 2x120V Output relay 240 VAC 120 VAC 120 VAC 240 VAC 120 VAC 120 VAC 120 VAC 120 VAC Transfer relays internal ground relay Battery Power flow split phase Page 37 Power flow diagrams...
  • Page 41: Dimensions

    Quattro-II 2x120V Appendix H. Dimensions Dimension Drawing - Quattro-II QUA122305130 Quattro-II 12/3000/120-50/50 2x120V 168.3 319.4 7(5x) 57.4 92.8 87.5 87.5 579.3 478.0 148.6 44.9 157.7 168.3 Dimensions in mm Page 38 Dimensions...
  • Page 42 Quattro-II 2x120V Dimension Drawing - Quattro-II QUA242305130 Quattro-II 24/3000/70-50/50 2x120V 168.3 319.4 7(5x) 57.4 92.8 87.5 87.5 579.3 478.0 148.6 44.9 157.7 168.3 Dimensions in mm Page 39 Dimensions...
