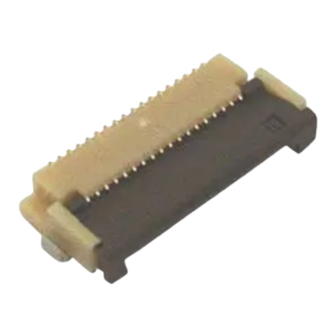

HRS FH12-20S-0.5SH(54) Manual

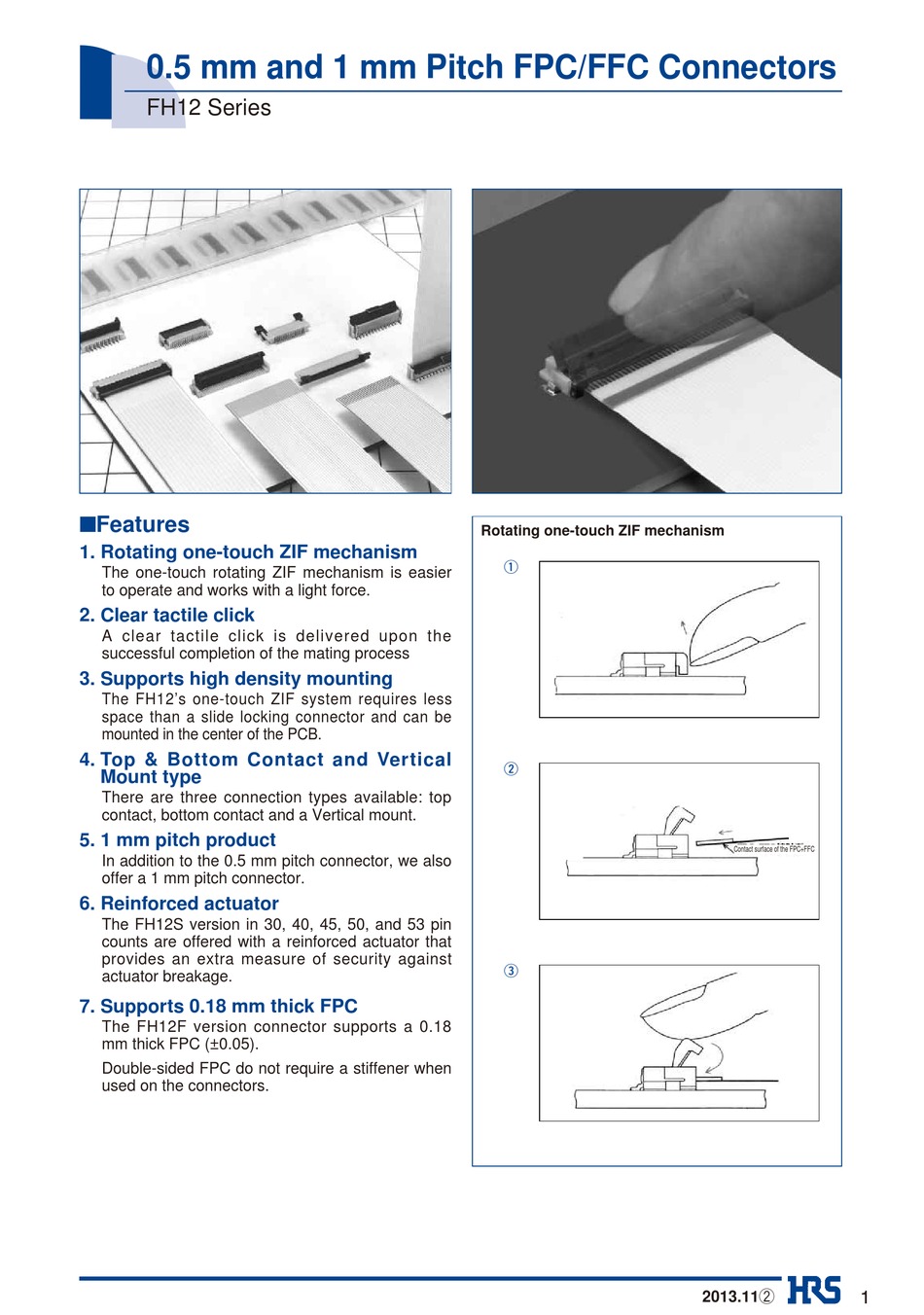

0.5 mm and 1 mm Pitch FPC/FFC Connectors
FH12 Series
■Features
1. Rotating one-touch ZIF mechanism
The one-touch rotating ZIF mechanism is easier
to operate and works with a light force.
2. Clear tactile click
A clear tactile click is delivered upon the
successful completion of the mating process
3. Supports high density mounting
The FH12's one-touch ZIF system requires less
space than a slide locking connector and can be
mounted in the center of the PCB.
4. Top & Bottom Contact and Vertical
Mount type
There are three connection types available: top
contact, bottom contact and a Vertical mount.
5. 1 mm pitch product
In addition to the 0.5 mm pitch connector, we also
offer a 1 mm pitch connector.
6. Reinforced actuator
The FH12S version in 30, 40, 45, 50, and 53 pin
counts are offered with a reinforced actuator that
provides an extra measure of security against
actuator breakage.
7. Supports 0.18 mm thick FPC
The FH12F version connector supports a 0.18
mm thick FPC (±0.05).
Double-sided FPC do not require a stiffener when
used on the connectors.
Rotating one-touch ZIF mechanism
q
w
e
Contact surface of the FPC+FFC
1
2013.11②
