HIROSE ELECTRIC CO.,LTD.

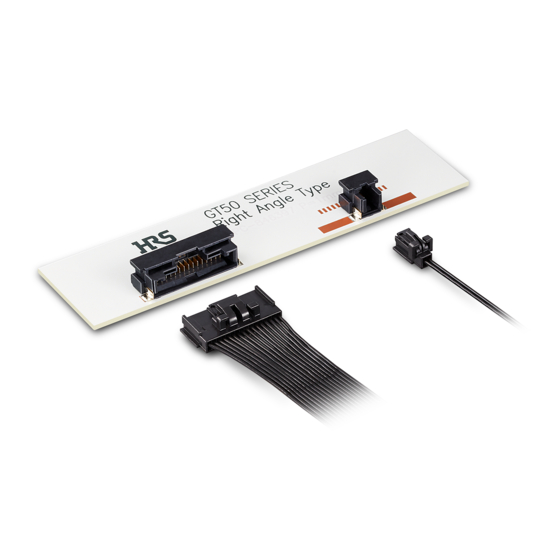

GT50 Series
Guideline for Designing and Handling
COUNT
DESCRIPTION OF REVISIONS
△
0
TITLE
GT50 Series Guideline for Designing and Handling
TECHICAL SPECIFICATION
:
TITLE
OBJECT
PRODUCT
:
GT50 SERIES
GT50 Series Guideline
Figure number
ETAD-T0931-00
DESIGNED
APPROVED
CHECKED
DESIGNED
WRITTEN
REVISION DATE
PAGE:
CHECKED
HIROSE ELECTRIC CO.,LTD.
HK.UMEHARA
20220210
OM.MIYAMOTO
20220210
YT.TAKANASHI
20220210
RS.TAKAGI
20220210
ETAD-T0931-00
:
1
13
OF
DATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT50 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HRS GT50 Series

Summary of Contents for HRS GT50 Series

  • Page 1 HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 GT50 Series Guideline for Designing and Handling COUNT DESCRIPTION OF REVISIONS DESIGNED CHECKED DATE △ TITLE HIROSE ELECTRIC CO.,LTD. GT50 Series Guideline for Designing and Handling APPROVED HK.UMEHARA 20220210 CHECKED OM.MIYAMOTO 20220210 DESIGNED YT.TAKANASHI 20220210 WRITTEN RS.TAKAGI...

  • Page 2: Table Of Contents

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 Number Page 1．Introduction ......................... 3 Purpose of this Guideline ..................3 2. Safety Precautions and Environmental Conditions ............3 Safety Precautions ....................3 Environmental Condition ..................

  • Page 3: 1．Introduction

    Before using (operation / maintenance / inspection), please read all the precautions and operation guideline to ensure correct use. In this GT50 series guideline, the rank of safety precautions is classified as "WARNING"/"CAUTION". ■Meaning of "WARNING" and "CAUTION" Indicates a dangerous situation such as a fire, or the contents WARNING that may cause death or serious injury if mishandled.
  • Page 4 TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 CAUTION ・ Do not use in situations where vibration or impact that exceeds the product specifications of our products is applied. ・ Do not use a damaged or missing connector.

  • Page 5: Environmental Condition

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 2.2 Environmental Condition Operating temperature: -40 ° C to + 125 ° C (Include the temperature rising by current) Storage temperature: -40 ° C to + 125 ° C (storage conditions after mounting)

  • Page 6: Product Number Structure And Name

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 3. Product Number Structure and Name 3.1 Product Number Structure Please use it when you judge the product specifications from the product name.

  • Page 7: Product Name

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 Product Name 【Receptacle】 ＊Since the lot number is engraved on the edge of the upper surface, please set the adsorption area to avoid that part.

  • Page 8: Product Specifications And Characteristics

    Note2:Please note that it may take some days for the new cable to have a new crimp height setting. When purchasing original HRS equipment, please contact our sales staff to see if the cable you plan to use for the target contact has been evaluated.

  • Page 9: Recommended Pcb Pattern, Reflow Profile

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 4.3 Recommended PCB Pattern, Reflow Profile ■Recommended PCB Pattern Unit：mm ■Recommended Reflow Profile This temperature profile is for reference under the following setting conditions. It may vary depending on the type of cream solder, manufacturer, board size, and other conditions such as mounting materials, therefore please check the mounting condition carefully before use.

  • Page 10: Handling And Precautions

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 5. Handling and Precautions 5.1 Connecting Method When connecting the plug to the receptacle, insert the plug perpendicular to the mating face. If you accidentally hit the corner of the plug against the center of the receptacle, or if it fits diagonally to the fitting portion, the housing and s may be deformed.

  • Page 11: Precautions When Mated

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 5.3 Precautions when Mated When mating, make sure that the receptacle is not subject to a strong load of 25N or more. (Prying, pulling, etc.) The receptacle may peel off from the board or the plug may come off.

  • Page 12: Crimping Quality Standard, Harness Procedure

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 ■Harness Routing Please refrain from using the cable in a state where it is always bent from the end of the housing. Check the cable specifications and set the minimum bending radius (R) of the cable.

  • Page 13: Revision History

    TITLE REVISION DATE GT50 Series Guideline OBJECT Figure number PRODUCT GT50 SERIES PAGE: HIROSE ELECTRIC CO.,LTD. ETAD-T0931-00 【Revision History】 Revision Date Designed Checked Comment 2/10/2022 RS.TAKAGI OM.MIYAMOTO First edition...
