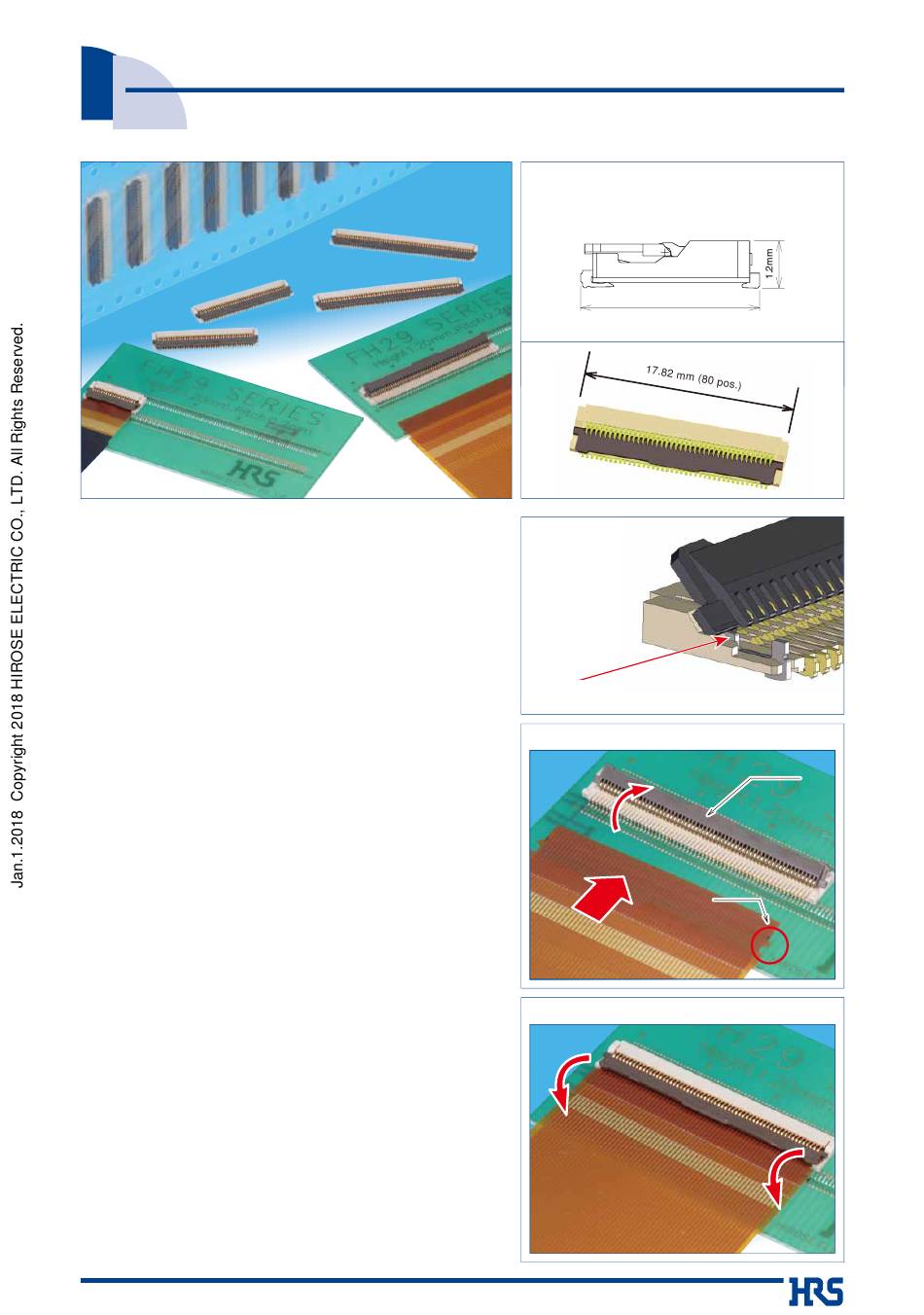

0.2 mm Pitch, 1.2 mm Height, FPC Connector
FH29 Series
■Features
1. Space saving 0.2 mm pitch FPC connector
Super thin, space saving design with 1.2 mm connector
height and 4.55 mm mounting depth.
*40% reduction in PCB footprint
*50% reduction in weight
(Compared to our 0.3 mm pitch FH23 Series 80 position connector.)
2. With metal fitting type is also available
The addition of reinforcing metal fittings improve the
operability during actuator operation.
3. Easy solderability on the PCB
The leads are double sided and have 0.4 mm mounting lead pitch to simplify mounting.
4. Easy FPC insertion
The FPC aligning mechanism holds onto the FPC prior to locking the
actuator. This also helps to increase the retention force of this connector.
5. Accepts standard 0.2 mm thick FPC
This connector accepts standard 0.2 mm thick FPC.
(A stiffener with adequate strength will prevent FPC
deformation and ease insertion and mating.)
6. Rotating one-touch ZIF mechanism
The one-touch rotating ZIF mechanism is easier to operate and
works with a light force, and a clear tactile click is delivered
upon the successful completion of the mating process
7. Molded structure aids PCB layout
The bottom of this connector is enclosed by a fully molded structure that protects
the contacts and removes any restrictions from PCB patterning and layout design.
8. Suitable for automatic pick-n-place mounting
Offered in tape and reel packaging that is compatible with
automatic machine mounting. (5,000 pieces per reel)
9. Halogen-free
Halogen free connectors are available; please use the FH29BW, FH29BJ and FH29DJ type
connectors. All materials and substances used to produce the FH29BW, FH29BJ, FH29DJ
series product complies with Halogen-free standards. * Defined according to IEC61249-2-21
Br: 900ppm max, Cl: 900ppm max, Br+Cl: 1,500ppm max.
10. Suitable for automatic pick-n-place mounting
The standard packaging is 5,000 pieces per reel, but it is
also offered in a 500 piece reel. (The outer diameter of the
reel will be _180 mm in this case.)
●Easy mounting with double-sided lead design
1.2 mm height, 4.55 mm mounting depth
4.55mm
●With metal fitting type
The reinforcing metal fittings support the actuator from
below, this leads to an easier locking function.
●FPC insertion
FPC
FPC
●FPC lock completion
Actuator
Actuator
FPC tab
FPC tab
1
2013.11②
