1.Scope
This document specifies the procedures of mating/unmating operation for DF51 series.
This document contains general guidelines and operating suggestions to use this part safely. Unexpected
troubles such as connector breakage could happen, if this product is used in other ways. Please read
through this document and understand proper operation before use.

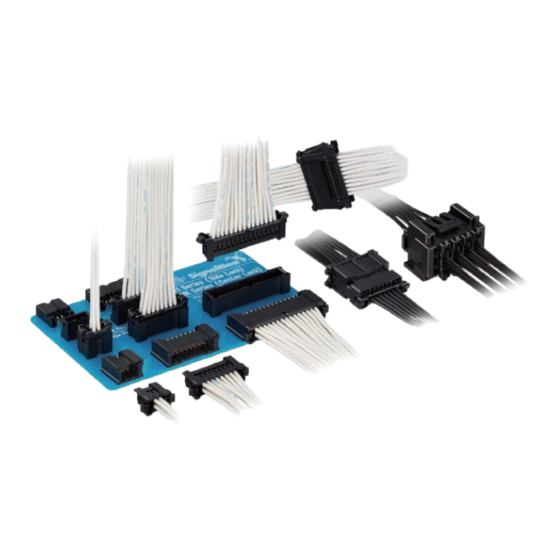

2.Connectors
Part No.
DF51-*P(DP)-2DS(A)
DF51-*EP(DEP)-2C
DF51B-*EP-2A
1
DF51-*S(DS)-2C
DF51-####SC(F)A
DF51-####PC(F)A
DF51-*DS-2C
+ DF51-####SC(F)A
DF51-*P(DP)-2DSA
COUNT
DESCRIPTION OF REVISIONS
△
1
2
TITLE
DF51 Series Mating/Unmating Operation Instruction Manual
TECHNICAL SPECIFICATION
FORM HC0011-9-1
Description
Header
Plug for relay connection
Branch adapter
Crimp socket
Crimp contact for socket
Crimp contact for
relay connection plug
DF51-*S-2C
DF51-*P(DP)-2DS
1

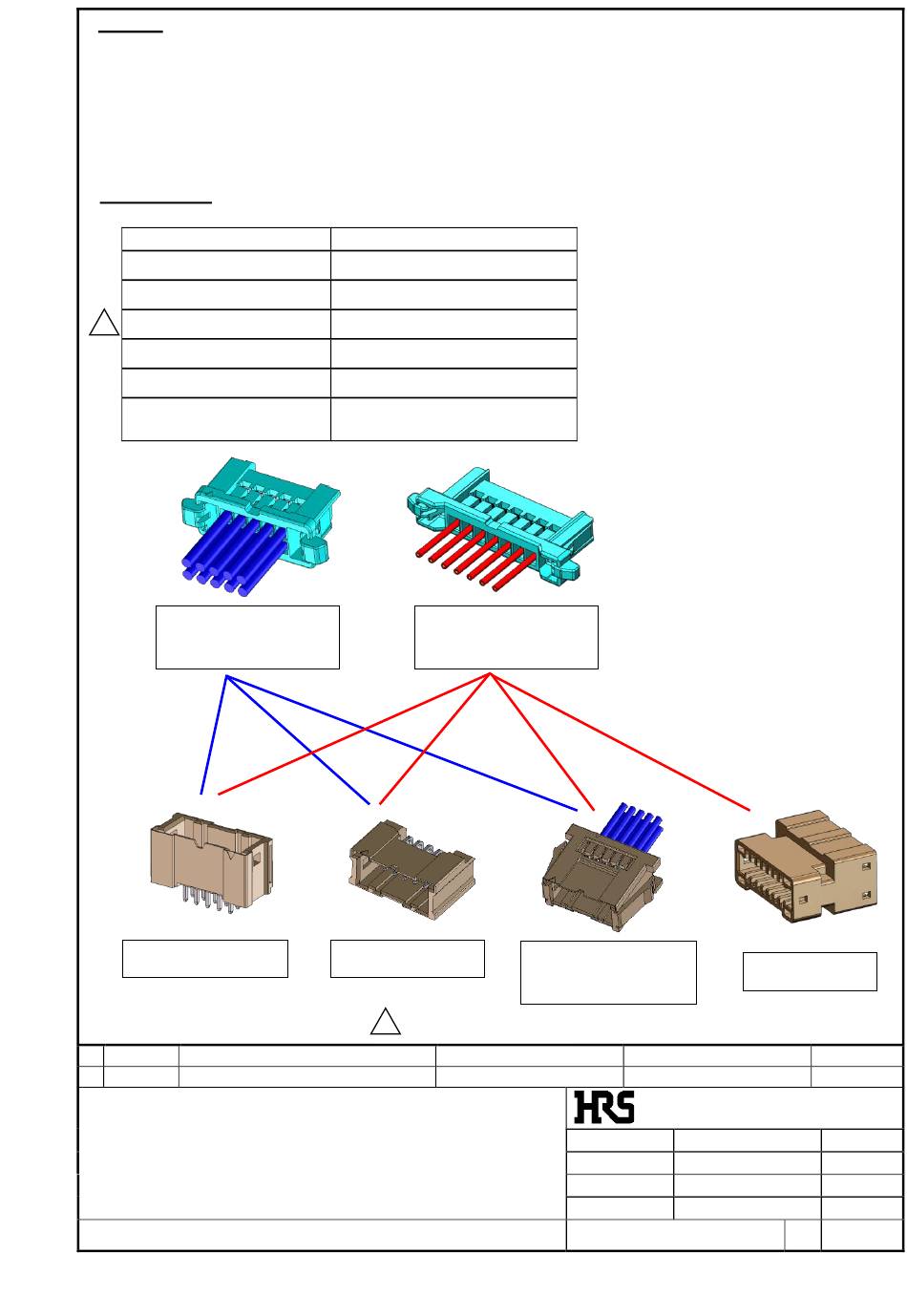

Fig. 1: DF51 series
DIS-H-00018663
+ DF51-####SC(F)A
DF51-*EP(DEP)-2C
+ DF51-####PC(F)A
DESIGNED
KT.NUMATA
APPROVED
CHECKED
DESIGNED
WRITTEN
ETAD-H0847-00
DF51B-*EP-2A
CHECKED
TT.OHSAKO
HIROSE ELECTRIC CO.,LTD.
KI.AKIYAMA
YN.TAKASHITA
TT.OHSAKO
TT.OHSAKO
△
1
DATE
20230721
20160113
20160113
20160113
20160113
1 / 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HRS DF51-6EP-2C
Summary of Contents for HRS DF51-6EP-2C
- Page 1 1.Scope This document specifies the procedures of mating/unmating operation for DF51 series. This document contains general guidelines and operating suggestions to use this part safely. Unexpected troubles such as connector breakage could happen, if this product is used in other ways. Please read through this document and understand proper operation before use.
- Page 2 3.Operation Procedure 3-1. Mating 3-1-a. Positioning for Insertion ：Position the crimp socket with the header or plug for relay connection according to the mating point mark. してください Mating Point Mark Fig 2. Positioning for Insertion 3-1-b. Insertion and Mating ：Insert the connector until it clicks. * Please do not press the latches while insertion.
- Page 3 Notice 1：Do not tilt the socket in insertion as shown below in order to avoid negative influence on quality. Fig 4. Prohibited Insertion 3-1-c. Confirmation of Mating ：Make sure that the crimp socket is completely mated. （Make sure if the hooks are caught or not either by looking or by slightly pulling the cables by hand）...
- Page 4 3-2. Unmating 3-2-a. Grabbing cables ：Grab and hold all cables firmly Fig 6. Grabbing Cables Condition 3-2-b. Removal While having the cables, unlock the hooks by pressing the latches and pull the connector vertically Note: the appropriate unmating cannot be done if the hooks are still stuck. Unmating Unlocking Direction...
