Summary of Contents for Bartscher 600 WSTL

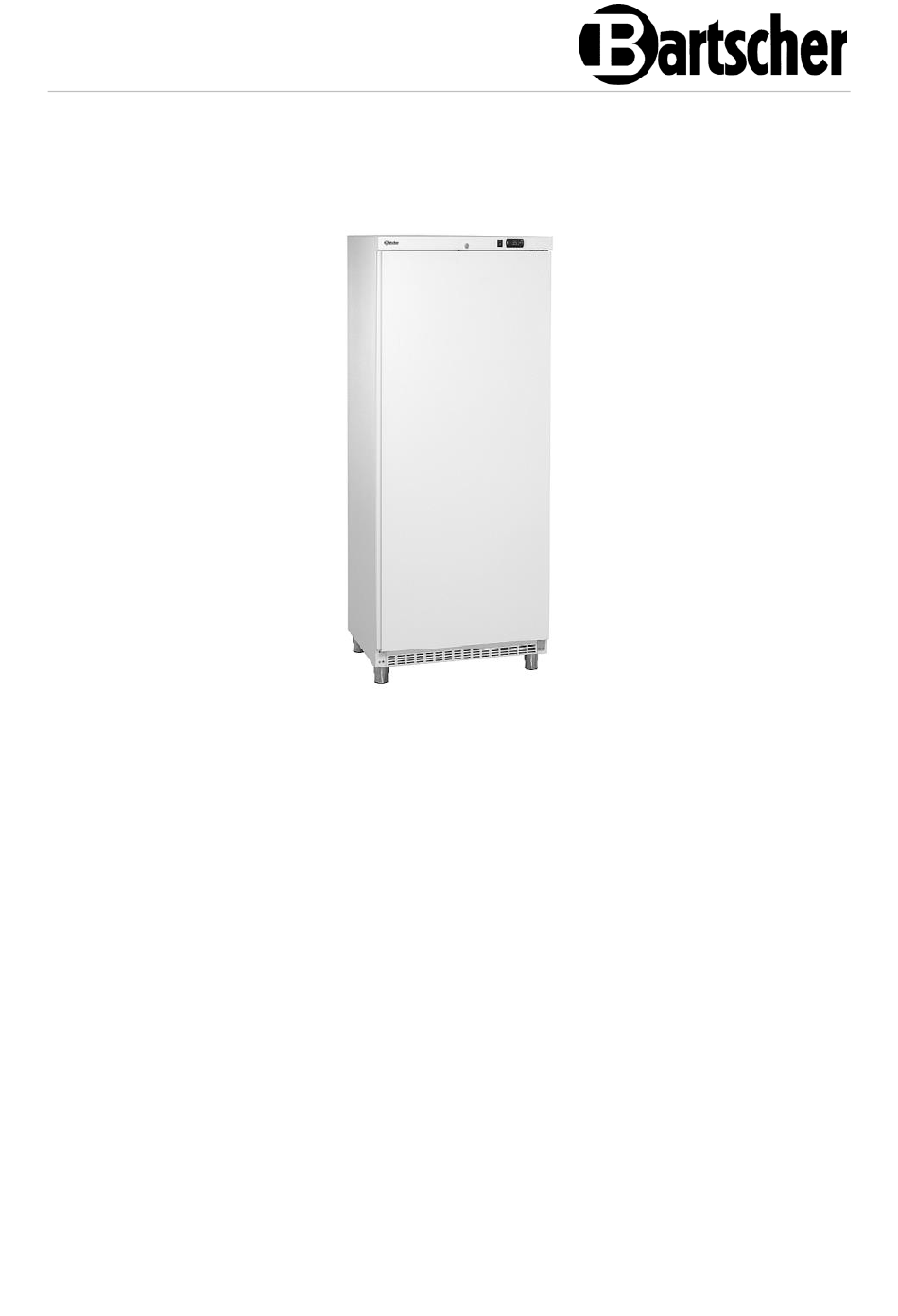

- Page 1 600 WSTL 700854...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-01-09...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Halten Sie Verpac kungsmateriali en und Styropor teile von Ki ndern fern. They may g et embroiled and suffocate. Operating Personnel • The device can be used by children of 8 years old and older, as well as by people with reduced physical, sensory or mental abilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on safe use of the device and possible risks.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling and preparation of suitable beverages and food products. The appliance is intended for operation in maximum ambient temperature of 32 °C and relative humidity of 55%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Refrigerator 600 WSTL 700854 Art. No.: Material: steel, painted with a slight texture Inner material: steel, painted Volume, in l: Usable volume, in l: Temperature range, min.-max., in °C: -1 °C bis 6 °C Ambient temperature, max., in °C:... -
Page 12: Functions Of The Appliance
• Indicator lamp: compressor More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2015/1094-IV, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. Functions of the Appliance The refrigerator has been designed for cooling and storage of suitable beverages and food. -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance The delivery does not include Fig. 1 decorations! 1. Lock 2. ON/OFF switch 3. Digital temperature controller 4. Appliance door 5. Recessed grip 6. Shelf guides 7. Ventilation openings 8. Feet (4x) 9. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 15 Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Nie nal eż y umies zcz ać urządz eni a w g orąc ym otoczeniu ani w pobliż u materiał ów łatwopalnyc h. •...
-
Page 16: Operation
Installation and operation Operation Tips for the user • Shelves may be positioned at various heights. Arrange them adequately to the size of beverage/containers with food product, so that the inner space of the appliance is used optimally. • Beverages and food products in containers should be arranged on the shelves so that proper distances between them allow for sufficient air circulation inside the appliance. - Page 17 Installation and operation Before the first use 1. Before the first use, clean the appliance and its accessories observing the instructions in section 6 'Cleaning'. 2. To end with, dry the appliance and accessories thoroughly. 3. Place the shelves in the appliance so that they fit the height of stored items. 4.
- Page 18 Installation and operation Messages Assigned Normal Operation Start-up Function Flashes Compressor Required Required Defrosting Auxiliary Active output Inactive output output RTC clock RTC available, RTC unavailable activated / deactivated (tEN=1) and at (tEN=0) and no least 1 programmed time cycle programmed time cycle Alarm...
- Page 19 Installation and operation Functions of Buttons Button Normal Operation Start-up Single press of the Combo press button of buttons – For more than 3 sec.: ON/OFF interchangeable Pressed display of the concurrently: ON/OFF status Activation/dea – For more than 3 ctivation of DOWN Pressed for...
- Page 20 Installation and operation Alarms and prompts In the case of the alarm, the proper prompt flashes on the digital display, interchangeably with the temperature value; also, the buzzer and the alarm replay (if available) may be activated. All alarms go off automatically (i.e. alarm prompt is stopped, when the cause for the alarm is eliminated;...
- Page 21 Installation and operation Active Alarm of the soiled Manually condenser Inactive Alarm of timers Through the setting of a timer Table 3 Defrosting • The defrosting process is carried out automatically every 5 hours. • After the defrosting process the appliance switches to the dripping phase. •...
-
Page 22: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. -
Page 23: Maintenance
Cleaning and Maintenance 12. If the appliance is not to be used for a longer period of time, clean it according to the instructions above. Leave the appliance open to prevent generation of unpleasant odours inside. Maintenance Let the appliance to be inspected by professional technician at least once a year or as required. -
Page 24: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 25 Possible Malfunctions Malfunction Possible cause Solution The appliance Stored food products or Rearrange the products inside does not reach the other objects make it the cooling/freezing required difficult to close the compartment or remove some temperature appliance door properly of them to close the appliance door Cooling/freezing Remove the hot food products...
-
Page 26: Disposal
Disposal Malfunction Possible cause Solution The appliance Technical error Diagnose the error (see table in section ‘Alarms and Reports’) displays alarm messages Contact the service company The following phenomena are not malfunctions: – Various sounds that are generated by the cooler during operation are a normal phenomenon and do not indicate any malfunctions.
