Channel Allows you to manually
Outputs send channel outputs to
the controller to verify
channel mapping.
Using the Manufacturer's Diagnostic Tool

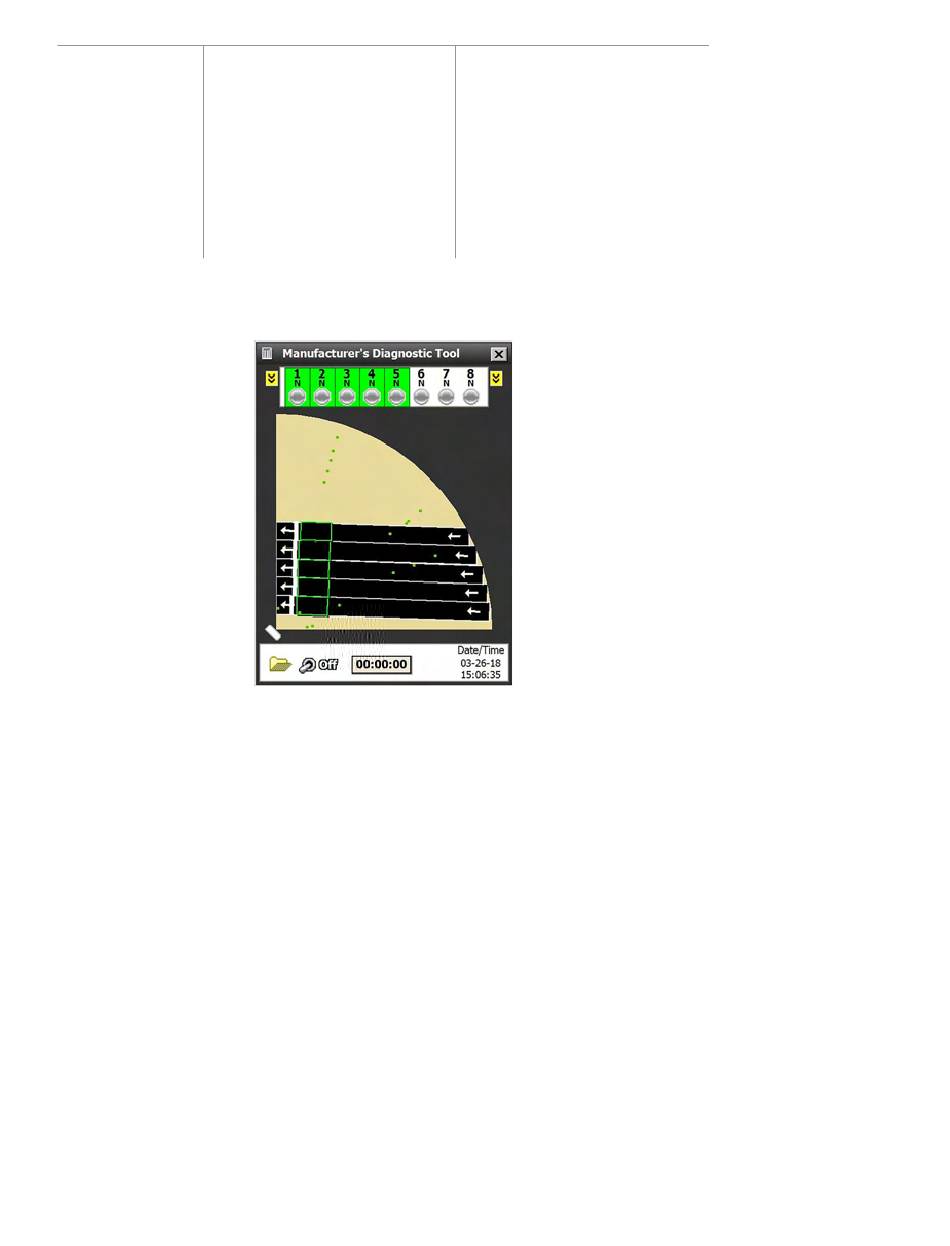

Figure 101. Manufacturer's Diagnostic Tool
Click Manufacturer's Diagnostic Tool.
1
Click the folder icon and specify a location for your file.
2
Click On/Off switch to begin collecting data. Once the switch is
3
on, the timer will begin.
Turn the toggle switch off once you are done collecting data.
4
Click the toggle switch
and then select a
checkbox to send that
numbered channel call
to the controller. The
channel will remain on
until the checkbox is
unchecked.
Note. Contact
Wavetronix Technical
Support before
using this tool.
