Using the menu bar

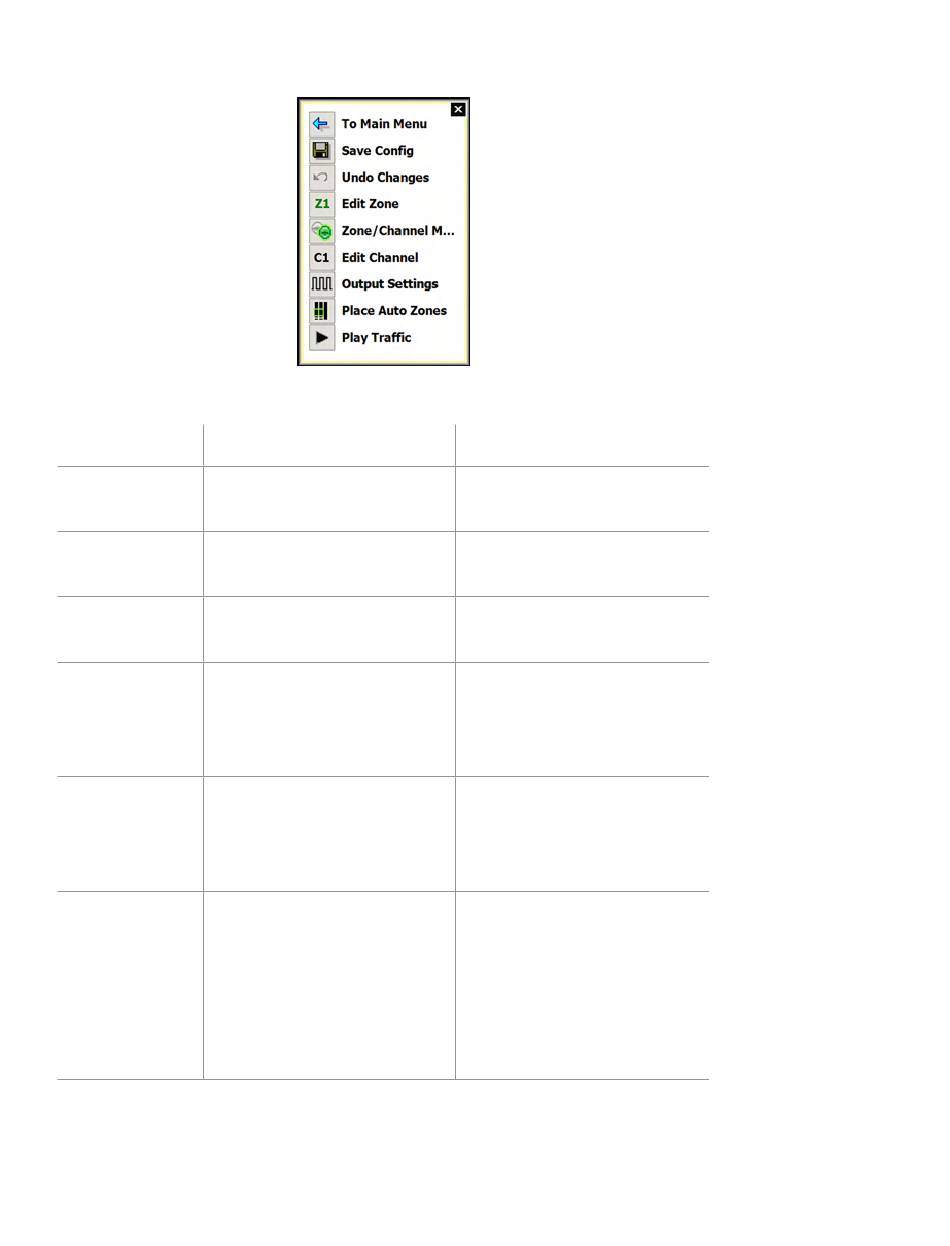

Figure 66. Zones & Channels menu bar
Setting Description
To Main Takes you back to the
Menu main screen.
Save Config Saves lanes and stop bars
to the sensor.
Undo Undoes the last change
Changes you made in the edit area.
Edit Zone Allows you to move a
zone, add delay/extend
settings, and create small
zones for counts.
Zone/ Lets you quickly map
Channel Map zones to channels.
Edit Channel Lets you select channel
type, apply and/or logic,
invert a zone, map zones
to channels, change
delay/extend settings,
and choose min and max
speeds.
Details
N/A
N/A
N/A
Use this to make changes
to a zone.
Use this table to set
up your zone/channel
mapping. Click and drag
to see all 16 channels.
Use this to make changes
to a channel.
