Click the arrow buttons to change the sensitivity (in decibels).
4

Adjusting a region of thresholds

Click the Edit Thresholds button. This will change the color of the
1
sensor's footprint and allow you to change the sensitivity of certain
areas in the footprint.
Click anywhere within the sensor's footprint and the Sensitivity
2
window will appear.
Click Zoom In.
3
Click and drag on the threshold region(s) you would like to
4
change and the sensitivity slider window will appear.
Click the arrow buttons to change the sensitivity (in decibels).
5

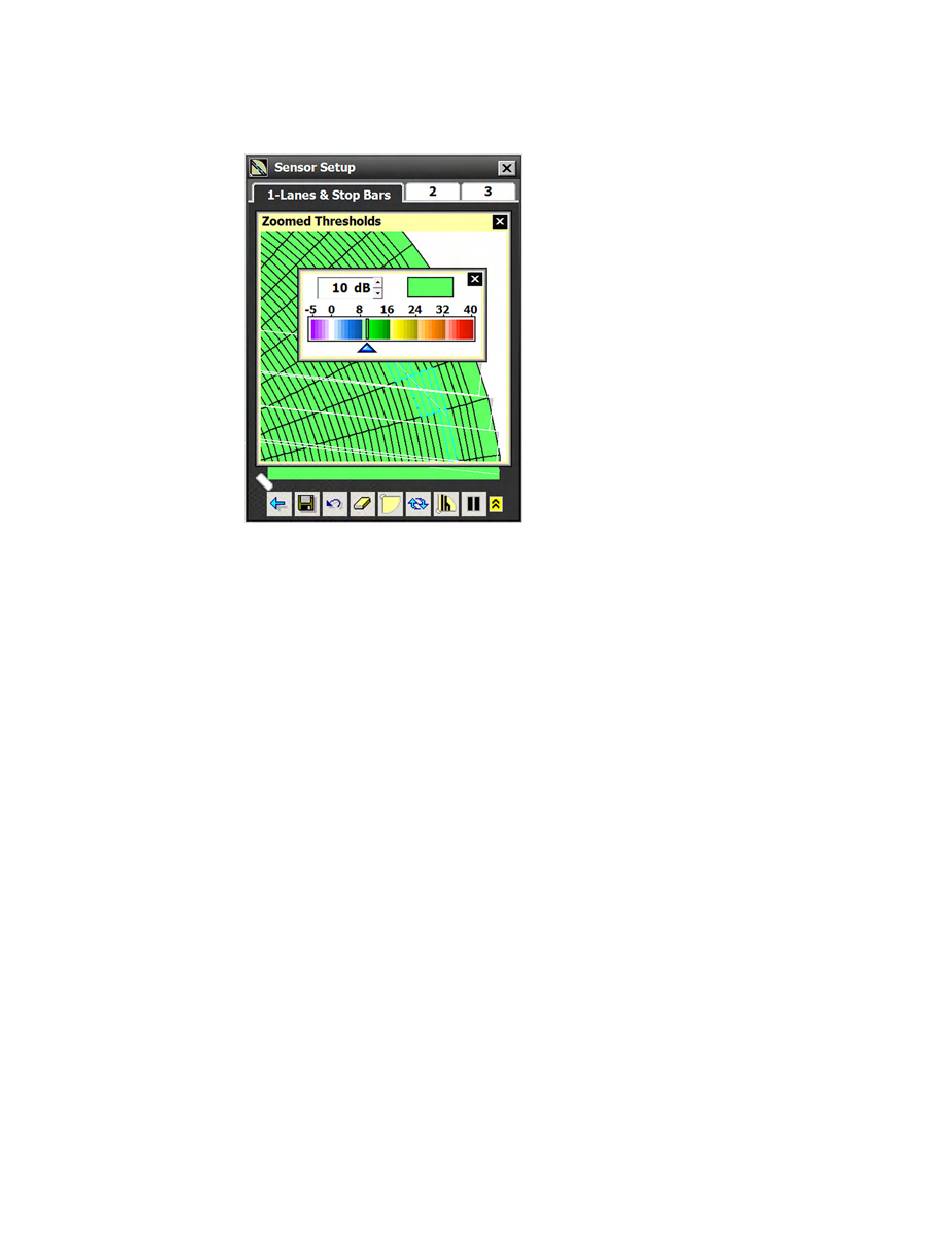

Figure 62. Adjusting a region
Chapter 6: Configuring Lanes & Stop Bars
59
•
