Wavetronix SmartSensor Matrix User Manual page 84

sensor's footprint and allow you to change the sensitivity of certain
areas in the footprint.
Click anywhere within the sensor's footprint and the Sensitivity
2
window will appear.
Click Adjust All and the sensitivity slider window will appear.
3

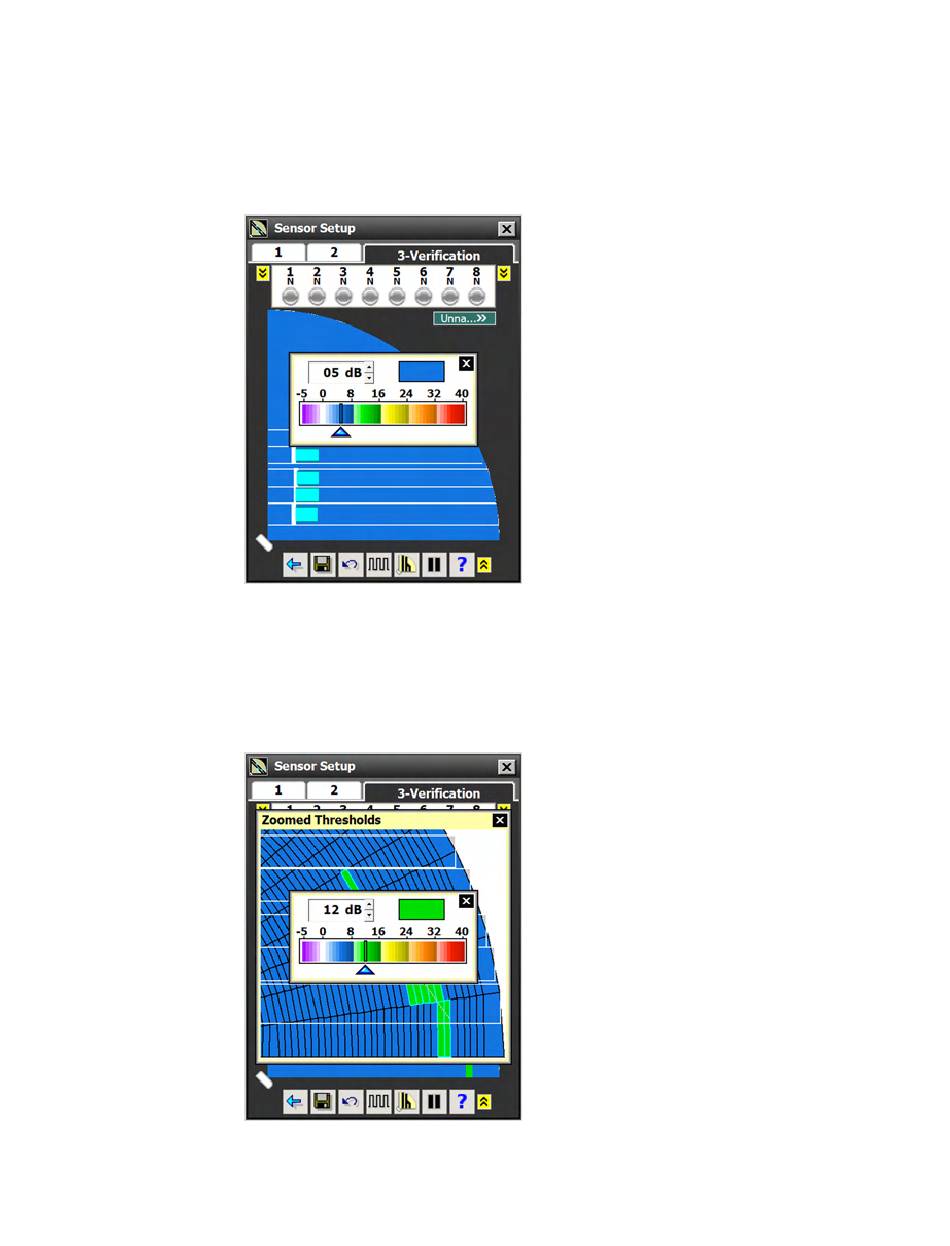

Figure 92. Adjusting sensitivity levels
Click the arrow buttons to change the sensitivity (in decibels).
4
Adjusting a region of thresholds
Figure 93. Adjusting a region
Note. Negative
values will increase
sensitivity; positive
values will decrease
sensitivity.
Chapter 8: Verifying Lanes
83
•
