T811-CM Access Point
Quick Setup Guide
NOTE: The minimum software revision for the T811-CM is SmartZone
(SZ) 3.4.2, or 3.6.1, or later. (SZ 3.5.x and 3.6 do not support the T811-
CM).
This Quick Setup Guide provides brief instructions on how to field-install
the Ruckus Wireless T811-CM access point (AP). For detailed information
on planning the installation, performing a site survey, and operating the
T811-CM, refer to the T811-CM Cable Modem Access Point Installation
Guide, available at https://support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be allowed to
install, replace, or service this equipment. Only to be installed in
restricted access areas.
WARNING! Installation of this equipment must comply with local and
national electrical codes.
CAUTION! Make sure that you form a 80mm - 130mm (3"-5") drip loop
in any cable that is attached to the AP or the building. This will prevent
water from running along the cable and entering the AP or the building
where the cable terminates.
CAUTION! Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection, use
lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING! Ruckus Wireless strongly recommends that you wear eye
protection before mounting the T811-CM.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
ください。
• 이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía en
support.ruckuswireless.com.
Copyright © 2023 CommScope, Inc. All rights reserved.
Published January 2023, Part Number 800-71744-001 Rev D
Before You Begin
Before deploying Ruckus Wireless products, please check for the latest
software and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at
software.
• Open source information is available at
opensource.ruckuswireless.com.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Before deploying your Ruckus Wireless Access Point, verify that all items
listed in Package Contents are included in the package. If any item is
damaged or missing, notify your authorized Ruckus Wireless sales
representative. Also, make sure that you have the required hardware
and tools.
Required Hardware and Tools
• No. 2 Phillips screwdriver bit
– Torque screwdriver (Ranges from 7 to 40 in-lbs)
• Small flat-blade screwdriver
• Torque wrench and torque screwdriver with sockets
– 7/16 wrench for F connector (30 in-lbs)
– 11mm socket for attenuation and impedance matching caps (35 in-
lbs)
– 19mm socket for Strand nut (16 to 20 ft-lbs) and F-connector stinger
(40 in-lbs)
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Cable strand
Package Contents
A Ruckus Wireless T811-CM package contains the items listed below:
• Ruckus Wireless T811-CM unit with cable strand hangers, includes one
12mm long stainless steel M6x1 earth ground panhead screw with split
lock and flat washers
• A one-meter green/yellow earth ground wire with ring terminal
• Safety cable kit
• Cable gland/cable gland extender:
– 2 cable glands
– Cable gland extender
– Dual-hole cable gland insert for zip cord SFP fiber
• Service Level Agreement/Limited Warranty Statement
• Regulatory Statement
• Declaration of Conformity, if required
• T811-CM Access Point Quick Setup Guide
でご覧
Mounting Instructions
AP and CM MAC Addresses, Connectors and
https://
Ground Point
https://
The T811-CM MAC address label lists separate addresses for the internal
AP and the cable modem (CM).
The MAC address label (1 in the Figure below) is mounted on the end of
the T811-CM with the F type connector and the ground screw (2 and 3 in
the Figure). The following table describes the label, connector and the
ground point screw.
http://

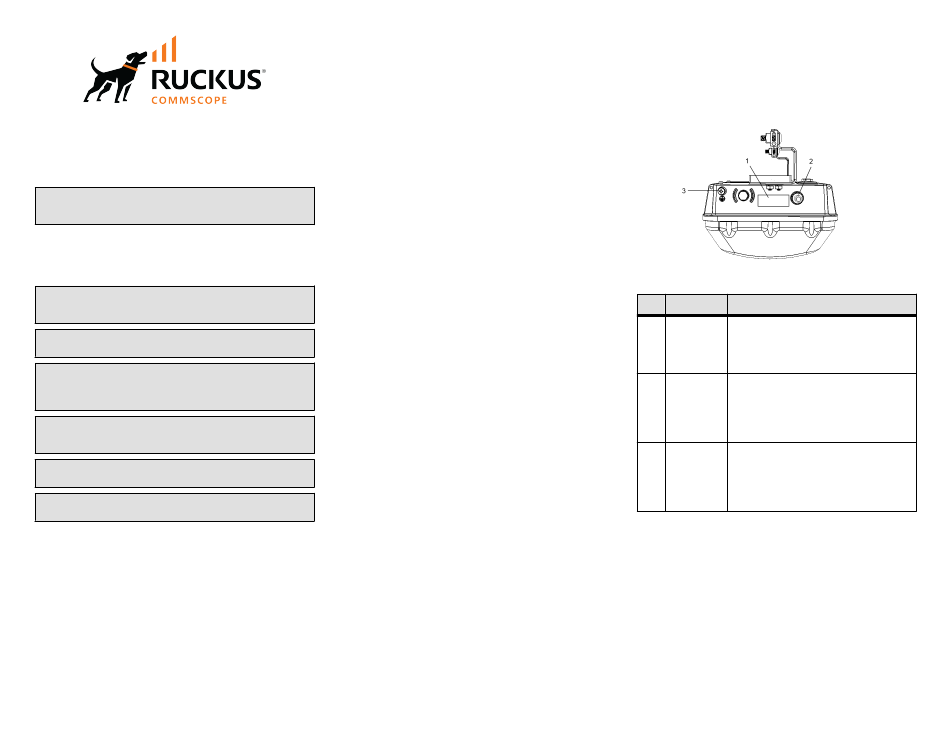

FIGURE 1 T811-CM MAC address label, F type connector and ground
http://support.ruckuswireless.com/
point
http://
TABLE 1 Connectors and ground point on the T811-CM
No.
1
2
3
LEDs and Ports
The following figure illustrations the locations of the LEDs and ports on the
T811-CM, and the table below provides descriptions of each feature.
Use the eight LEDs to check the status of the access point and cable
modem.
Label Description
MAC Labels include separate addresses for the
Address internal AP and CM.
label
location
Coaxial cable F type, connects to the CMTS at the head
connector end using a tap on the plant, and provides
AC POC to the T811-CM. For more
information, refer to "Powering the T811-CM
with POC."
Optional The T811-CM is normally earth-grounded by
External the cable strand. However, if the cable
Ground strand is not earth grounded, then connect
Earth Point an external earth ground to the T811-CM
using this screw-and-washer set.
