Ruckus Wireless T811-CM Quick Setup Manual

T811-CM Access Point
Pole Mount Bracket
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions
on how to install the Ruckus T811-CM Cable Modem
Access Point using the T811-CM Pole Mount Bracket Kit
(Ruckus Part #902-0130-0000).
For detailed information on installation, setup and
operation of the T811-CM, refer to the Ruckus T811-CM
Cable Modem Access Point Installation Guide, available at
https://support.ruckuswireless.com.
Package Contents
A complete T811-CM Pole Mount Bracket kit includes all
of the following:
• T811-CM Pole Mount Bracket (includes linkage bracket,
knuckle bracket, base bracket, plate adapter)
• Mounting hardware kit, includes:
– 4 stainless steel 3/4" bolts
– 4 flat washers
– 4 hex nuts
– 4 split lock washers
– 2 1.25" stainless steel carriage bolts
– 2 3/8" hex nuts
– 2 3/8" lock washers
– 2 3/8" flat washers
– 2 M16 bolts
– 2 M16 flat washers
– 2 M16 lock washers
• This Quick Setup Guide
Required Hardware and Tools
• 1/2" (13mm) flat-blade screwdriver or equivalent
• No. 2 Phillips screwdriver
• Torque wrench or torque screwdriver with sockets
• Pipe or pole
Copyright © 2018 ARRIS Enterprises LLC. All rights reserved.
Published July 2018, Part Number 800-71932-001 Rev A
Attach the Base Bracket to the Pole
1. Attach the base bracket to the pole using two
customer-supplied pole clamps, as shown in the
Figure below.
2. Tighten the clamps to 3 N.m or 27 in-lbs, or per
manufacturer's specifications.

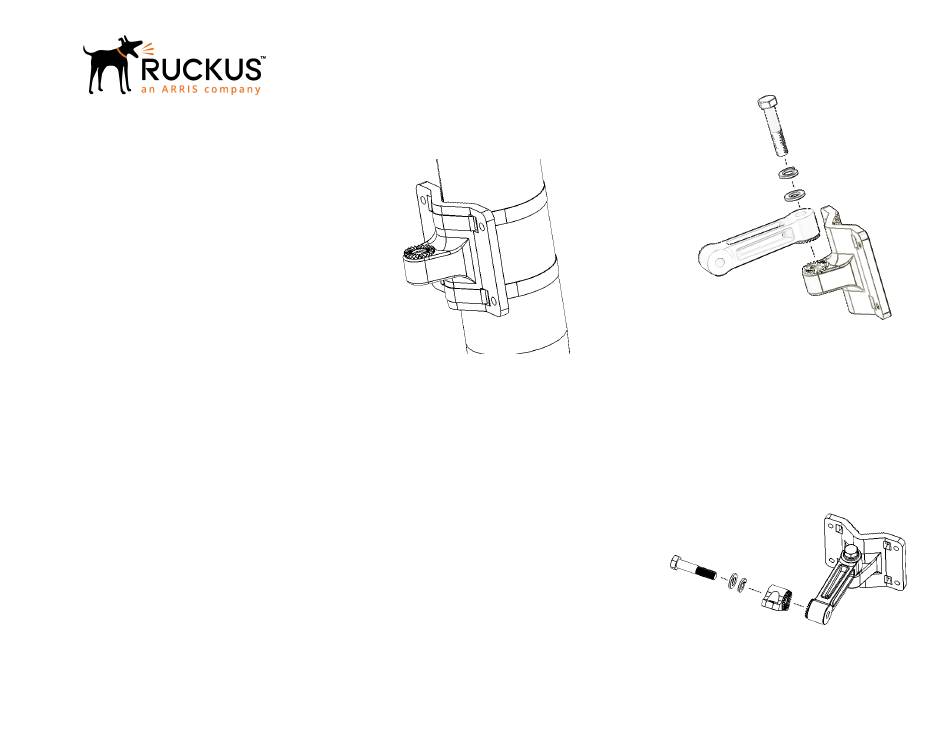

FIGURE 1 Attach the base bracket to the pole
Attach the Linkage Bracket to the Base
Bracket
1. Place the linkage bracket on the base bracket, and
insert the M16 bolt, lock washer and flat washer as
shown in the Figure below.
2. Tighten to (***torque***).
FIGURE 2 Attaching the Linkage Bracket to the Base
Bracket
Attach the Knuckle Bracket to the
Linkage Bracket
1. Attach the knuckle bracket to the linkage bracket
using the M16 bolt, split lock washer and flat washer
as shown in the Figure below.
2. Tighten to (***torque***).
FIGURE 3 Attach the knuckle bracket to the linkage
bracket
