T350se Access Point
Quick Setup Guide
NOTE: The minimum software revision for the T350se is
ZoneDirector (ZD) 10.5 or later, or SmartZone (SZ) 6.0 or later.
This Quick Setup Guide provides step-by-step instructions on how
to field-install the RUCKUS T350se Access Point (AP). For detailed
information on planning the installation, performing a site survey,
and operating the T350se, refer to the RUCKUS Outdoor Access
Point User Guide, available at https://support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with
local and national electrical codes.
CAUTION! Form a 80-mm to 130-mm (3-in. to 5-in.) drip loop
in any cable that is attached to the AP or the building. This will
prevent water from running along the cable and entering the
AP or the building where the cable terminates.
CAUTION! Be sure that grounding is available and that it meets
local and national electrical codes. For additional lightning
protection, use lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
CAUTION! RUCKUS strongly recommends that you wear eye
protection before mounting the T350se.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse
suivante http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?
でご覧ください。
docs-box
Copyright © 2024 CommScope, Inc. All rights reserved.
Published May 2024, Part Number 800-72897-001 Rev C
• 이 가이드의 한국어 버전은 웹 사이트
docs.commscope.com/?docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía
en http://docs.commscope.com/?docs-box
Before You Begin
Before deploying RUCKUS products, please check for the latest
software and the release documentation.
• Release Notes and other user documentation are available at
http://support.ruckuswireless.com/documents.
• Software upgrades are available at
support.ruckuswireless.com/software.
• Software license and limited warranty information are available
at http://support.ruckuswireless.com/warranty.
Before deploying your RUCKUS Access Point, verify that all
items listed in Package Contents are included in the package. If
any item is damaged or missing, notify your authorized RUCKUS
sales representative. Also, make sure that you have the
required hardware and tools.
Required Hardware and Tools
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Wide flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole, or a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors,
flat washers, and hex nuts for flat-surface mount
Package Contents
A complete T350se field installation package includes all of the
following items:
• T350se Access Point
• M25 data cable gland
• Ground wire with lug
http://
• Pole/Wall Mount Bracket Kit
• Declaration of Conformity/Regulatory Statement
T350se Sector Antenna Coverage
The T350se AP is best deployed where internal antenna
directional beamwidths can provide extended reach and
(http:// throughput to a 120-degree coverage area. Refer to the following
figures for the azimuth and elevation coverage patterns.
http://

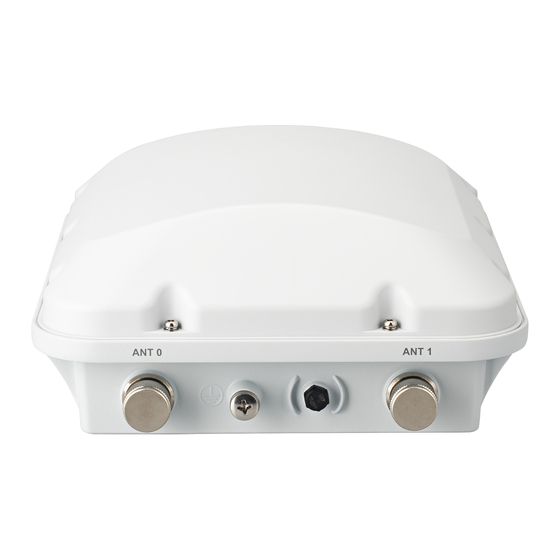

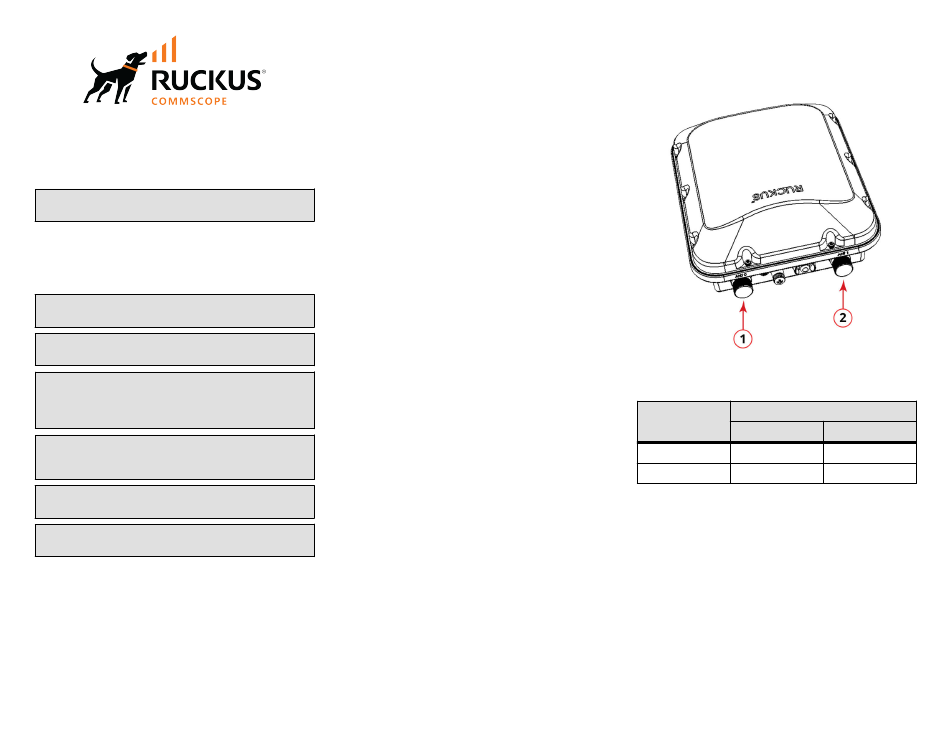

FIGURE 1 T350se AP - Rear View
http://
1. ANT 0
TABLE 1 Antenna Polarization
T350se Connections
ANT0
ANT1
2. ANT 1
External Antenna Connection
Vertical Horizontal
X
X
