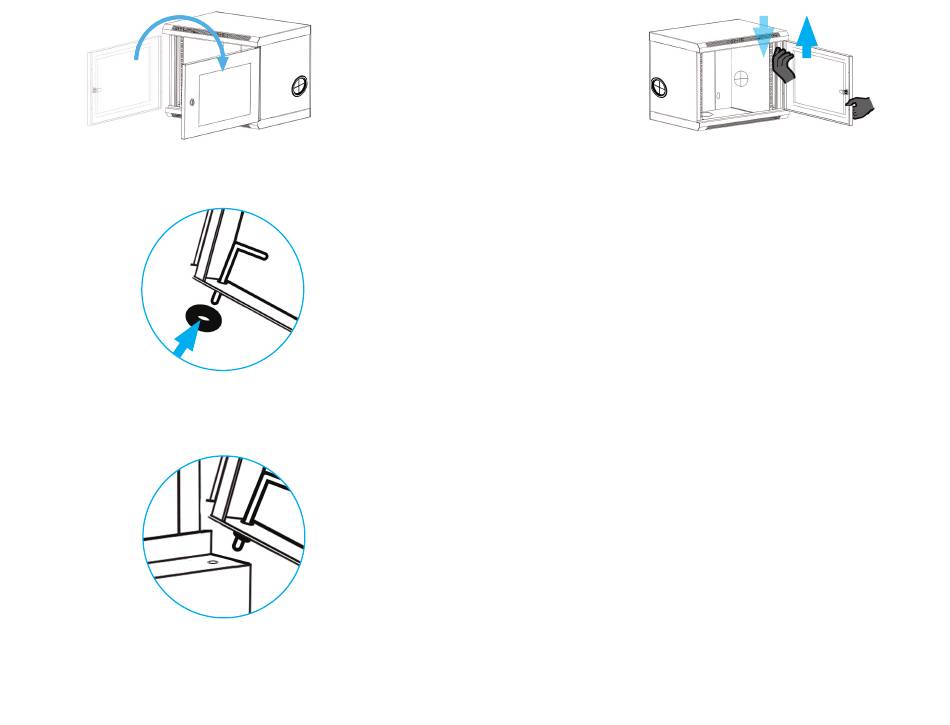

4. Install the Washer (retained in Step 2) onto the Bottom Pin on the Lower Inside
Corner of the Door. (Figure 4)
5. With the top corner of the door angled slightly away from the enclosure, gently
Insert the Bottom Pin, ensuring is Fully Extended into the Washer and the Lower
Hinge Hole. (Figure 5)
6. With the Bottom Pin partially installed, Pull the Top Pin Handle Down and swing
the Top Corner of the Door toward the Upper Hinge Hole. Align the Retracted
Top Pin with the Upper Hinge Hole and Release the Pin Handle, ensuring the Pin
is Fully Extended into the Upper Hinge Hole. (Figure 6)
Figure 3
Figure 4
Figure 5
Figure 6
