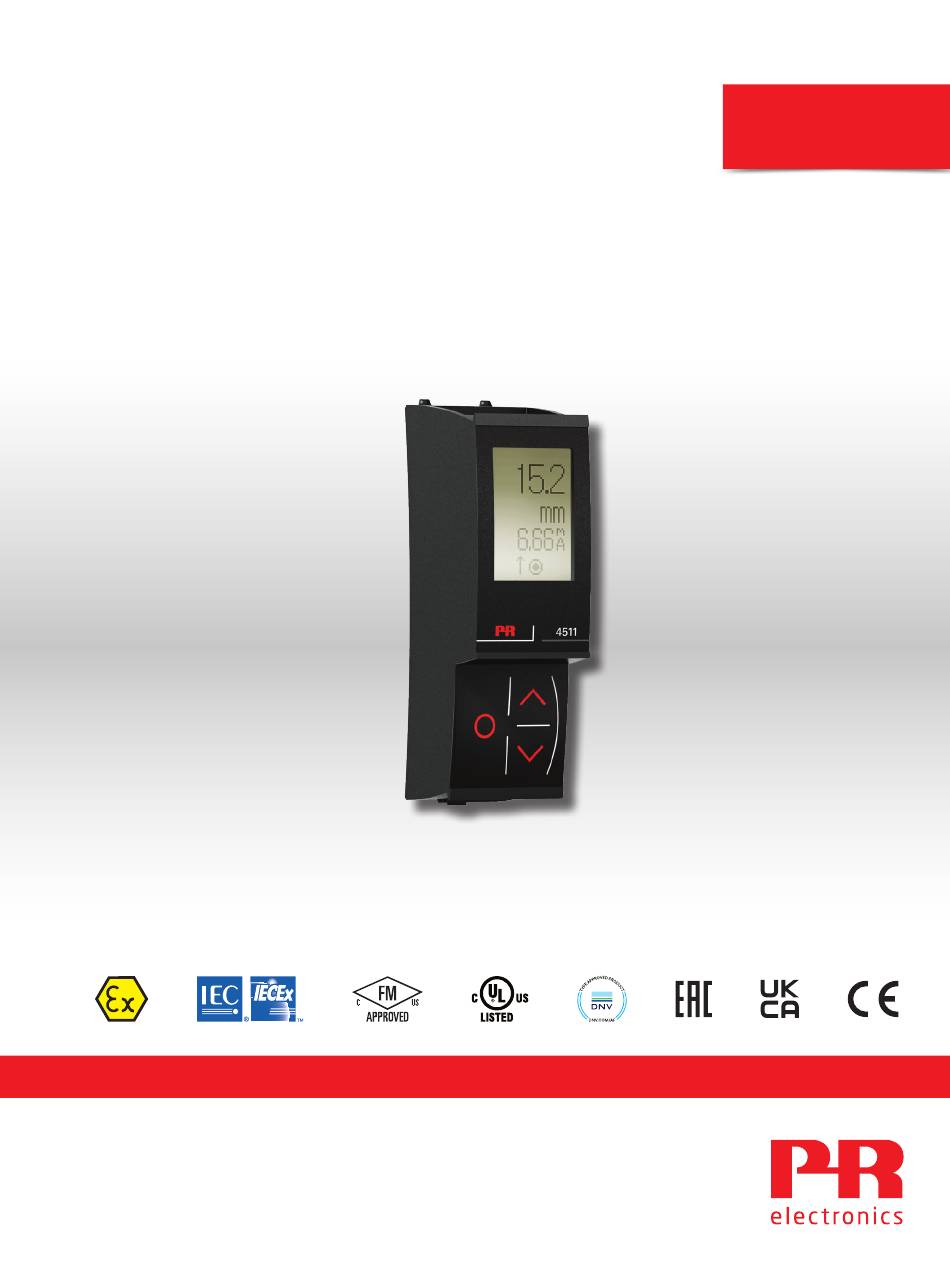

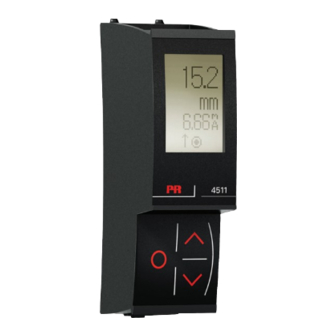

- Page 1 PERFORMANCE MADE SMARTER Product manual 4511 Modbus communication enabler T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
- Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
-
Page 3: Table Of Contents
4511 Modbus settings - routing diagram ........ -
Page 4: Warning
General mounting, connection and disconnection of Modbus cable. Troubleshooting the device. VOLTAGE Warning Repair of the device must be done by PR electronics A/S only. CAUTION Symbol identification Triangle with an exclamation mark: Read the manual before installation and commissioning of the device in order to avoid incidents that could lead to personal injury or mechanical damage. -
Page 5: Safety Instructions
When disconnected, the device may be cleaned with a cloth moistened with distilled water. Warranty PR electronics A/S offers a 5-year warranty on this product. Liability To the extent the instructions in this manual are not strictly observed, the customer cannot advance a demand against PR electronics A/S that would otherwise exist according to the concluded sales agreement. -
Page 6: Mounting / Demounting Of A Pr 4500 Communication Interface
Mounting / demounting of a PR 4500 communication interface Communication interfaces in the PR 4500 series are detachable displays that can be mounted on a PR 4590 Configmate or all system 4000 / 9000 fronts for programming and signal monitoring. Mounting 1: Insert the tabs of the PR 4500 into the holes at the top of the device. -
Page 7: Applications
The easily readable 4511 display can be used to read the process signal, simulate the output signal, indicate sensor errors and internal module errors. • The 4511 can be moved from one device to another. The individual system 3000 / 4000 / 9000 device configuration of a transmitter can be saved and downloaded to subsequent transmitters. Technical characteristics •... -
Page 8: Order
Order Type Description 4511 Communication enabler 4590 Configmate interface Electrical specifications Environmental conditions: Specifications range ........-20°C to +60°C Storage temperature . -
Page 9: 4511 Installation Examples
4511 installation examples Modbus RTU 4511 4511 4511 PLC/DCS 4000 4000 4000 HMI/PC 9000 9000 9000 Gateway Safe Area Zone 2 / Cl. 1, Div. 2, gr. A-D Modbus RTU Modbus RTU 4511 4511 4511 PLC/DCS 4000 4000 4000 HMI/PC... -
Page 10: Modbus Basics
RS485 networks, at speeds up to 115,200 bps. The most common speeds are 9,600 bps and 19,200 bps. Modbus RTU is the most widely used industrial protocol and is supported by the 4511. Modbus RTU: To communicate with a slave device, the master sends a message containing: Device Address - Function Code - Data - Error Check The Device Address is a number from 0 to 247. -
Page 11: 4511 Modbus Parameter Settings
Modbus slave addressing range: 1 - 247 (247 = default address) Modbus Parameter Storage: Saved in non-volatile memory in the 4511 device (Factory Default Values are marked in bold) Modbus RTU segment line termination: A 120 Ohm resistor should be installed on both ends of a RS485 Modbus RTU segment loop to prevent signal echoes from corrupting data on the line. -
Page 12: Display Layout
Display layout By default, the PR 4511 enters monitor mode for process surveillance. With the front keys, the 4511 can enter programming or simulation mode. Layout for 3000/4000 and 9000 series products (in monitor mode) PR 3000 / 4000 Line 1 shows the scaled process value. -
Page 13: Operating The Function Keys / Display
In general When using the PR 4511 for configuration of a PR 4000 or PR 9000 device, you will be guided through all parameters and can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display. - Page 14 4511 functions The PR 4511 gives access to a number of functions which can be reached by answering “Yes” to the menu point “ADV.SET” (see “4511 Modbus settings - routing diagram” on page 13). Modbus setup (MODB): With the Modbus RTU interface you can set Modbus address, parity, stop bit, response delay and baud rate.
-
Page 15: 4511 Modbus Settings - Routing Diagram
The Modbus submenu is located somewhere in the menu structure of any host The Modbus submenu is located somewhere in the menu structure device supporting 4511. The actual place is defined for each particular device. (STATUS) of any host device supporting 4511. The actual place is defined for each particular device. - Page 16 ---OK--> "Monitor" 9600 [11] 19.2k 38.4k ---OK--> "Monitor" 57.6k SEAR 115.2k 2400 4800 9600 19.2k 38.4k 57.6k 115.2k Default settings: Baud rate: 19.2 kbps Parity mode: Even Stop bit: 4511 Local Menu.xlsx FSS 13-10-2014 Address: Reponse delay: 0 ms 4511V103-UK...
-
Page 17: Atex/Ukex Installation Drawing
Temperature range -20°C ≤ Ta ≤ +60°C ATEX/UKEX Installation Instructions For safe installation of the 4500 series of products the following must be observed. Hazardous Area Unclassified Area II 3G Ex IIC Modbus RTU Gateway 4511 4511 4511 PLC/DCS HMI/PC 4000/9000 4000/9000 4000/9000 IP 54... - Page 18 General installation instructions Year of manufacture can be taken from the first two digits in the serial number. For safe Ex installation the following must be observed: The device must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
-
Page 19: Iecex Installation Drawing
Temperature range -20°C ≤ Ta ≤ +60°C IECEx Installation Instructions For safe installation of the 4500 series of products the following must be observed. Unclassified Area Hazardous Area Modbus RTU Gateway 4511 4511 4511 PLC/DCS HMI/PC 4000/9000 4000/9000 4000/9000 IP 54... - Page 20 General installation instructions Year of manufacture can be taken from the first two digits in the serial number. For safe Ex installation the following must be observed: The device must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
-
Page 21: Fm Installation Drawing
For safe installation of the 4500 series of products the following must be observed. Hazardous Area Unclassified Area CL I Div2 GP A,B,C,D CL I Zone 2 AEx/Ex ec IIC T5 Gc Modbus RTU Gateway 4511 4511 4511 PLC/DCS HMI/PC 4000/9000 4000/9000 4000/9000... - Page 22 General installation instructions Year of manufacture can be taken from the first two digits in the serial number. For safe Ex installation the following must be observed: The device must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
-
Page 23: Document History
Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 2124 4801 discontinued - references deleted. 2220 ATEX and IECEx approvals updated - Ex na changed to Ex ec. UKEX approval added. 4511V103-UK... - Page 24 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year with a global reach. This means that we are always nearby warranty. With each product you purchase, you receive and know your local markets well.
- Page 25 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
