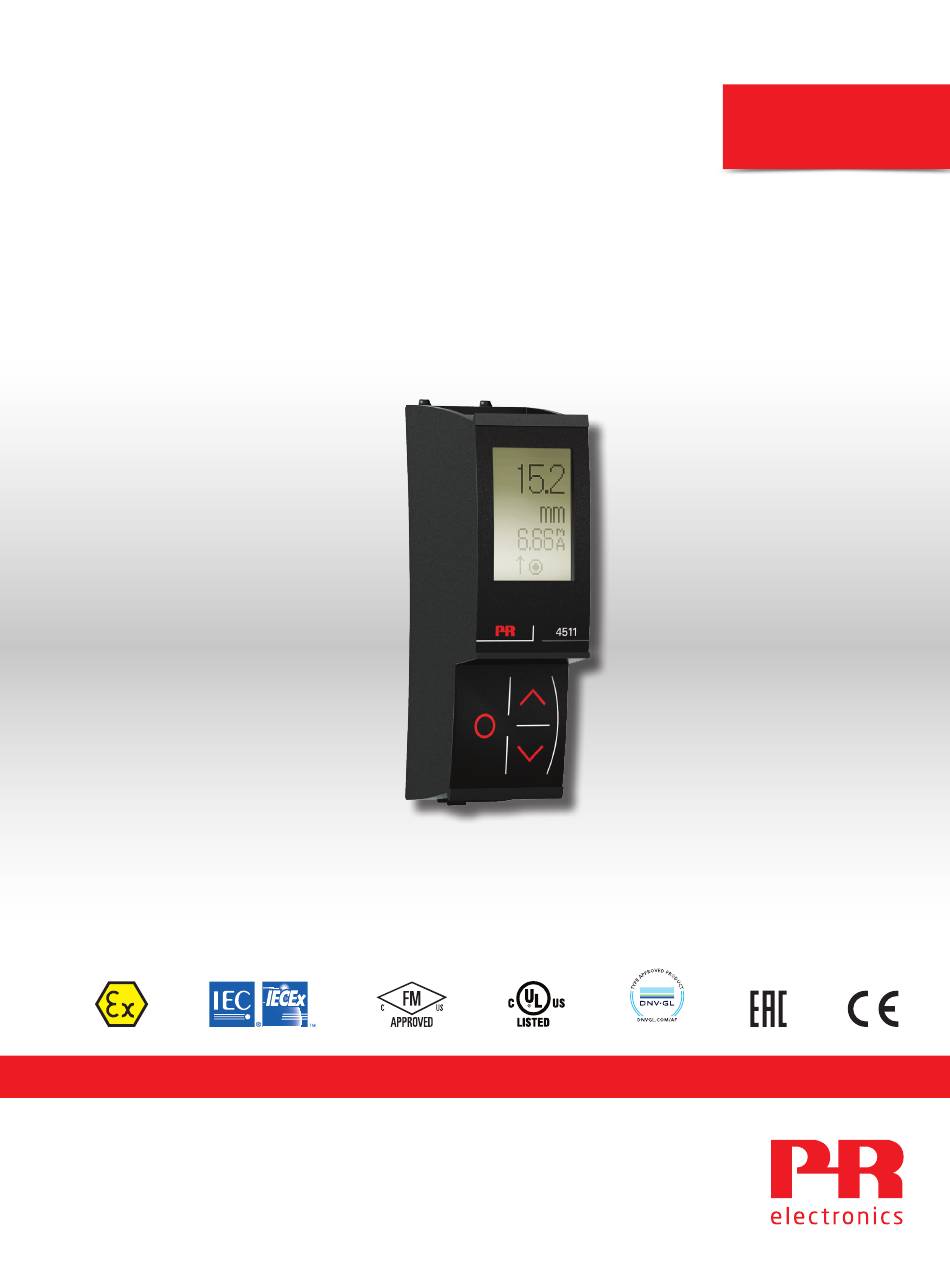

Product Manual
4511
Communication enabler
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 4511V101- UK
From serial no. : 141590 0 01
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4511 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 4511

Summary of Contents for PR electronics 4511

  • Page 1 PERFORMANCE MADE SMARTER Product Manual 4511 Communication enabler T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    4511 Modbus settings - routing diagram ........

  • Page 4: Warning

    General mounting, connection and disconnection of Modbus cable. Troubleshooting the device. VOLTAGE Warning Repair of the device must be done by PR electronics A/S only. CAUTION Symbol identification Triangle with an exclamation mark: Read the manual before installation and commissioning of the device in order to avoid incidents that could lead to personal injury or mechanical damage.

  • Page 5: Safety Instructions

    Only devices which are undamaged and free of moist and dust may be installed. The device may be installed and supplied by PR electronics 4000 and 9000 series only. Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com...

  • Page 6: Applications

    Programmed parameters can be protected by a user-defined password. • When mounted on devices that are installed upside down, a menu item allows the display on the 4511 to be rotated 180o and the up/down buttons to switch function. 4511V101-UK...

  • Page 7: Mounting On A 4000 / 9000 Device

    Mounting on a 4000 / 9000 device 4511 is a detachable display that can be mounted on all system 4000/9000 fronts for programming and signal monitoring. 4511 contains a four line LCD dot display Line 1 can e.g. show the scaled process value.

  • Page 8: Order

    Order Type Description 4511 Communication enabler 4590 Configmate interface 4801 Modbus gateway Electrical specifications Environmental conditions: Specifications range ........-20°C to +60°C Storage temperature .

  • Page 9: 4511 Installation Examples

    4511 installation examples Modbus RTU 4511 4511 4511 PLC/DCS 4000 4000 4000 HMI/PC 9000 9000 9000 Gateway Safe Area Zone 2 / Cl. 1, Div. 2, gr. A-D Modbus RTU Modbus RTU 4511 4511 4511 PLC/DCS 4000 4000 4000 HMI/PC...

  • Page 10: Modbus Basics

    RS485 networks, at speeds up to 115,200 bps. The most common speeds are 9,600 bps and 19,200 bps. Modbus RTU is the most widely used industrial protocol and is supported by the 4511. Modbus RTU: To communicate with a slave device, the master sends a message containing: Device Address - Function Code - Data - Error Check The Device Address is a number from 0 to 247.

  • Page 11: 4511 Modbus Parameter Settings

    Modbus slave addressing range: 1 - 247 (247 = default address) Modbus Parameter Storage: Saved in non-volatile memory in the 4511 device (Factory Default Values are marked in bold) Modbus RTU segment line termination: A 120 Ohm resistor should be installed on both ends of a RS485 Modbus RTU segment loop to prevent signal echoes from corrupting data on the line.

  • Page 12: 4511 Modbus Settings - Routing Diagram

    The gray shaded menus/texts are only shown for guidance, and are not part of the 4511 specific submenu. EVEN The Modbus submenu is located somewhere in the menu structure of any host NONE device supporting 4511. The actual place is defined for each particular device. (STATUS) |----> ------- ------- ------- --------->...
  • Page 13 9600 [11] 19.2k 38.4k OT.DEV ---OK--> "Monitor" 57.6k [13] SEAR 115.2k 2400 4800 9600 19.2k 38.4k 57.6k 115.2k Default settings: Baud rate: 19.2 kbps 4511 Local Menu.xlsx FSS 13-10-2014 Parity mode: Even Stop bit: Address: Reponse delay: 0 ms 4511V101-UK...
  • Page 14 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year with a global reach. This means that we are always nearby warranty. With each product you purchase, you receive and know your local markets well.
  • Page 15 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
