Product manual
5714
Programmable LED indicator
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 5714V10 4 - UK
From serial number : 121496 0 01 (A+B)
|
CO M M U N I C AT I O N I N T E R FA C E S
1310770 01 (C+D)
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5714 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PR electronics 5714 Series

  • Page 1 PERFORMANCE MADE SMARTER Product manual 5714 Programmable LED indicator T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S M U LT I F U N C T I O N A L I S O L AT I O N D I S P L AY...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
  • Page 3: Table Of Contents

    Programmable LED indicator 5714 Table of contents Warning ....................Symbol identification .
  • Page 4: Warning

    VOLTAGE Troubleshooting the device. Repair of the device must be done by PR electronics A/S only. Symbol identification Triangle with an exclamation mark: Read the manual before installation and commissioning of the device in order to avoid incidents that could lead to personal injury or mechanical damage. Warning / demand.
  • Page 5 Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire cross section, protective fuse, and location.
  • Page 6: Front And Back Layout

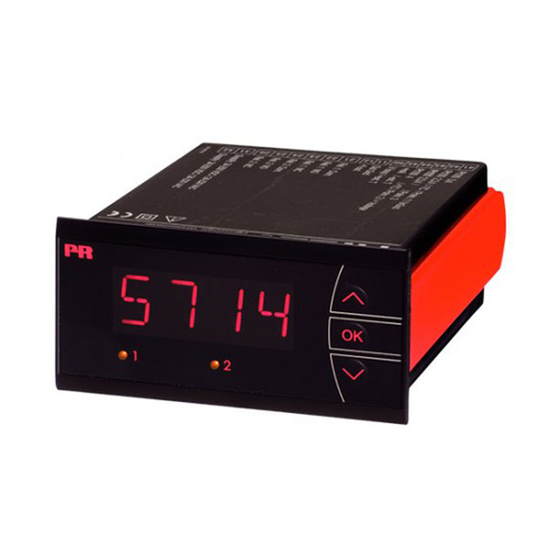

    Front and back layout Picture 1: Front of 5714. Picture 2: Back of 5714. 5714V104-UK...
  • Page 7: Application

    Programmable LED indicator 5714 • 4-digit 14-segment LED indicator • Input for mA, V, potentiometer, Ohm, RTD and TC • 2 relays and analog output • Universal voltage supply • Front key programmable Application • Display for digital readout of current, voltage, resistance, temperature or potentiometer signals. •...
  • Page 8: Applications

    Applications Input signals: Current Poten- RTD & Lin R - connection, wires tio meter Volt age Output signals: 2 change over relays Analog, 0/4...20 mA Supply: 21.6...253 VAC 19.2...300 VDC 5714V104-UK...
  • Page 9: Order

    Order Type Version 5714 Standard 2 relays Analog output Analog output and 2 relays NB! Please order the splash-proof cover seperately. Order No. 8335. Electrical specifications Environmental conditions: Ambient operating temperature range ..... . . -20°C to +60°C Calibration temperature.
  • Page 10 Basic values Input type Basic accuracy Temperature coefficient ≤ ±4 μA ≤ ±0.4 μA / °C Volt ≤ ±20 μV ≤ ±2 μV / °C Pt100 ≤ ±0.2°C ≤ ±0.01°C / °C Linear resistance ≤ ±0.1°Ω ≤ ±0.01 Ω / °C Potentiometer ≤...
  • Page 11 RTD, linear resistance and potentiometer input Input type Min. value Max. value Standard Pt10...Pt1000 -200°C +850°C IEC 60751 Ni50...Ni1000 -60°C +250°C DIN 43760 Cu10...Cu100 -200°C +260°C α = 0.00427 Lin. R 0 Ω 10000 Ω Potentiometer 10 Ω 100 kΩ Input for RTD types: Pt10, Pt20, Pt50, Pt100, Pt200, PT250, Pt300, Pt400, Pt500, Pt1000 Ni50, Ni100, Ni120, Ni1000, Cu10, Cu20, Cu50, Cu100...
  • Page 12: Sensor Error Detection / Sensor Error Detection Outside Range

    Relay outputs Relay function ........Setpoint Hysteresis .
  • Page 13 Outside range readout (IN.LO, IN.HI): If the valid range of the A/D converter or the polynomial is exceeded Input Range Readout Limit IN.LO < -25 mV 0...1 V / 0.2...1 V IN.HI > 1.2 V VOLT IN.LO < -25 mV 0...10 V / 2...10 V IN.HI >...
  • Page 14: Connections

    Connections Inputs: RTD & Lin R, 2-wire RTD & Lin R, 3-wire RTD & Lin R, 4-wire 41 42 43 44 45 46 41 42 43 44 45 46 41 42 43 44 45 46 2-wire transmitter Current 41 42 43 44 45 46 41 42 43 44 45 46 41 42 43 44 45 46 Voltage...
  • Page 15: Block Diagram

    Block diagram 5714V104-UK...
  • Page 16 Power up Fast setpoint adjustment and relay test F. S ET SETP 1 Increase setpoint 2 Decrease setpoint REL1 -1999 3 Save and exit the menu REL2 9999 1 and 2 simultaneously = change relay state 50. 0 /OFF PASS DEC.
  • Page 17: Routing Diagram

    Routing diagram If no keys are activated for 2 minutes the display returns to default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter. 2 Decrease value / choose previous parameter. 3 Accept the chosen parameter and go to the next menu. Hold 3 Back to previous menu / return to menu 1.0 without saving.
  • Page 18: Scrolling Help Text

    Scrolling help text Display in default state xxxx, hardware error: DI.HI SE.BR --> SENSOR WIRE BREAKAGE xxxx --> DISPLAY READOUT HIGH SE.SH --> SENSOR SHORT CIRCUIT REL.U IN.HI --> INPUT OVERRANGE IN.LO --> INPUT UNDERRANGE PERC --> SET RELAY IN PERCENTAGE 9.9.9.9 -->...
  • Page 19 REL1 O.HI --> ENTER RELAY 1 SETUP xxxx --> DISPLAY VALUE FOR OUTPUT HIGH SKIP --> SKIP RELAY 1 SETUP O.ERR --> RELAY 1 DISABLED 23 mA --> NAMUR NE43 UPSCALE AT ERROR SETP 3,5 mA --> NAMUR NE43 DOWNSCALE AT ERROR xxxx -->...
  • Page 20: Configuration / Operating The Function Keys

    Configuration / operating the function keys Documentation for routing diagram. In general When configuring the display you are guided through all parameters, you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in the display, this starts after 5 seconds if no key has been activated.
  • Page 21: Graphic Depiction Of The Relay Function Setpoint

    Graphic depiction of the relay function setpoint Relay units Relay units Hysteresis = 10 Setpoint = 50 Setpoint = 50 Hysteresis = 10 Off N.O. On N.O. Off N.O. Off N.O. On N.O. Off N.O. On N.C. On N.C. On N.C. On N.C.
  • Page 22: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 19/33 Relay data updated, graph with resistive loads inserted. EU-RO marine approval added. 5714V104-UK...
